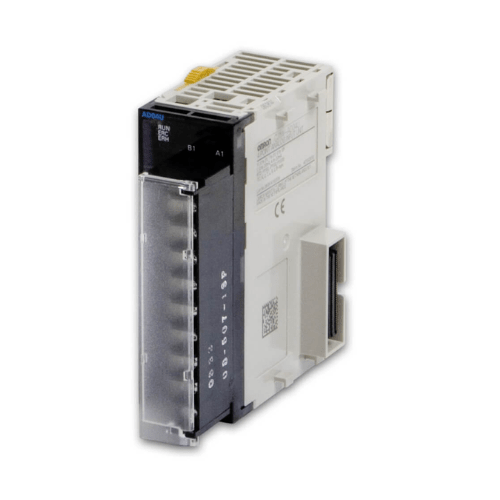

Omron CJ1W-AD04U | 4-Channel Analog Input Module

Omron CJ1W-AD04U | 4-Channel Analog Input Module

Overview:

The Omron CJ1W-AD04U is a 4-channel analog input module for CJ-series PLCs, offering high-precision analog signal acquisition from sensors and transducers. Designed for industrial automation and process control, this module supports multiple voltage and current inputs with high resolution for accurate data measurement and real-time monitoring.

Key Features:

• 4 Analog Input Channels – Supports various input signal types.
• High-Resolution Data Conversion – Ensures precise measurement and control.
• Voltage & Current Input Support – Accepts 1-5V, 0-10V, ±10V, and 4-20mA signals.
• Fast Sampling Rate – Suitable for real-time monitoring applications.
• Seamless PLC Integration – Compatible with Omron CJ-series PLCs.
• Compact & Durable Design – Space-efficient for control panel installations.

Technical Specifications:

• Model: CJ1W-AD04U
• Number of Channels: 4
• Input Signal Types:
  • Voltage: 1-5V, 0-10V, ±10V
  • Current: 4-20mA
• Resolution: 16-bit
• Conversion Time: 1 ms per channel
• Accuracy: ±0.05% full scale
• Operating Voltage: Supplied via CJ-series PLC backplane
• Mounting Type: DIN rail (CJ-series PLC rack)

Ambient Conditions:

• Operating Temperature: 0 to 55°C
• Storage Temperature: -20 to 75°C
• Humidity: 10% to 90% (non-condensing)
• Vibration Resistance: 10-57 Hz, 0.075 mm amplitude

Applications:

• Industrial Automation – Enables real-time data monitoring and control.
• Process Control Systems – Facilitates precise analog input measurement.
• SCADA & IoT Integration – Collects accurate sensor data for automation.
• Temperature & Pressure Monitoring – Ideal for industrial and laboratory environments.

Why Choose the Omron CJ1W-AD04U?

The Omron CJ1W-AD04U offers high-accuracy analog input acquisition, making it a reliable choice for industrial automation and process control systems. With 16-bit resolution, multiple input signal support, and fast response times, this module ensures precise and efficient performance in demanding applications.
