Omron CJ1W-AD041-V1 | Analog Input Unit

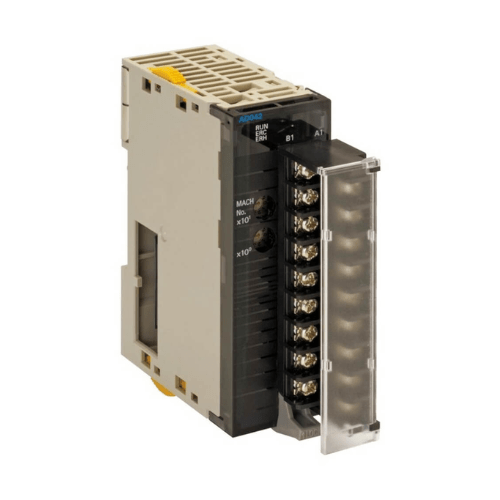

Omron CJ1W-AD041-V1 | 4-Channel Analog Input Unit for CJ Series PLCs

Overview

The Omron CJ1W-AD041-V1 is a 4-channel analog input unit designed for the CJ Series PLCs, enabling accurate conversion of analog signals into digital data for precise process control. Supporting multiple input ranges for both voltage and current, it ensures flexibility across various industrial applications.

Key Features

• Analog Inputs: 4 channels for voltage and current signals

• Input Ranges:

  • Voltage: 1–5 V, 0–5 V, 0–10 V, -10–10 V

  • Current: 4–20 mA

• Resolution:

  • 1:4000 (1 ms/point conversion)

  • 1:8000 (0.25 ms/point conversion)

• Accuracy: ±0.2% of full scale at 25°C

• Isolation: Photocoupler isolation between I/O and PLC signals

• Terminal Block: 18-point detachable with M3 screws

• Compact Design: 31 mm (W) × 90 mm (H) × 65 mm (D)

• Power Consumption: 420 mA max at 5 VDC

• Weight: Approximately 140 g

• Certifications: CE, cULus, Lloyd, NK

Technical Specifications

• Model Number: CJ1W-AD041-V1

• Series: CJ Series

• Number of Analog Inputs: 4

• Input Signal Ranges:

  • Voltage: 1–5 V, 0–5 V, 0–10 V, -10–10 V

  • Current: 4–20 mA

• Maximum Rated Input:

  • Voltage: ±15 V

  • Current: ±30 mA

• Input Impedance:

  • Voltage Input: ≥1 MΩ

  • Current Input: 250 Ω

• Resolution:

  • 1:4000 (1 ms/point conversion)

  • 1:8000 (0.25 ms/point conversion)

• Accuracy at 25°C:

  • Voltage Input: ±0.2% of full scale

  • Current Input: ±0.4% of full scale

• A/D Conversion Period:

  • 1 ms/point (1:4000 resolution)

  • 0.25 ms/point (1:8000 resolution)

• Isolation: Photocoupler between I/O and PLC signals (no isolation between channels)

• External Terminals: 18-point detachable terminal block (M3 screws)

• Power Consumption: 420 mA max at 5 VDC

• Dimensions: 31 mm (W) × 90 mm (H) × 65 mm (D)

• Weight: Approximately 140 g

• Operating Temperature: 0°C to +55°C

• Storage Temperature: -20°C to +75°C

• Operating Humidity: 10% to 90% (non-condensing)

• Certifications: CE, cULus, Lloyd, NK

Applications

• Process Control: Accurate monitoring of analog signals in chemical and manufacturing processes

• Machine Automation: Integration of analog sensors for temperature, pressure, and flow measurements

• Data Acquisition: High-resolution data collection for quality control and analysis

• Energy Management: Monitoring voltage and current inputs for efficient energy usage

Why Choose Omron CJ1W-AD041-V1?

• High Precision: Offers high-resolution conversion for accurate analog data processing

• Flexible Input Ranges: Supports multiple voltage and current input signals

• Reliable Isolation: Photocoupler isolation ensures signal integrity and protection

• Compact and Modular: Space-saving design compatible with CJ Series PLCs for scalable automation solutions

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron CJ Series PLCs, I/O modules, and accessories to complete your automation system.
