Control Techniques SP3403

Control Techniques SP3403

Overview

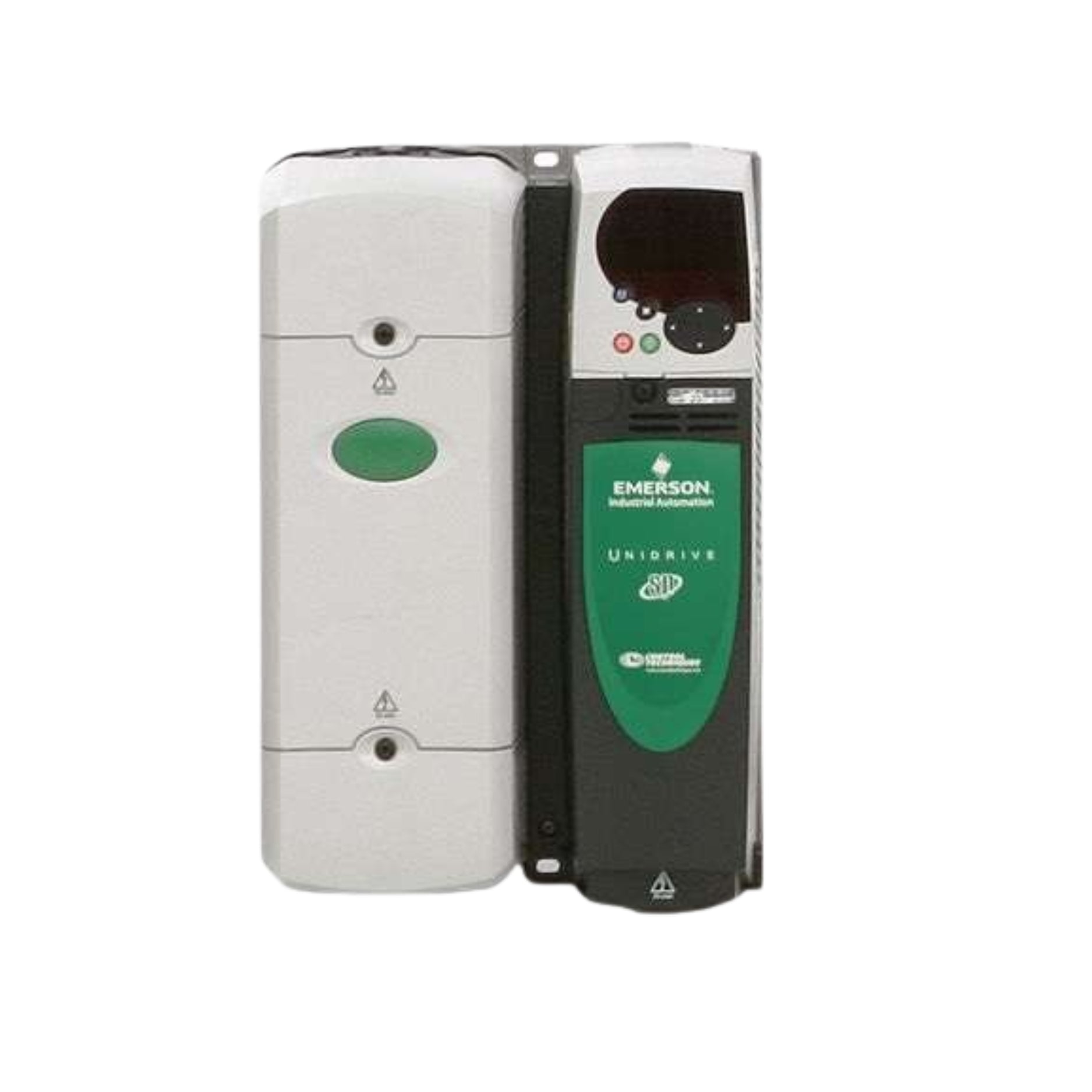

The Control Techniques SP3403 is a high-performance servo and variable frequency drive from the Unidrive SP family. Designed for dynamic motion control, it operates at 380–480 V AC, 3‑phase, and supports motors up to 25 HP (18.5 kW). With 33.8 A continuous and 80.5 A peak output current, this drive delivers reliable performance for precision applications across multiple industrial sectors.

Key Features

• Power Rating: 25 HP / 18.5 kW

• Continuous Output Current: 33.8 A

• Peak Output Current: 80.5 A

• Input Voltage: 3‑phase, 380–480 V AC, 50/60 Hz

• Control Modes:

  • Open-loop vector

  • Closed-loop vector

  • Servo control

  • Regenerative braking (with compatible module)

• Motor Compatibility: Asynchronous and synchronous motors

• Form Factor: Unidrive SP chassis format

• Enclosure: IP20

• Mounting: Wall or panel

• Keypad: Not included (optional SM-Keypad available)

Applications

• Robotics and motion systems

• Precision packaging equipment

• Automated manufacturing lines

• High-performance conveyors

• Industrial servo control with high torque demands

Why Choose the SP3403

• Excellent overload capacity for demanding loads

• Precise control over speed and torque

• Multi-mode operation with regenerative options

• Part of the proven Unidrive SP platform

• Ideal for both retrofit and new installations

Order Now

The Control Techniques SP3403 is in stock and ready for worldwide shipping.

Discover More Solutions
For additional drive options, explore the Control Techniques Unidrive SP Modular category.

You can also browse the full range of advanced motion control and drive technologies in the Nidec (Control Techniques) main category.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
