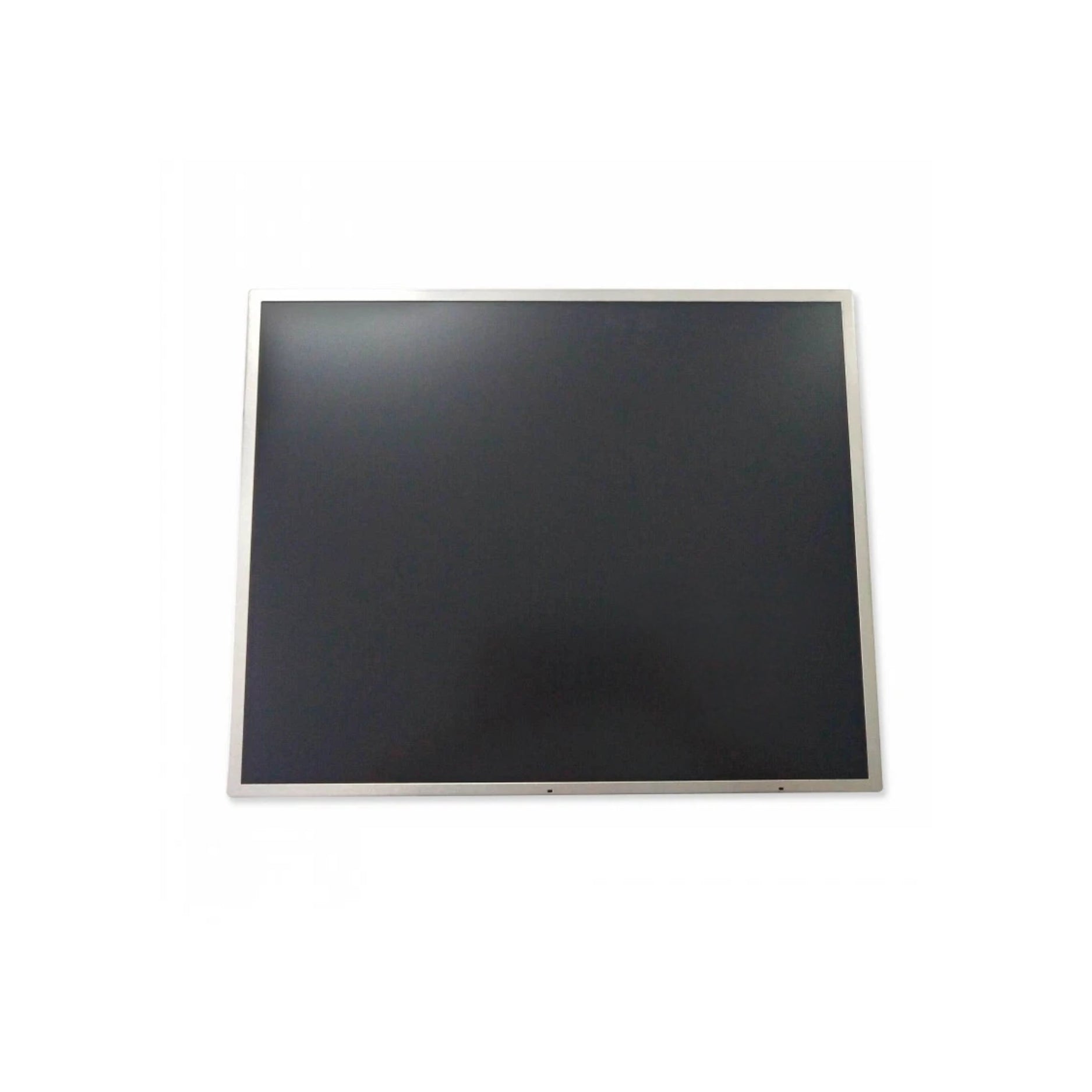

NEC NL128102BC28-09

NEC NL128102BC28-09

Overview

The NEC NL128102BC28-09 is a 12.1-inch TFT LCD module designed for industrial, embedded, and HMI applications. Featuring 1280×800 (WXGA) resolution and an LED backlight, it provides sharp images, wide viewing angles, and long-lasting performance suitable for demanding professional environments.

Key Features

• 12.1-inch TFT LCD panel

• WXGA resolution: 1280×800

• LED backlight for energy efficiency and consistent brightness

• High contrast and excellent color reproduction

• Wide viewing angles for optimal visibility

• Designed for rugged industrial and embedded environments

Technical Specifications

• NEC Code: NL128102BC28-09

• Display Size: 12.1"

• Resolution: 1280×800 (WXGA)

• Display Type: TFT LCD

• Backlight: LED

• Brightness: 400 cd/m² (typical)

• Contrast Ratio: 700:1 (typical)

• Viewing Angle: 160° horizontal / 140° vertical

• Interface: LVDS

• Operating Temperature: –20 °C to +70 °C

• Storage Temperature: –30 °C to +80 °C

Applications

• Industrial control and automation

• Embedded systems and computing devices

• Human-Machine Interfaces (HMIs)

• Medical and diagnostic equipment

• Instrumentation and monitoring displays

Why Choose NEC NL128102BC28-09?

• NEC’s proven TFT technology ensures superior visual quality

• LED backlight offers energy efficiency and long operational life

• Excellent visibility with wide viewing angles

• Built for reliability in industrial and embedded systems

Order Now

Enhance your industrial or embedded applications with the NEC NL128102BC28-09 — a 12.1-inch TFT LCD display delivering clarity, durability, and dependable performance.

Return to NEC Displays

Return to TFT Display Modules

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
