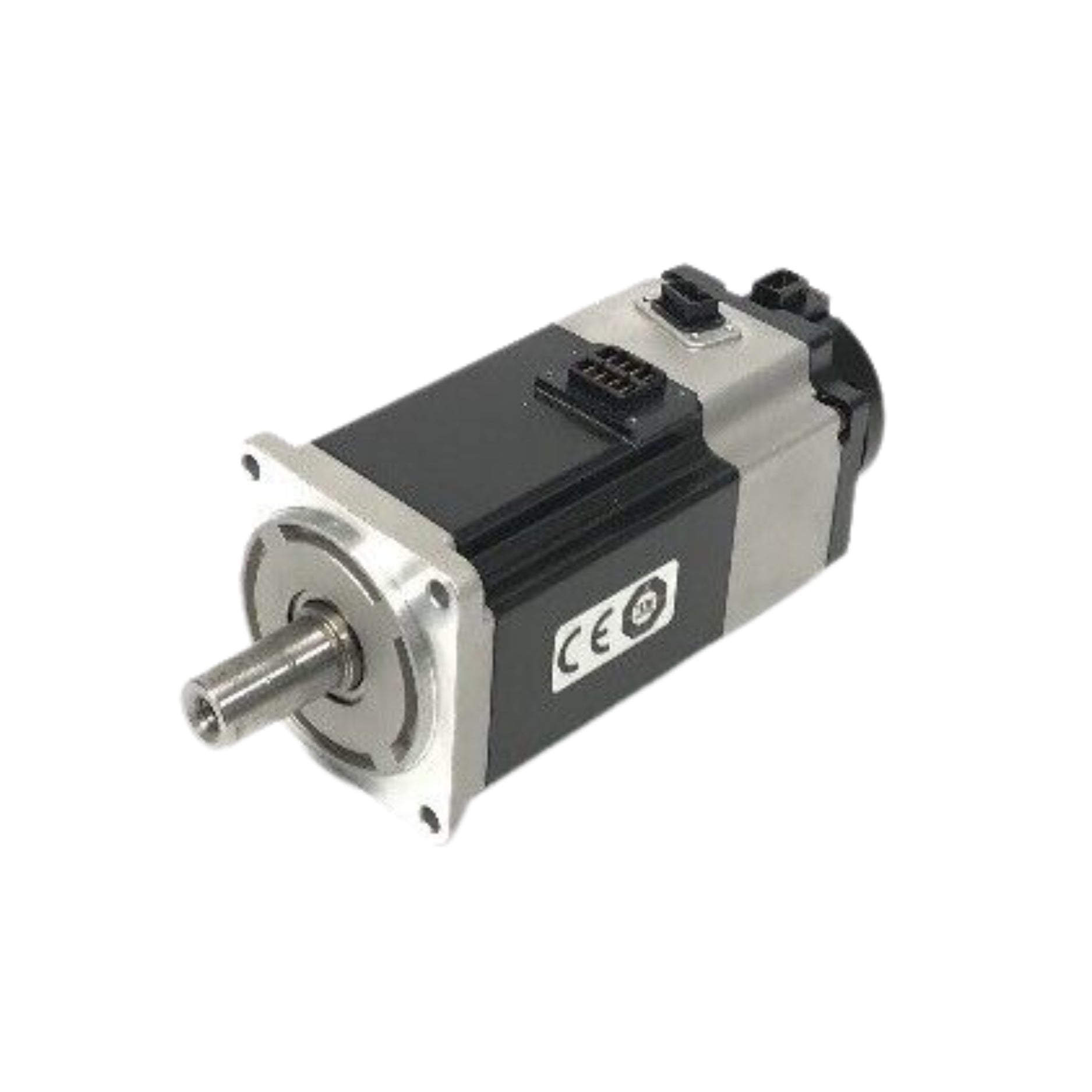

Omron R88M-1M40030T-BS2 | 400W AC Servo Motor

Omron R88M-1M40030T-BS2 | High-Performance 400W AC Servo Motor for Precision Motion Control

Overview

The Omron R88M-1M40030T-BS2 is a high-performance AC servo motor designed for precision motion control applications. With a rated output of 400 W, rated speed of 3000 RPM, and rated torque of 1.27 Nm, this motor delivers reliable and efficient performance. Equipped with a 23-bit absolute encoder and an integrated brake, it ensures accurate positioning and enhanced safety in various industrial automation systems.

Key Features

• Rated Output: 400 W, suitable for medium-duty applications requiring precise control.

• Rated Speed: 3000 RPM, providing high-speed operation for dynamic motion tasks.

• Rated Torque: 1.27 Nm, delivering consistent torque for reliable performance.

• Peak Torque: 4.5 Nm, accommodating temporary overload conditions without compromising efficiency.

• Encoder Type: 23-bit absolute encoder without battery, ensuring high-resolution feedback for accurate positioning.

• Integrated Brake: Enhances safety by holding the load in position when the motor is not powered.

• Flange Size: 60 mm square, facilitating compatibility with standard mounting configurations.

• Shaft Specifications: 14 mm diameter with key and tap, ensuring secure and reliable mechanical coupling.

• Supply Voltage: 230 VAC, compatible with common industrial power systems.

Technical Specifications

• Model Number: R88M-1M40030T-BS2

• Rated Output: 400 W

• Rated Speed: 3000 RPM

• Rated Torque: 1.27 Nm

• Peak Torque: 4.5 Nm

• Encoder Type: Absolute without battery

• Encoder Resolution: 23-bit

• Brake: Integrated

• Flange Size: 60 mm square

• Shaft Diameter: 14 mm

• Shaft Features: With key and tap

• Supply Voltage: 230 VAC

• Product Weight: Approximately 1.9 kg

Applications

• Robotics: Provides precise control for robotic arms and automated guided vehicles (AGVs).

• Packaging Machinery: Ensures accurate and consistent movement in packaging operations.

• CNC Machinery: Delivers high-speed and precise control for milling, turning, and other CNC processes.

• Material Handling: Facilitates smooth and efficient movement of materials in conveyor systems.

• Printing Equipment: Supports precise motion control for high-quality printing applications.

Why Choose Omron R88M-1M40030T-BS2?

• Precision and Accuracy: High-resolution 23-bit absolute encoder ensures exact positioning and repeatability.

• Integrated Safety: Built-in brake enhances safety by securely holding the load when the motor is not powered.

• Robust Performance: Capable of handling peak torque up to 4.5 Nm, accommodating dynamic load changes.

• Compact Design: 60 mm flange size and 14 mm shaft diameter allow for easy integration into existing systems.

• Reliable Brand: Omron's reputation for quality and innovation ensures dependable performance and support.

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron servo drives, cables, and other automation components to complete your system setup.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
