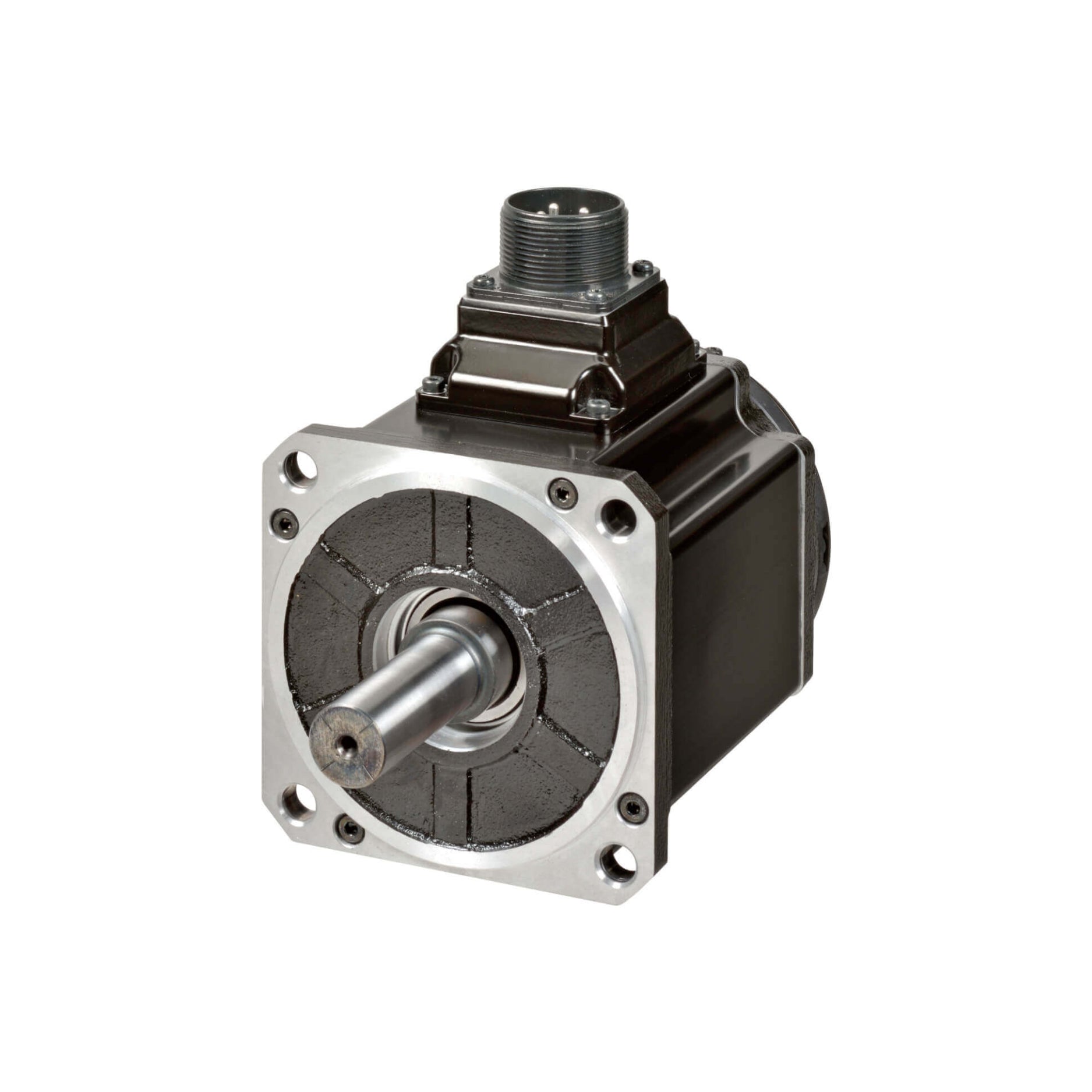

Omron R88M-1L1K030C-S2 | 1 kW Servo Motor

Omron R88M-1L1K030C-S2 | High-Precision 1S-Series Servo Motor for Demanding Motion Applications

Overview

The Omron R88M-1L1K030C-S2 is a 1 kW servo motor from the 1S-Series, engineered for high-performance motion control. It delivers up to 3000 rpm and features a 23-bit absolute encoder, providing exceptional accuracy and responsiveness in automated systems. This model is designed for seamless integration with Omron 1S servo drives, ensuring optimal performance in demanding applications.

Key Features

• Rated Output Power: 1 kW

• Rated Speed: 3000 rpm

• Maximum Speed: Typically up to 6000 rpm (based on series standards)

• Encoder: 23-bit high-resolution absolute encoder for precise positioning

• Design: Compact and lightweight, ideal for limited space installations

• Flange Size: Standard size compatible with many mechanical interfaces

• Safety: Encoder supports functional safety feedback (depending on drive compatibility)

Technical Specifications

• Model Number: R88M-1L1K030C-S2

• Power Rating: 1 kW

• Rated Torque: Approx. 3.18 Nm

• Peak Torque: Typically 300% of rated (based on Omron standards)

• Rated Speed: 3000 rpm

• Max Speed: ~6000 rpm

• Encoder Type: 23-bit absolute

• Shaft Type: Straight with key (C-type)

• Cooling Method: Natural cooling

• Insulation Class: F

• Protection Class: IP65 (excluding shaft)

• Power Connection: Through standard servo connectors

• Weight: Approx. 3.5–4.5 kg (estimated for this power range)

Applications

• Robotics: Precise joint and axis control

• Packaging Machinery: High-speed operations with accurate positioning

• CNC Systems: Tight tolerance motion in multi-axis systems

• Material Handling: Automated pick-and-place or transport systems

• Textile and Printing Machines: Smooth, consistent motion and synchronization

Why Choose Omron R88M-1L1K030C-S2?

• High Accuracy: 23-bit encoder for ultra-fine resolution feedback

• Fast Response: Supports high-speed, high-torque applications

• Reliable Build: Designed for long service life and minimal maintenance

• Seamless Integration: Fully compatible with Omron 1S-series servo drives

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
