Mitsubishi CM75DY-24NF

Mitsubishi CM75DY-24NF

Overview

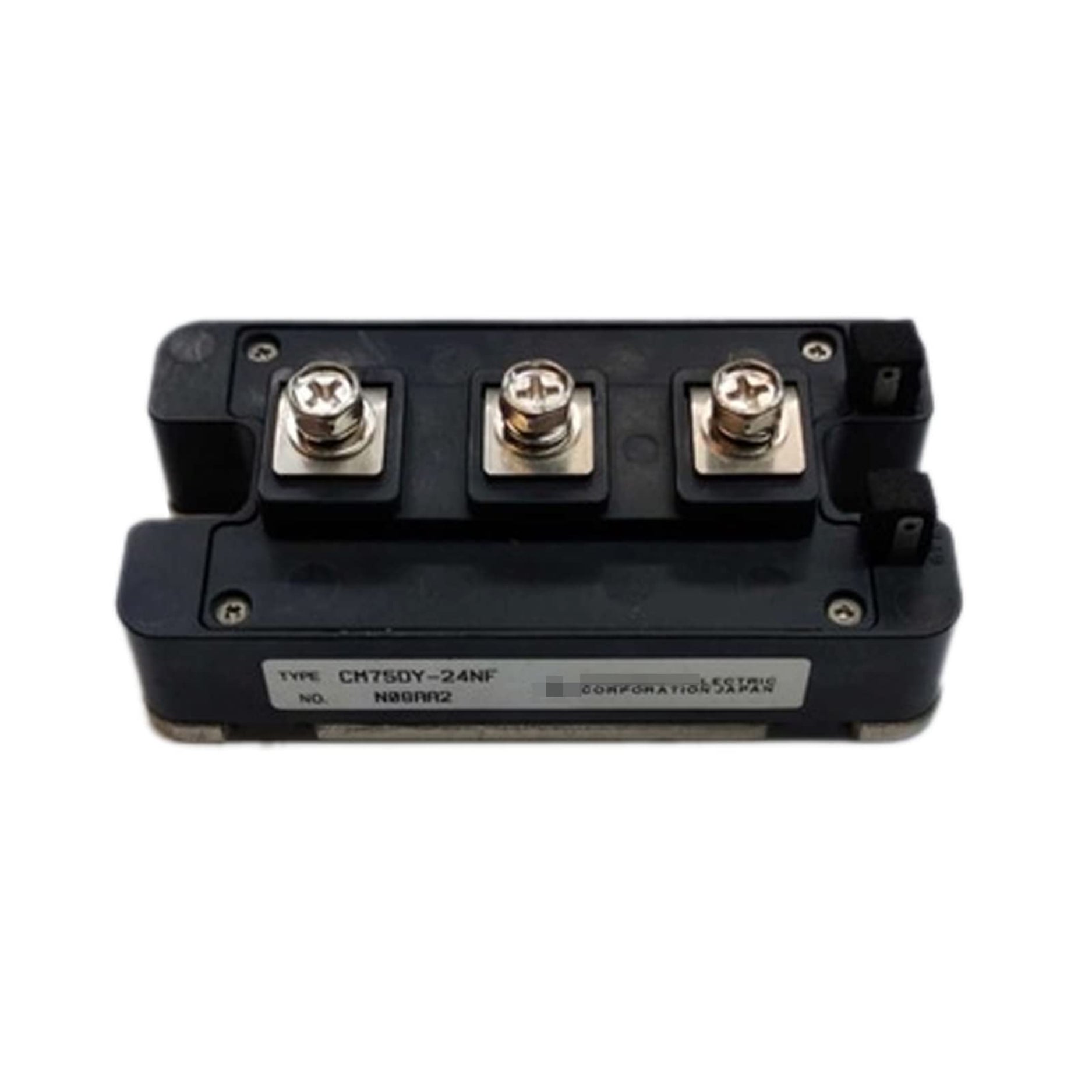

The Mitsubishi CM75DY-24NF is a dual IGBT module rated at 75 A and 1200 V, ideal for compact and efficient power conversion systems. With trench-gate IGBT technology and integrated free-wheeling diodes, this module provides excellent switching performance and thermal reliability. Its insulated baseplate and rugged design ensure long-term durability in industrial environments.

Key Features

• Dual IGBT half-bridge configuration

• Collector current: 75 A

• Collector-emitter voltage: 1200 V

• Trench-gate structure for low switching losses

• Integrated fast-recovery diodes

• Insulated baseplate for effective heat dissipation

• Compact chassis mount housing

• High-performance in a compact footprint

Technical Specifications

• Part Number: CM75DY-24NF

• Configuration: Dual IGBT with diodes

• Collector Current: 75 A

• Collector-Emitter Voltage: 1200 V

• VCE(sat): ~2.0 V @ rated current

• Gate-Emitter Voltage: ±20 V

• Thermal Resistance (Junction-Case): ~0.28 °C/W

• Switching Speed: Fast

• Mounting Type: Chassis mount (isolated base)

• Operating Temperature: –40 °C to +150 °C

• Package Type: Power module

• Weight: Approx. 200–300 g

Applications

• Inverter systems and power supplies

• Motor drives and robotics

• Industrial automation equipment

• Renewable energy converters

• Compact power switching solutions

Why Choose the CM75DY-24NF

• Efficient 75 A switching in a compact design

• Mitsubishi's reliable trench-gate IGBT technology

• Built for long-term thermal and electrical performance

• Easy to integrate with standard industrial systems

• Ideal for mid-power industrial applications

Order Now

The Mitsubishi CM75DY-24NF IGBT module is available and ships worldwide.

This product is part of our Mitsubishi IGBT Modules collection, designed for high-efficiency power conversion and reliable performance in industrial automation. Browse the complete range of Mitsubishi IGBT Modules.

Explore the Power Electronics Components main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
