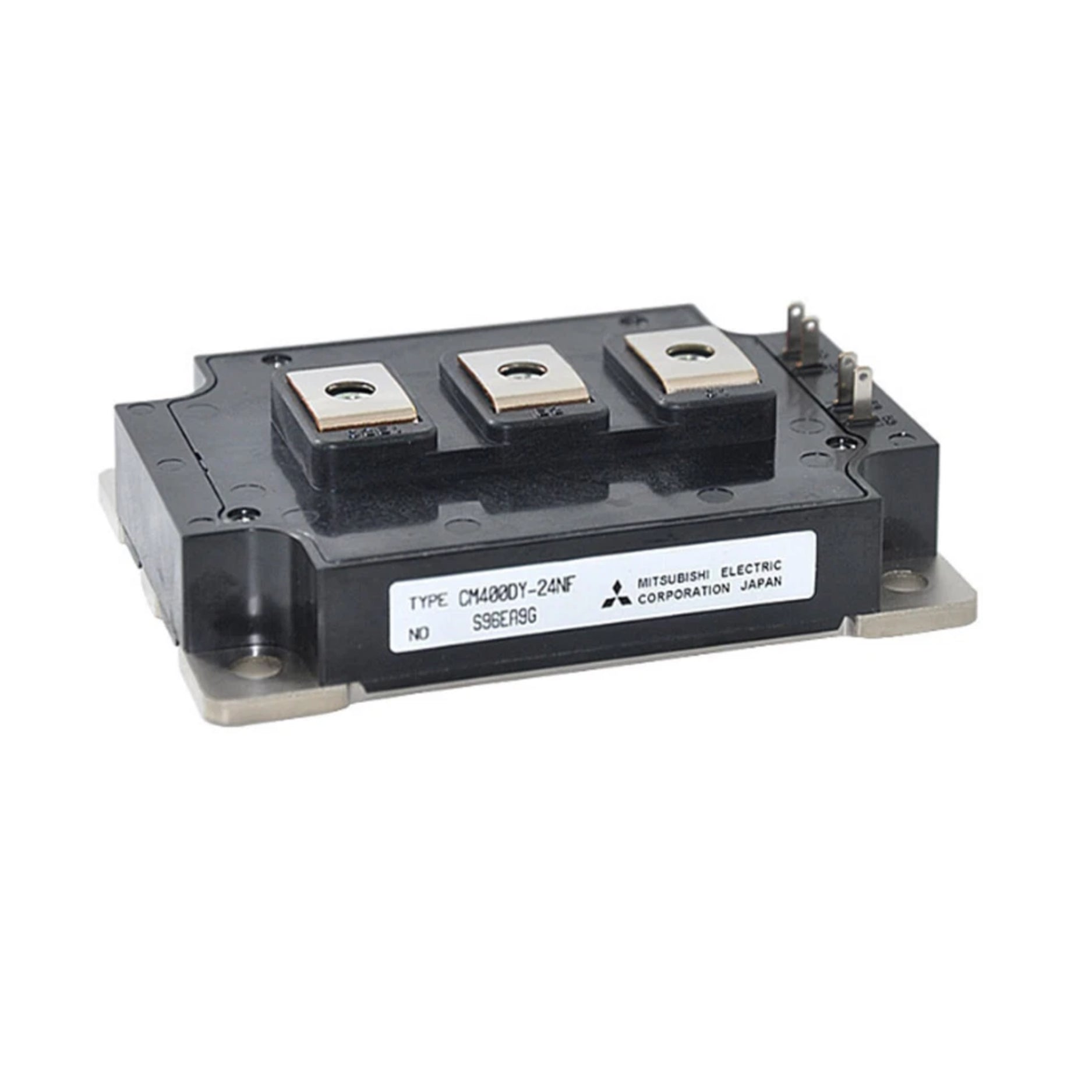

Mitsubishi CM400DY-24NF

Mitsubishi CM400DY-24NF

Overview

The Mitsubishi CM400DY-24NF is a high-current dual IGBT module designed for industrial applications requiring 400 A and 1200 V switching capability. With a trench-gate structure and integrated free-wheeling diodes, it ensures efficient, low-loss switching, making it ideal for inverters, motor drives, and renewable energy systems.

Key Features

• Dual IGBT configuration

• Rated at 400 A, 1200 V

• Trench gate design for low saturation voltage

• Integrated fast recovery diodes

• Insulated baseplate for simplified cooling

• High-speed switching

• Chassis mount for easy installation

• Rugged, industrial-grade housing

Technical Specifications

• Model: CM400DY-24NF

• Collector Current (Ic): 400 A (continuous)

• Collector-Emitter Voltage (Vces): 1200 V

• Vce(sat): Approx. 2.2 V @ 400 A

• Power Dissipation: ~1350 W

• Gate-Emitter Voltage: ±20 V

• Input Capacitance (Cies): ~150 nF

• Switching Speed: Fast rise and fall times

• Mounting: Chassis

• Operating Temperature: –40 °C to +150 °C

• Package: Module with insulated base

Applications

• High-power inverters

• AC motor drives

• UPS and backup power

• Induction heating systems

• Renewable energy converters (solar/wind)

Why Choose the CM400DY-24NF

• High current and voltage in one compact module

• Dual IGBTs reduce system complexity

• Low switching losses increase efficiency

• Mitsubishi quality ensures reliability under load

• Simple chassis mounting with thermal isolation

Order Now

The Mitsubishi CM400DY-24NF IGBT module is available and ships worldwide.

This product is part of our Mitsubishi IGBT Modules collection, designed for high-efficiency power conversion and reliable performance in industrial automation. Browse the complete range of Mitsubishi IGBT Modules.

Explore the Power Electronics Components main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
