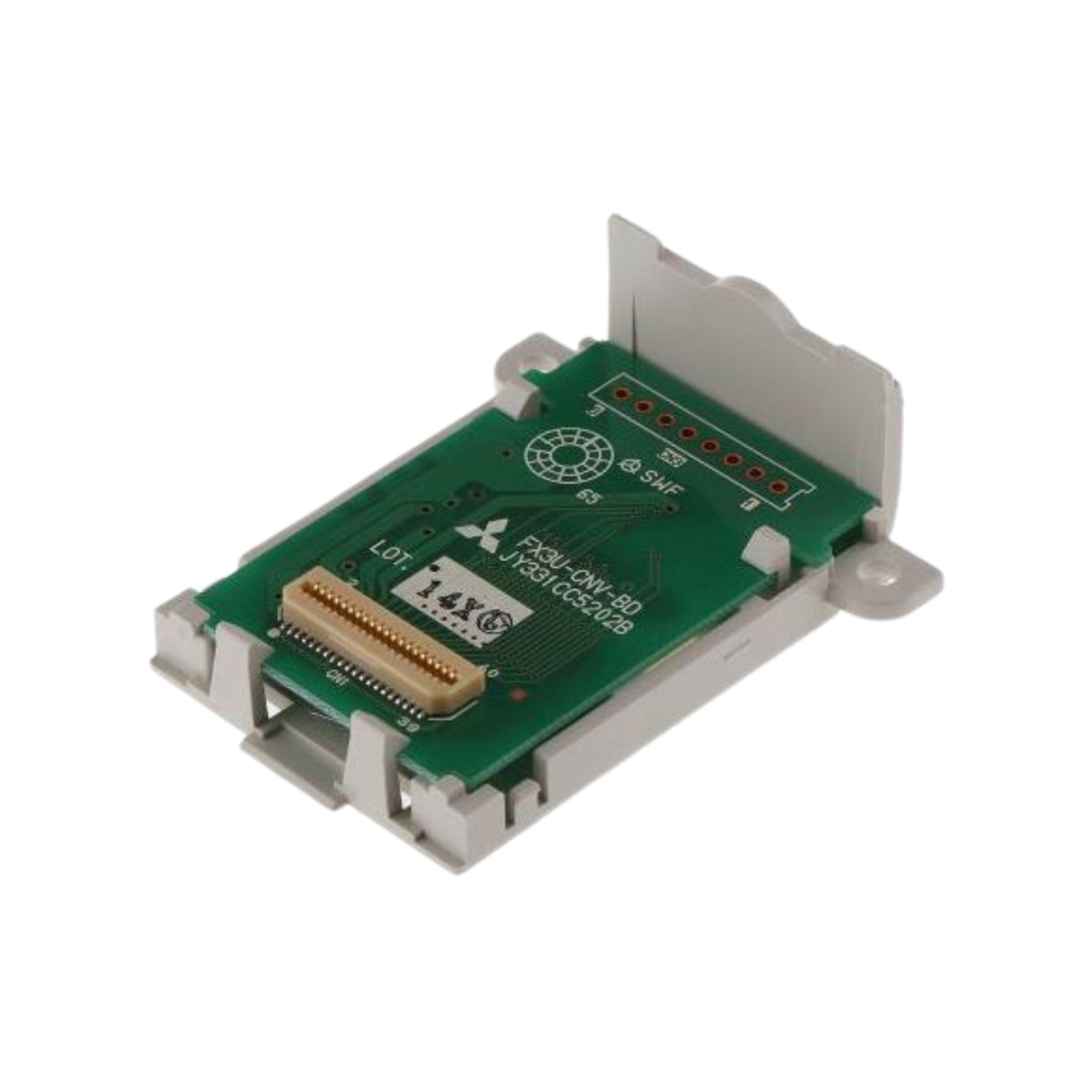

Mitsubishi FX3U-CNV-BD

Mitsubishi FX3U-CNV-BD | Expansion Board for Special Adapters in MELSEC-F FX3U Series PLCs

Overview

The Mitsubishi FX3U-CNV-BD is an expansion board designed to facilitate the connection of analog and communication special adapters to the main unit of FX3U and FX3UC-32MT-LT(-2) programmable logic controllers (PLCs). This board allows for the integration of up to six special adapters—four for analog functions and two for communication—enhancing the flexibility and scalability of your automation system.

Key Features

• Adapter Connectivity: Supports connection of up to 4 analog special adapters and 2 communication special adapters.

• Compatibility: Designed for FX3U Series PLCs (Version 2.20 or later) and FX3UC-32MT-LT(-2) (Version 1.00 or later).

• Installation: Easily mounts to the left side of the PLC main unit using provided M3 tapping screws.

• Design: Compact and lightweight, ensuring minimal impact on overall system size.

• Compliance: RoHS compliant, adhering to environmental and safety standards.

Technical Specifications

• Model: FX3U-CNV-BD

• Applicable PLCs: FX3U Series, FX3UC-32MT-LT(-2)

• Dimensions (W × H × D): 19.6 × 46.1 × 53.5 mm

• Weight: Approximately 10g

• Mounting Method: Direct attachment to PLC main unit

• Operating Temperature: 0°C to 55°C

• Storage Temperature: -25°C to 75°C

• Certifications: CE, UL, cUL, UKCA, EAC

• Environmental Compliance: RoHS compliant

Applications

• Integration of analog input/output modules for process control

• Addition of communication modules for network connectivity

• Expansion of PLC capabilities in industrial automation systems

• Customization of control systems to meet specific application requirements

Why Choose the FX3U-CNV-BD?

• Enhanced Flexibility: Allows for the addition of specialized modules to tailor the PLC system to specific needs.

• Space-Efficient: Compact design ensures efficient use of control panel space.

• Ease of Installation: Simple mounting process reduces setup time and effort.

• Reliable Performance: Maintains consistent operation in various industrial environments.

• Compliance Assurance: Meets international standards for safety and environmental regulations.

Order Now

The Mitsubishi FX3U-CNV-BD expansion board is available for global shipping.
