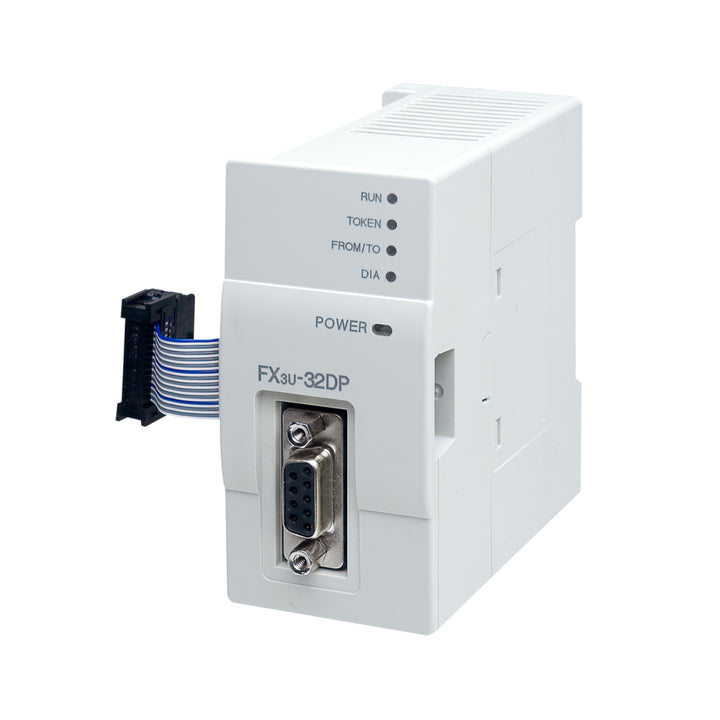

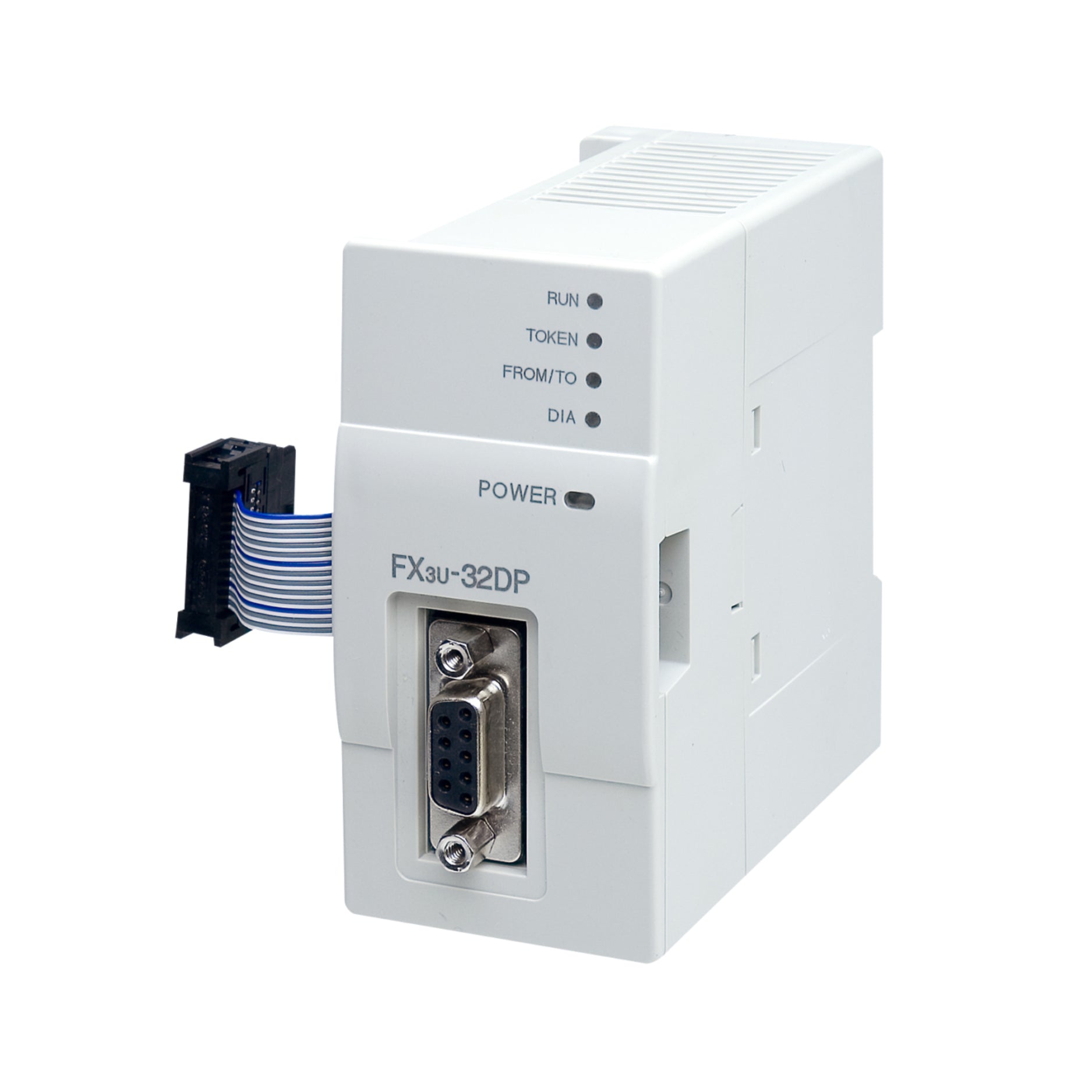

Mitsubishi FX3U-32DP

Mitsubishi FX3U-32DP

Overview

The Mitsubishi FX3U-32DP is a Profibus-DP communication module designed to connect FX3U series PLCs to Profibus networks. It enables either master or slave functionality, allowing seamless integration of Mitsubishi PLCs with a wide range of Profibus-compatible devices in distributed control systems.

Key Features

• Supports Profibus-DP communication

• Can be configured as master or slave

• Easy integration with FX3U/FX3UC PLC series

• High-speed communication up to 12 Mbps

• 32 input/output words (64 bytes)

• DIN rail or direct mount to base unit

• DIP switches for address configuration

• LED indicators for status and diagnostics

Technical Specifications

• Model Number: FX3U-32DP

• Interface: Profibus-DP (IEC 61158 compliant)

• Max Baud Rate: 12 Mbps

• Max I/O Words: 32 (input + output)

• Power Supply: 5 V DC (from PLC base)

• Mounting: Direct on FX3U base or DIN rail

• Operating Temp: 0 °C to +55 °C

• Protocol Support: DP-V0

• Diagnostic Functions: Communication, status LEDs

• Certifications: CE, UL, cUL, RoHS

Applications

• Connecting FX3U PLCs to Profibus networks

• Integration with Siemens and other Profibus systems

• Factory automation and distributed I/O systems

• High-speed process control and field communication

• OEM systems requiring multi-brand compatibility

Why Choose the FX3U-32DP

• Enables powerful and flexible network control

• Seamlessly links Mitsubishi PLCs to Profibus systems

• Compact design fits into tight control cabinets

• Easy to install and configure

• Proven reliability for industrial automation

Order Now

The Mitsubishi FX3U-32DP Profibus-DP module is available and ships worldwide.
