Mitsubishi QX80

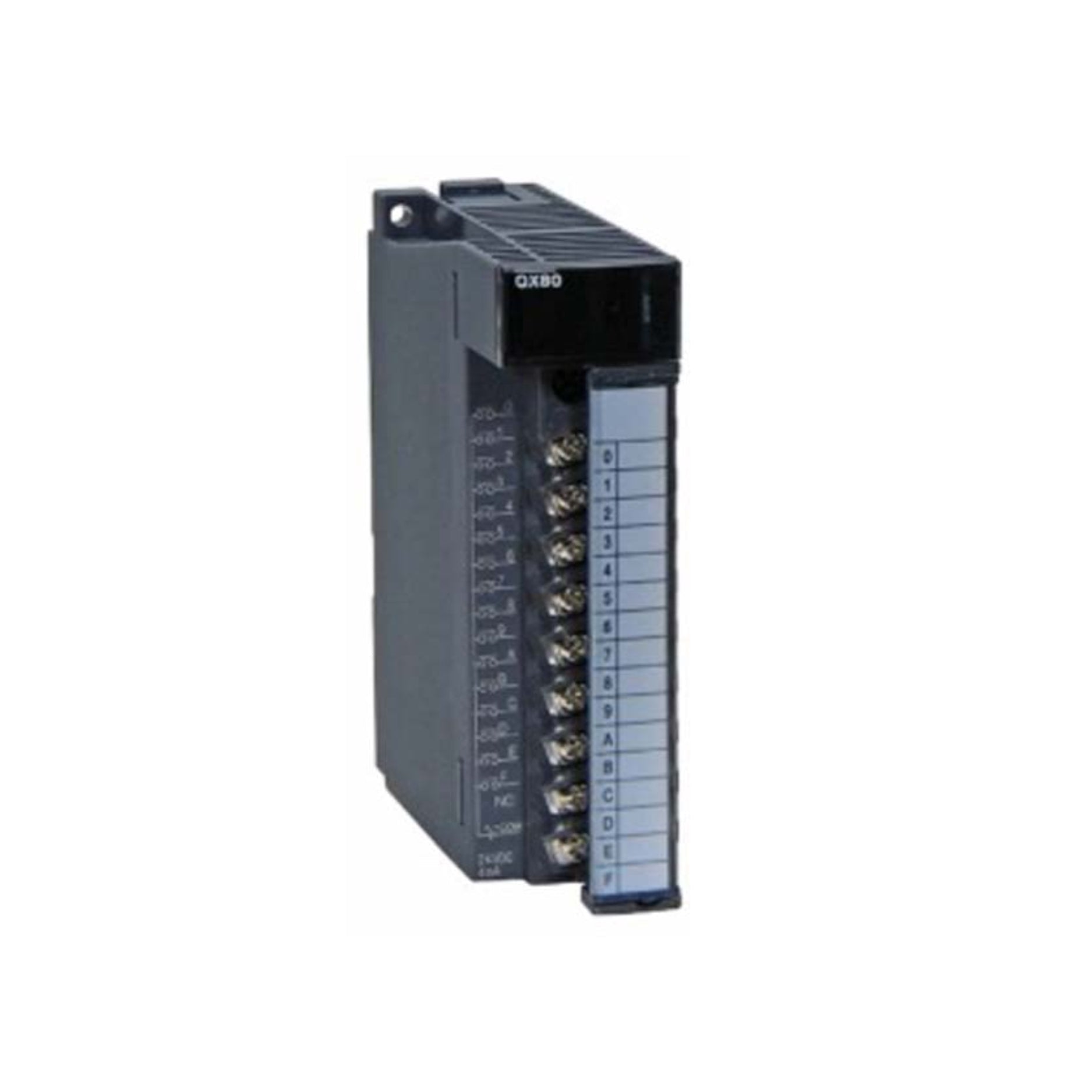

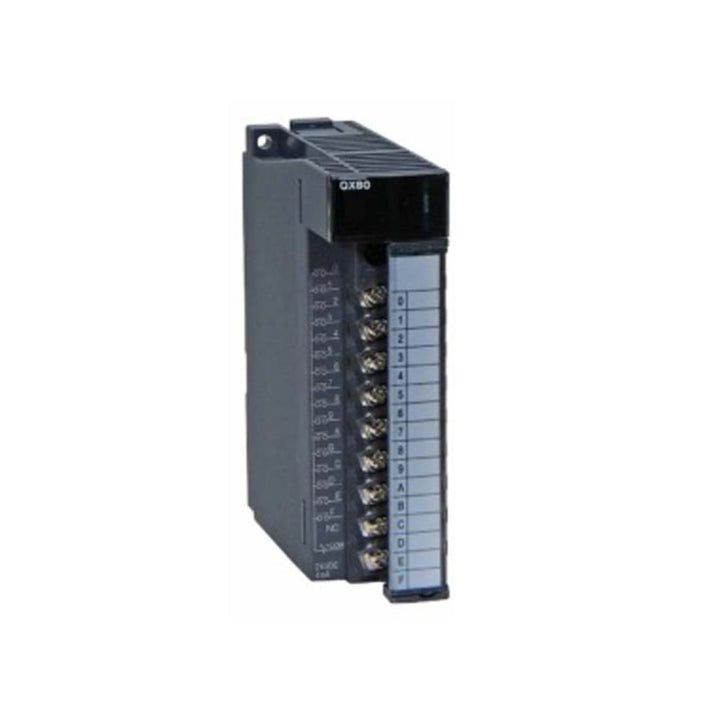

Mitsubishi QX80 | 32-Point Digital Input Module for MELSEC-Q Series PLCs

Overview

The Mitsubishi QX80 is a 32-channel digital input module for the MELSEC-Q Series PLC platform, offering fast, noise-resistant input processing with support for both sink and source input types. With built-in LED status indicators and a compact design, the QX80 is ideal for high-density, high-performance automation systems.

Key Features

• Number of Inputs: 32 digital input channels

• Input Type: Sink or source selectable

• Input Voltage: 24V DC (20.4–26.4V DC range)

• Input Current: Approx. 5 mA per point

• Response Time: 10 ms (default), configurable

• LED Indicators: Individual input status indicators

• Common Terminal: 8 points per common

• High-Density Design: Efficient use of rack space

Technical Specifications

• Model: QX80

• Series: MELSEC-Q

• Connector Type: Screw terminal block (via optional terminal block)

• Isolation: Photocoupler

• Mounting: Standard Q-series base unit slot

• Operating Temperature: 0°C to 55°C

• Weight: Approx. 0.2 kg (0.44 lbs)

• Certifications: CE, UL, cUL

Applications

• Sensor and switch monitoring

• Machine start/stop controls

• Industrial process inputs

• Safety signal acquisition

• General-purpose digital I/O in factory automation

Why Choose the QX80?

• High Channel Density: 32 inputs in one compact module

• Flexible Input Type: Sink/source compatibility simplifies wiring

• Fast, Stable Performance: Reliable for high-speed control systems

• Easy Diagnostics: LED indicators provide real-time input status

Order Now

The Mitsubishi QX80 digital input module is available and ready to ship.

Return to the Mitsubishi MELSEC-Q Series collection for more options in this family.
