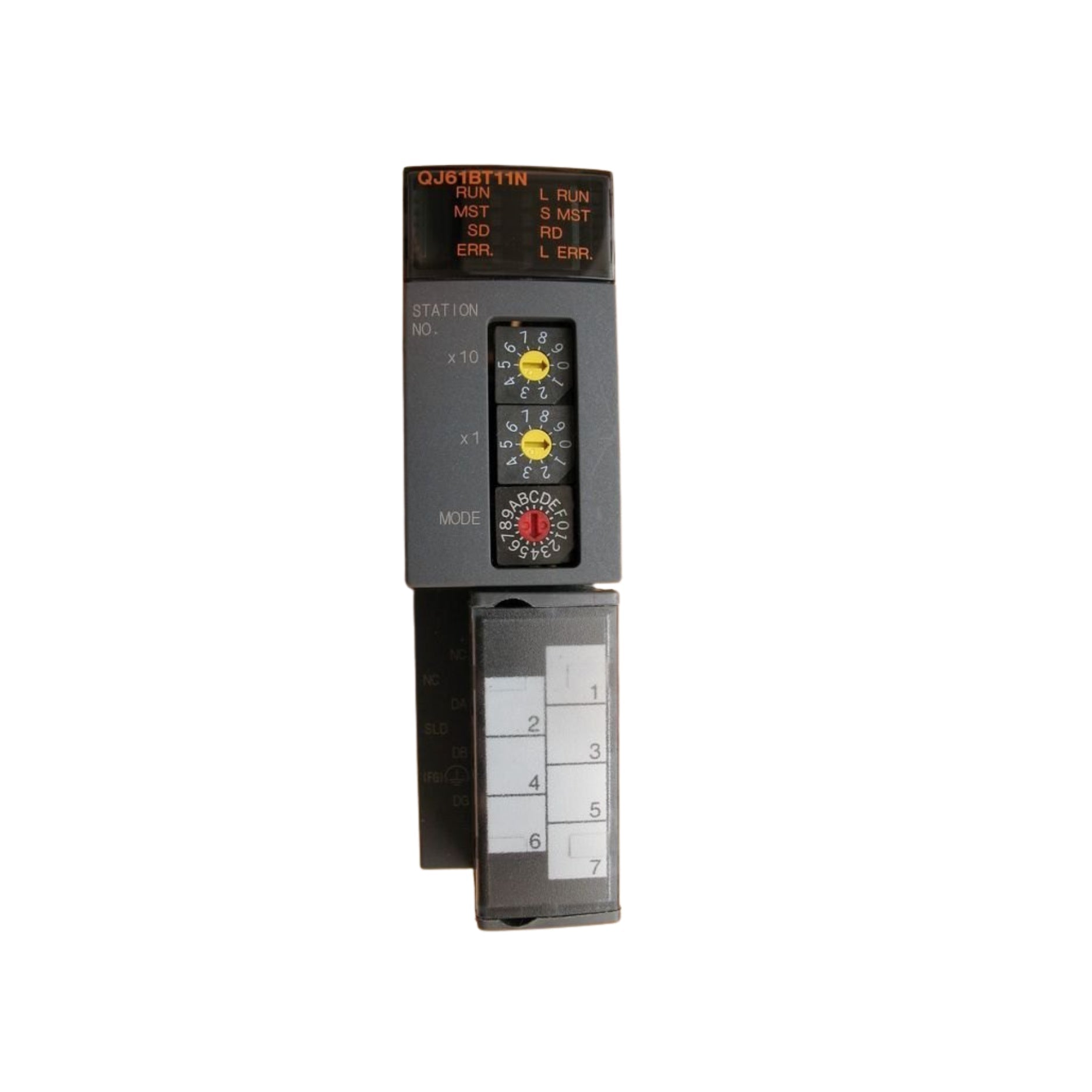

Mitsubishi QJ61BT11N

Mitsubishi QJ61BT11N | CC-Link Master/Local Network Module for MELSEC-Q PLCs

Overview

The Mitsubishi QJ61BT11N is a CC-Link master/local network module for MELSEC-Q Series PLCs, offering Version 2.00 communication with support for up to 64 stations. It enables high-speed, deterministic field-level control across distributed systems. The module is ideal for industrial networks requiring real-time data exchange and reliable performance.

Key Features

• Network Type: CC-Link Ver. 2.00

• Operation Mode: Master or Local station

• Maximum Stations: Up to 64 (Ver. 2.00)

• Communication Speed: Up to 10 Mbps

• Connection Port: RJ45

• Diagnostics: Built-in status and error indicators

• Wide Compatibility: Supports MELSEC-Q Series CPUs

• Noise Resistance: Designed for harsh industrial environments

Technical Specifications

• Model: QJ61BT11N

• Series: MELSEC-Q

• Current Consumption: 0.45A at 5V DC

• Connector Type: RJ45 (twisted pair cable)

• Transmission Distance: Up to 1200m (depends on speed and topology)

• Mounting: Standard Q-series base unit slot

• Operating Temperature: 0°C to 55°C

• Weight: Approx. 0.2 kg (0.44 lbs)

• Certifications: CE, UL

Applications

• Factory automation networks

• Distributed I/O systems

• Real-time data acquisition

• Machine-to-machine communication

• Smart manufacturing lines

Why Choose the QJ61BT11N?

• Flexible Master/Local Configuration: Supports dynamic role assignments

• Fast and Reliable Network Communication: Up to 10 Mbps for real-time control

• Wide System Compatibility: Integrates seamlessly with Mitsubishi automation hardware

• Stable Operation: Engineered for industrial-grade reliability

Order Now

The Mitsubishi QJ61BT11N CC-Link module is in stock and ready to ship.
