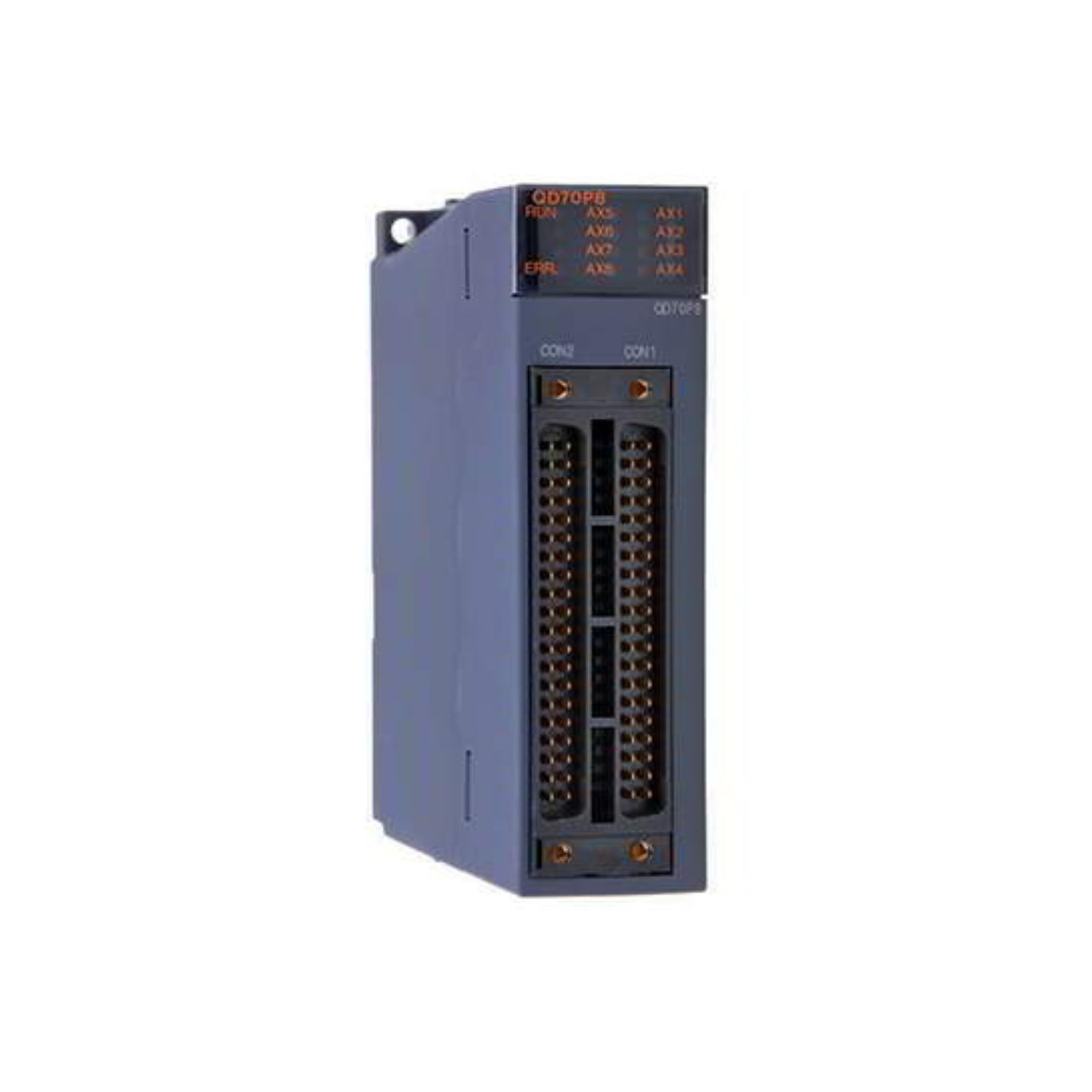

Mitsubishi QD70P8

Mitsubishi QD70P8

Overview

The Mitsubishi QD70P8 is a high-capability positioning module designed for use with MELSEC-Q series PLCs. Featuring 8 pulse-train output axes, it enables precise and synchronized motion control across multiple motors, making it an ideal choice for high-density automation setups.

Key Features

• Eight pulse output channels

• Supports synchronized multi-axis motion

• Capable of linear, circular interpolation control

• High-speed pulse output for advanced positioning

• Compatible with MELSEC-Q PLC base units

• Compact form factor ideal for space-limited panels

Technical Specifications

• Mitsubishi Code: QD70P8

• Series: MELSEC-Q

• Number of Axes: 8 pulse output channels

• Control Method: Pulse-train output

• Max Pulse Frequency: Up to 2 Mpps per axis

• Positioning Modes: Absolute, relative, and interpolation

• Mounting: Q series PLC base unit slot

• Power Supply: Bus-powered from PLC rack

• Operating Temperature: 0 °C to +55 °C

Applications

• Multi-axis CNC and routing machines

• Coordinated conveyor and gantry systems

• Pick-and-place and robotic automation

• High-speed labeling and packaging lines

• Complex motion control systems

Why Choose Mitsubishi QD70P8?

• Enables advanced synchronization across eight motion axes

• High-speed performance ideal for precision automation

• Integrated design simplifies installation and wiring

• Consistent reliability within Mitsubishi’s automation ecosystem

• Ideal for OEM and machine builders with space constraints

Order Now

Enhance your motion control capabilities with the Mitsubishi QD70P8 — a powerful and compact 8-axis pulse output module for precision automation.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
