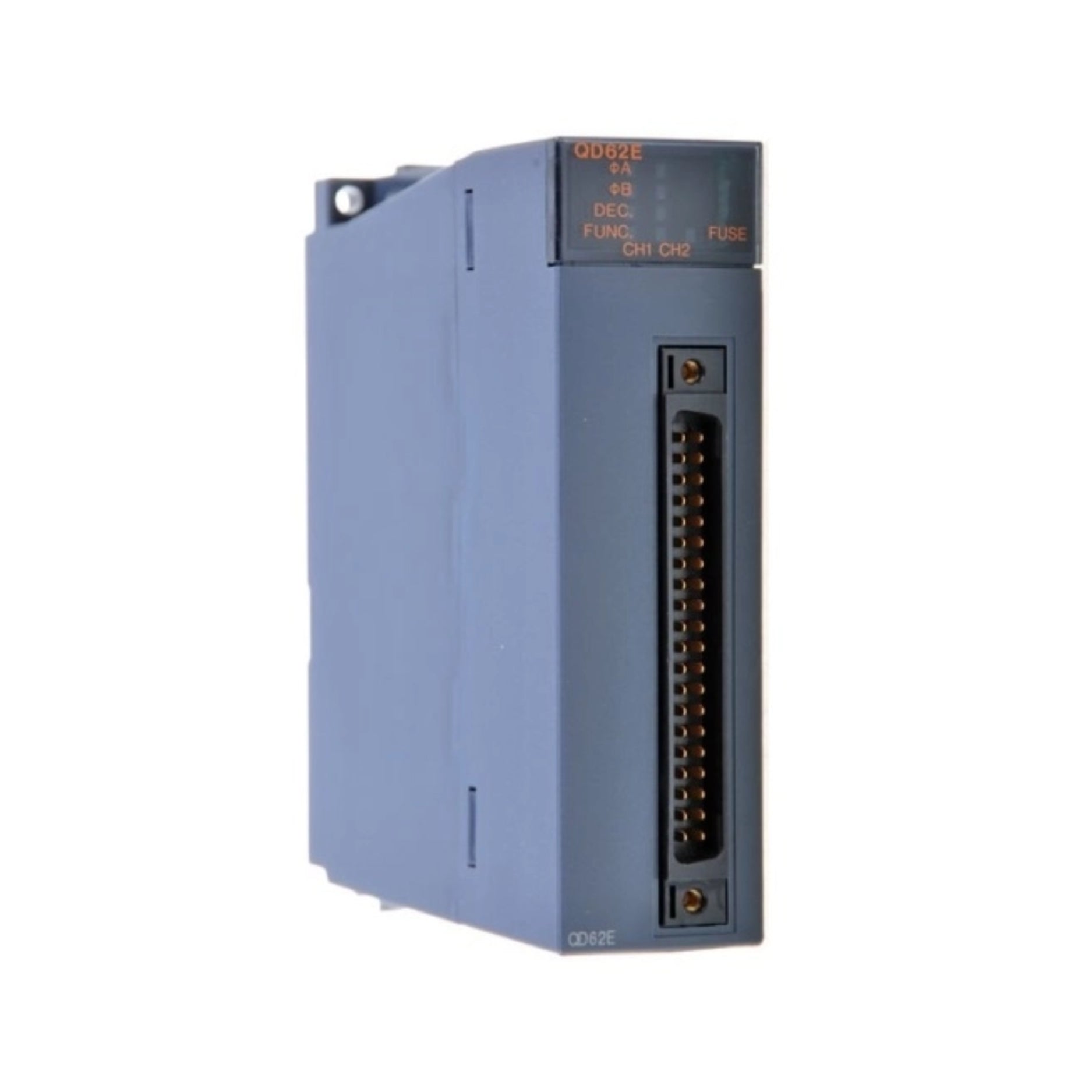

Mitsubishi QD62E

Mitsubishi QD62E

Overview

The Mitsubishi QD62E is a 2-channel high-speed counter module from the MELSEC-Q Series, designed for precision pulse counting and position detection in automation systems. With support for input frequencies up to 200 kHz and flexible voltage ranges (5 V, 12 V, 24 V), it is ideal for applications requiring accurate, real-time signal processing. Compact and DIN-rail mountable, the QD62E integrates seamlessly into Q-series PLC setups.

Key Features

• 2-channel high-speed counter

• Input frequency up to 200 kHz

• Supports 5 V, 12 V, and 24 V DC inputs

• Transistor (source-type) outputs

• Single-phase or A/B-phase input modes

• 32-bit counter resolution

• DIN-rail mountable

• Compact and lightweight module

Technical Specifications

• Catalog Number: QD62E

• Series: MELSEC-Q

• Channels: 2

• Input Voltage: 5 V / 12 V / 24 V DC

• Input Frequency: Up to 200 kHz

• Output Type: Source transistor

• Output Voltage: 12–24 V DC

• Max Output Current: 0.1 A per point

• Counter Resolution: 32-bit

• Power Consumption: 0.33 A at 5 V DC

• Dimensions: 98 × 27.4 × 90 mm

• Weight: Approx. 110 g

• Mounting: DIN rail

• Certifications: CE, UL

Applications

• Encoder feedback and pulse counting

• Position control in automated equipment

• High-speed event tracking in manufacturing

• Robotic motion systems

• Material handling and packaging lines

Why Choose the QD62E

• Accurate high-speed counting up to 200 kHz

• Compatible with a wide range of sensors

• Integrated output control for real-time response

• Easy to configure within MELSEC-Q systems

• Reliable Mitsubishi quality in compact form

Order Now

The Mitsubishi QD62E high-speed counter module is available and ships worldwide.
