Mitsubishi Q68DAVN

Mitsubishi Q68DAVN

Overview

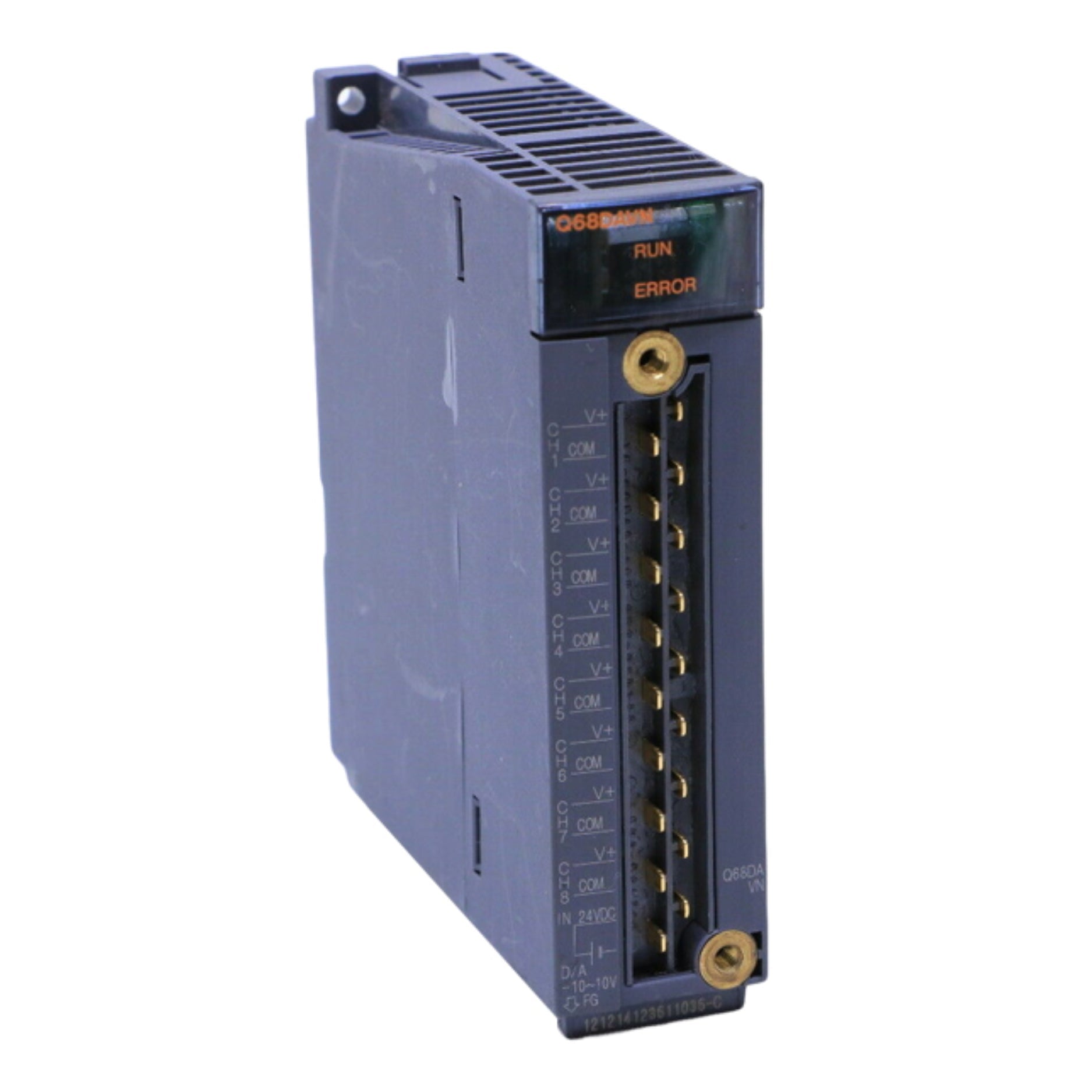

The Mitsubishi Q68DAVN is an 8-channel analog output module designed for use with Q Series programmable logic controllers. It provides precise voltage outputs for industrial control systems, enabling smooth operation of actuators, drives, and analog signal devices in process and factory automation.

Key Features

• 8 analog output channels

• Voltage output: ±10 V, 0–10 V, 0–5 V, 1–5 V

• High-resolution and high-speed conversion

• Channel-isolated output circuits

• Built-in diagnostics and overcurrent protection

• DIN rail mountable via base rack

• Supports Mitsubishi GX Developer and GX Works2 software

• Ideal for precision analog control applications

Technical Specifications

• Part Number: Q68DAVN

• Manufacturer: Mitsubishi Electric

• Series: Q Series

• Channels: 8 output

• Output Type: Voltage (±10 V, 0–10 V, etc.)

• Resolution: 12-bit

• Conversion Speed: 1 ms/channel

• Load Resistance: 2 kΩ or more

• Isolation: Channel-to-channel and channel-to-PLC

• Power Supply: 5 VDC (from PLC base)

• Operating Temperature: 0 °C to +55 °C

• Certifications: CE, UL, RoHS

Applications

• Analog actuator control

• Variable speed drives

• Process automation systems

• PID control loops

• HVAC and building automation

Why Choose the Q68DAVN

• Reliable multi-channel voltage output

• Supports precision analog signal applications

• Seamlessly integrates with Q Series systems

• Built-in protections for long-term reliability

• Compact design for efficient space use

Order Now

The Mitsubishi Q68DAVN analog output module is available and ships worldwide.
