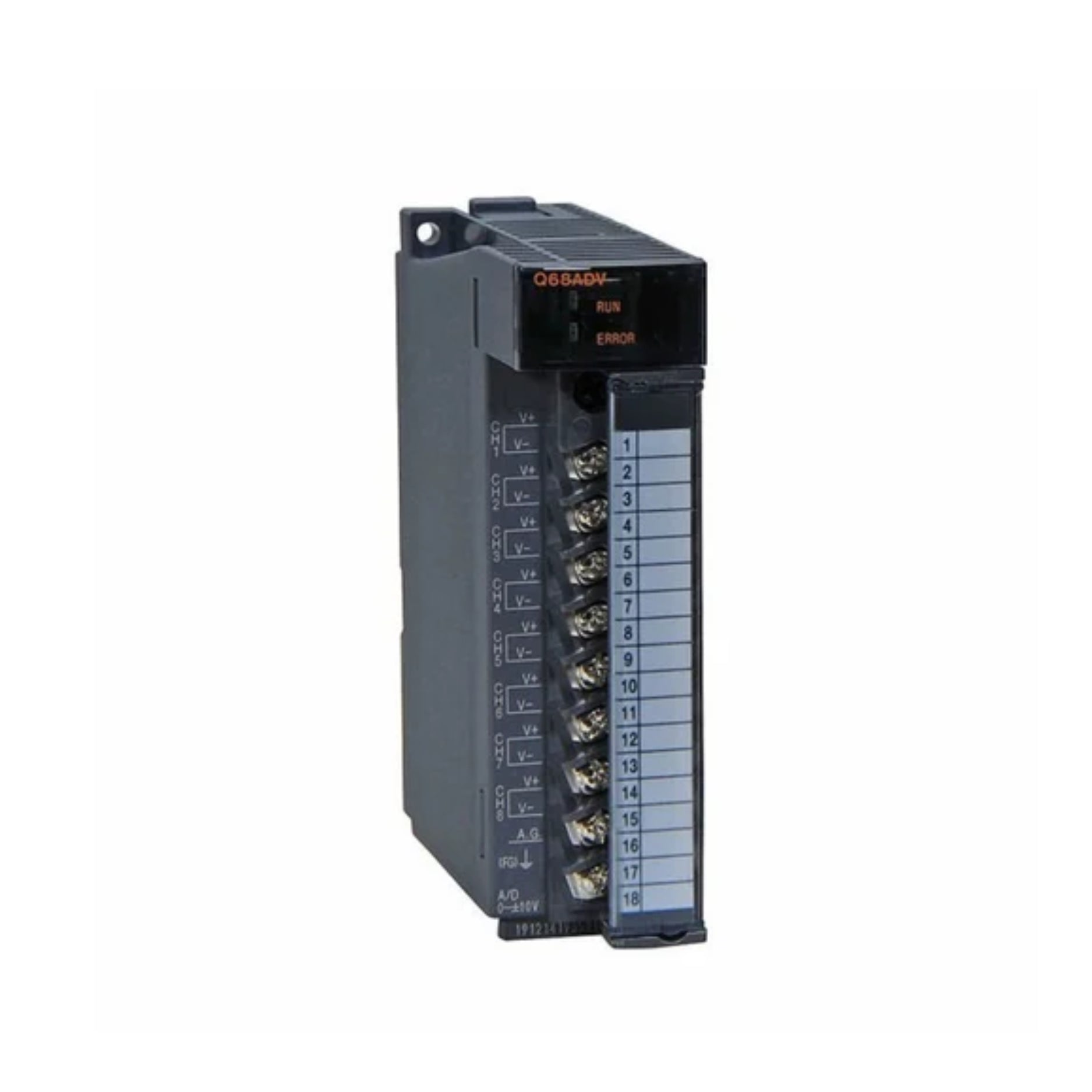

Mitsubishi Q68ADV

Mitsubishi Q68ADV | 8-Channel High-Precision Analog Voltage Input Module – Q Series

Overview

The Mitsubishi Q68ADV is a high-performance analog voltage input module for the Q Series PLC platform, offering 8 differential input channels with 16-bit resolution. It supports multiple voltage ranges including ±10V, 0–10V, and 1–5V, making it ideal for precise analog signal acquisition in industrial automation systems.

Key Features

• Input Channels: 8 analog voltage inputs

• Input Ranges: ±10V, 0–10V, 1–5V (software-selectable)

• Resolution: 16-bit (1/65,536 steps)

• Conversion Speed: 1 ms/channel

• Isolation: Photocoupler isolation between input channels and system

• Status Indicators: LED for module and channel status

• High Accuracy: ±0.3% full scale

Technical Specifications

• Model: Q68ADV

• Series: Mitsubishi MELSEC Q Series

• Input Impedance: Approx. 1 MΩ

• Signal Type: Voltage only

• Power Supply: Supplied from base unit (5V DC)

• Ambient Temperature: 0°C to 55°C

• Mounting: Rack mount (base unit required)

• Weight: Approx. 0.2 kg (0.44 lbs)

• Certifications: CE, UL

Applications

• Sensor and transducer signal monitoring

• Industrial process control

• Precision voltage data acquisition

• Monitoring analog outputs from third-party systems

• Integration with SCADA systems

Why Choose the Q68ADV?

• High Resolution: Captures fine signal changes with 16-bit accuracy

• Flexible Voltage Range: Supports a variety of signal sources

• Reliable Operation: Designed for harsh industrial environments

• Scalable Architecture: Easy to integrate with Q Series systems

Order Now

The Mitsubishi Q68ADV analog input module is in stock and available for global shipping.
