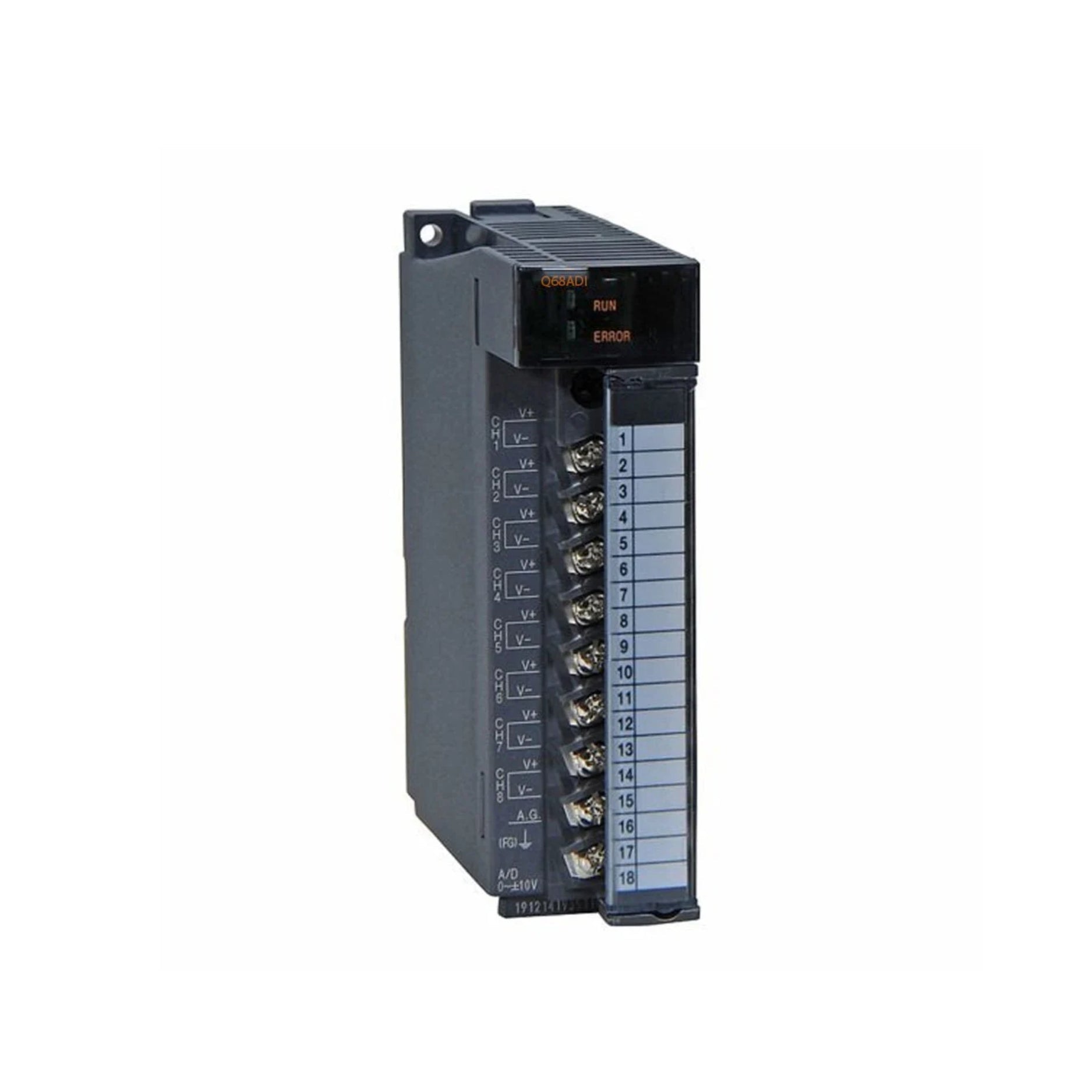

Mitsubishi Q68ADI

Mitsubishi Q68ADI | 8-Channel High-Resolution Analog Input Module for Q-Series PLCs

Overview

The Mitsubishi Q68ADI is a high-precision analog input module for MELSEC-Q Series PLCs, offering 8 differential input channels with 16-bit resolution. Designed for precise analog signal acquisition, it is ideal for industrial applications requiring accurate measurement of voltage or current signals.

Key Features

• Number of Channels: 8 analog inputs (differential)

• High Resolution: 16-bit A/D conversion

• Input Signal Types: Voltage and current (selectable)

• High-Speed Conversion: Supports real-time process control

• Status Indicators: Built-in LED diagnostics

• Noise Immunity: Excellent for electrically noisy environments

• Seamless Integration: Compatible with all Q-Series PLC CPUs

Technical Specifications

• Model: Q68ADI

• Series: MELSEC-Q

• Signal Types: Voltage (±10V, 0–10V, 1–5V), Current (0–20mA, 4–20mA)

• Conversion Speed: 1 ms per channel

• Input Range: Configurable per channel

• Insulation: Photocoupler isolation

• Mounting: Standard Q-Series base unit slot

• Operating Temperature: 0°C to 55°C

• Weight: Approx. 0.2 kg (0.44 lbs)

• Certifications: CE, UL

Applications

• Temperature and pressure monitoring

• Flow and level measurement

• Industrial process control

• Environmental data acquisition

• Precision test systems

Why Choose the Q68ADI?

• High Accuracy: 16-bit resolution ensures reliable data capture

• Differential Inputs: Reduce noise and improve signal integrity

• Flexible Signal Support: Voltage and current configurable per channel

• Reliable Performance: Ideal for demanding automation environments

Order Now

The Mitsubishi Q68ADI analog input module is available and ready to ship.
