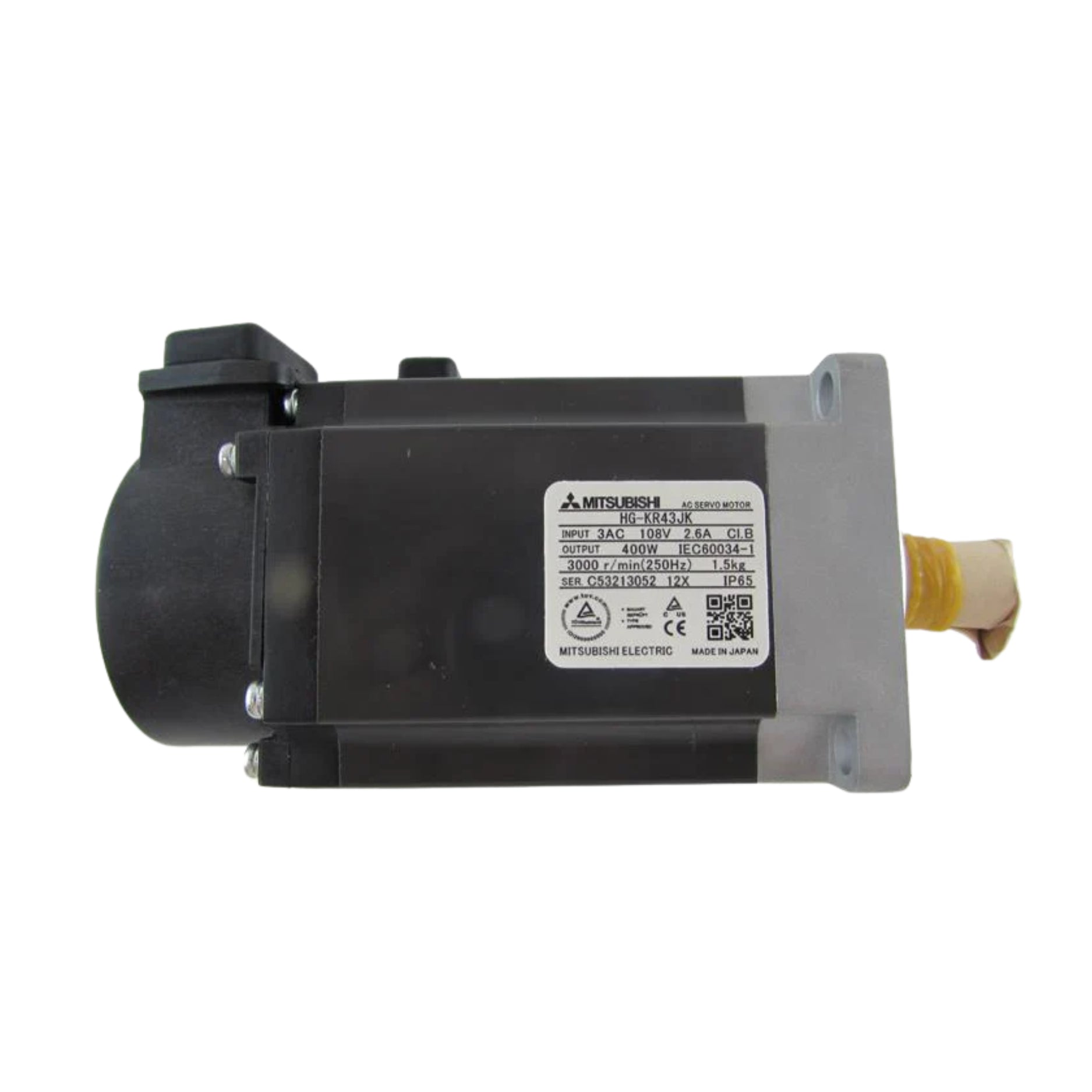

Mitsubishi HG-KR43JK

Mitsubishi HG-KR43JK | 400W Low-Inertia Servo Motor for MELSERVO J4 Series

Overview

The Mitsubishi HG-KR43JK is a compact 400W low-inertia AC servo motor from the MELSERVO J4 Series, designed for high-speed and precise motion control applications. Featuring a keyed shaft, oil seal, and a 22-bit absolute encoder, it ensures accurate positioning and reliable performance in demanding industrial environments.

Key Features

• Rated Output Power: 400W (0.4kW)

• Rated Torque: 1.3 Nm

• Maximum Torque: 4.5 Nm

• Rated Speed: 3000 RPM

• Maximum Speed: 6000 RPM

• Encoder: 22-bit absolute encoder (4,194,304 pulses per revolution)

• Shaft Type: Keyed shaft with key

• Oil Seal: Equipped for enhanced protection

• Frame Size: 60mm × 60mm

• Protection Rating: IP65 (excluding shaft-through portion)

• Mounting: Flange mount

• Insulation Class: F

Technical Specifications

• Model: HG-KR43JK

• Series: MELSERVO J4

• Power Supply: 200V AC class

• Rated Current: 2.6 A

• Moment of Inertia: 0.18 × 10⁻⁴ kg·m²

• Weight: Approximately 1.2 kg

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -15°C to 70°C

• Operating Humidity: 10% to 80% RH (non-condensing)

• Vibration Resistance: 49 m/s² (5G) at 10 to 60 Hz

• Certifications: CE, UL, cUL, UKCA

• Environmental Compliance: RoHS compliant

Applications

• High-speed pick-and-place machines

• Packaging equipment

• Semiconductor manufacturing

• Robotics

• CNC machinery

Why Choose the HG-KR43JK?

• High Precision: 22-bit encoder provides ultra-precise positioning.

• Compact Design: Small footprint ideal for space-constrained applications.

• Robust Construction: IP65 rating and oil seal ensure durability in harsh environments.

• Low Inertia: Suitable for applications requiring rapid acceleration and deceleration.

• Global Compliance: Meets international standards for safety and environmental regulations.

Order Now

The Mitsubishi HG-KR43JK servo motor is available for global shipping.

Return to the Mitsubishi Servo Motor HG Series collection for more options in this family.

Explore our full range of Mitsubishi Servo Motors, delivering precision, high torque density, and advanced motion control solutions for industrial automation.
