Mitsubishi HG-KR43

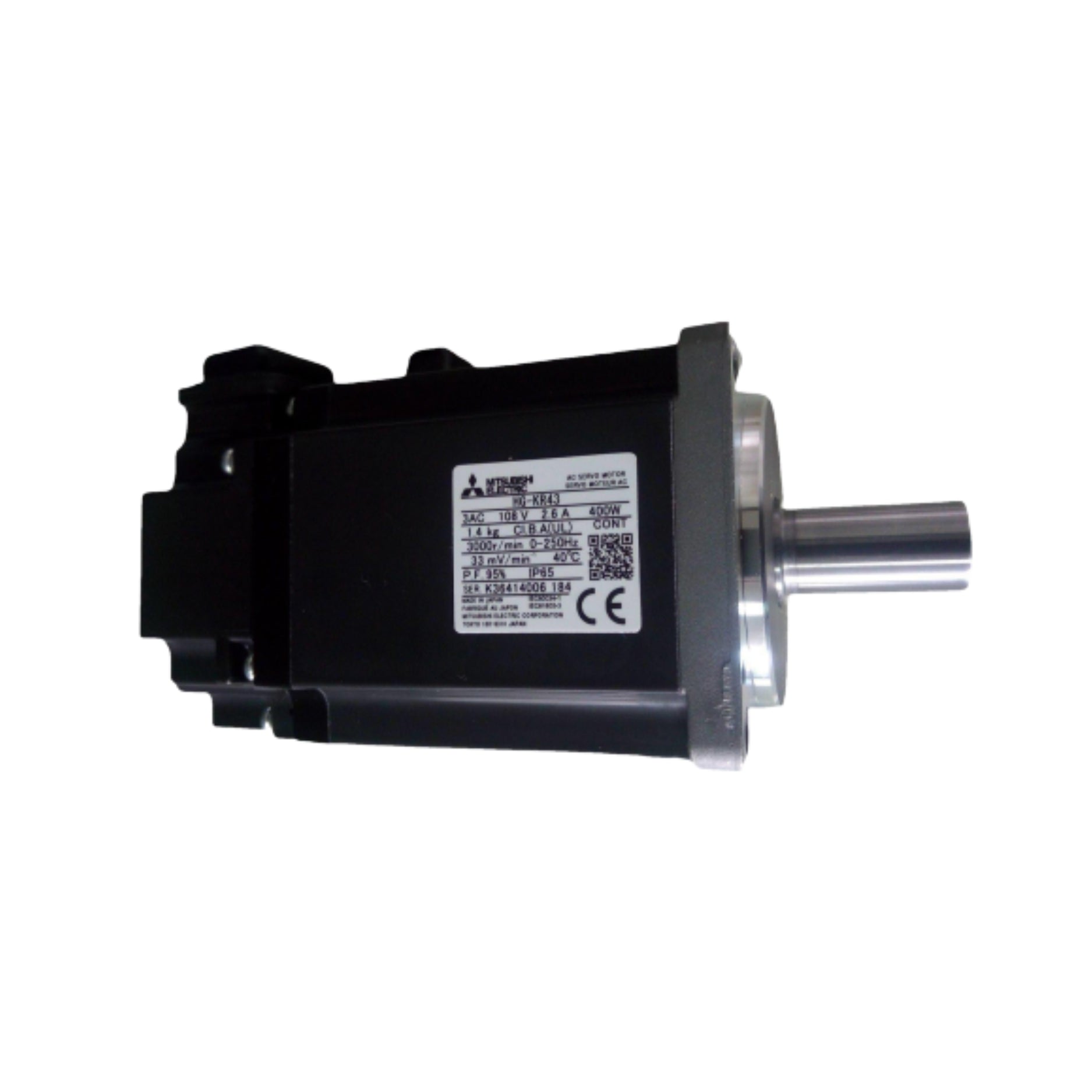

Mitsubishi HG-KR43 | 400W AC Servo Motor with Incremental Encoder – MELSERVO J4 Series

Overview

The Mitsubishi HG-KR43 is a high-performance 400W AC servo motor from the MELSERVO J4 Series, designed for compact motion systems requiring speed, accuracy, and reliability. It features a 22-bit incremental encoder, 3000 RPM rated speed, and compact dimensions for easy installation in tight spaces.

Key Features

• Rated Output Power: 400W

• Rated Speed: 3000 RPM

• Rated Torque: Approx. 1.27 Nm

• Power Supply Voltage: 200V AC

• Encoder Type: 22-bit Incremental

• Compact Size: Ideal for applications with space constraints

• Low Inertia Design: For rapid acceleration and deceleration

• High Positioning Accuracy: Precise motion control

Technical Specifications

• Model: HG-KR43

• Series: MELSERVO J4

• Rated Current: Approx. 2.6A

• Maximum Speed: 6000 RPM

• Protection Class: IP65 (excluding shaft)

• Mounting: Flange mount

• Shaft Type: Straight with keyway

• Weight: Approx. 1.7 kg (3.75 lbs)

• Operating Temperature: 0°C to 40°C

• Certifications: CE, UL

Applications

• Pick-and-place machines

• Compact robotics

• Semiconductor processing equipment

• Packaging machinery

• Precision positioning systems

Why Choose the HG-KR43?

• Space-Efficient Motor Design: Fits into small enclosures or tight machine frames

• High Responsiveness: Suited for fast-cycle operations

• Durable Build: IP65-rated for harsh industrial environments

• Seamless Integration: Compatible with Mitsubishi MR-J4 servo amplifiers

Order Now

The Mitsubishi HG-KR43 servo motor is in stock and available for immediate delivery.
