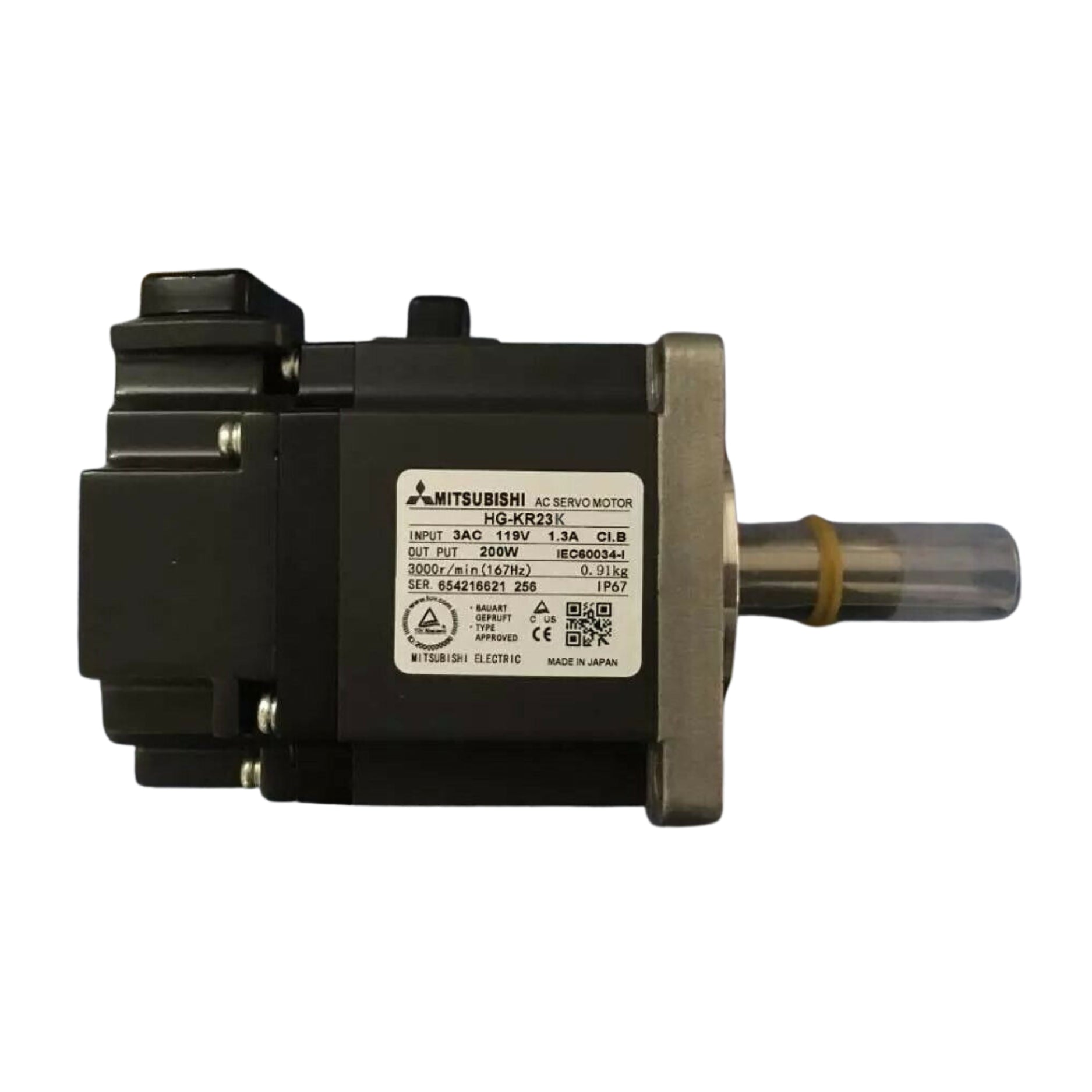

Mitsubishi HG-KR23K

Mitsubishi HG-KR23K

Overview

The Mitsubishi HG-KR23K is a compact 200 W servo motor from the HG-KR series, designed for high-performance applications that require precision, speed, and space-saving design. Featuring an incremental encoder and keyed shaft, this motor is well-suited for integration into compact automation systems.

Key Features

• Output Power: 200 W

• Rated Speed: 3000 rpm

• Max Speed: 6000 rpm

• Encoder Type: Incremental (22-bit resolution)

• Shaft: Keyed, without oil seal

• Low inertia for high response performance

• IP65 protection (excluding shaft)

• Compatible with MR-J4 servo amplifiers

• Compact flange-mounted design

Technical Specifications

• Model Number: HG-KR23K

• Rated Torque: Approx. 0.64 Nm

• Max Torque: Approx. 1.9 Nm

• Rotor Inertia: 0.046 × 10⁻⁴ kg·m²

• Voltage: 200 V AC

• Encoder: 22-bit incremental

• Cooling: Natural convection

• Mounting: Flange

• Operating Temperature: 0 °C to +40 °C

• Certifications: CE, UL, RoHS

Applications

• Compact robotics and actuators

• Semiconductor and electronics manufacturing

• Labeling and packaging equipment

• Pick-and-place automation

• Precision small machinery

Why Choose the HG-KR23K

• High responsiveness in a compact form

• Reliable performance with precise positioning

• Keyed shaft design for secure coupling

• Ideal for applications with limited space

• Engineered for seamless integration with Mitsubishi servo systems

Order Now

The Mitsubishi HG-KR23K servo motor is available and ships worldwide.

Return to the Mitsubishi Servo Motor HG Series collection for more options in this family.

Explore our full range of Mitsubishi Servo Motors, delivering precision, high torque density, and advanced motion control solutions for industrial automation.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
