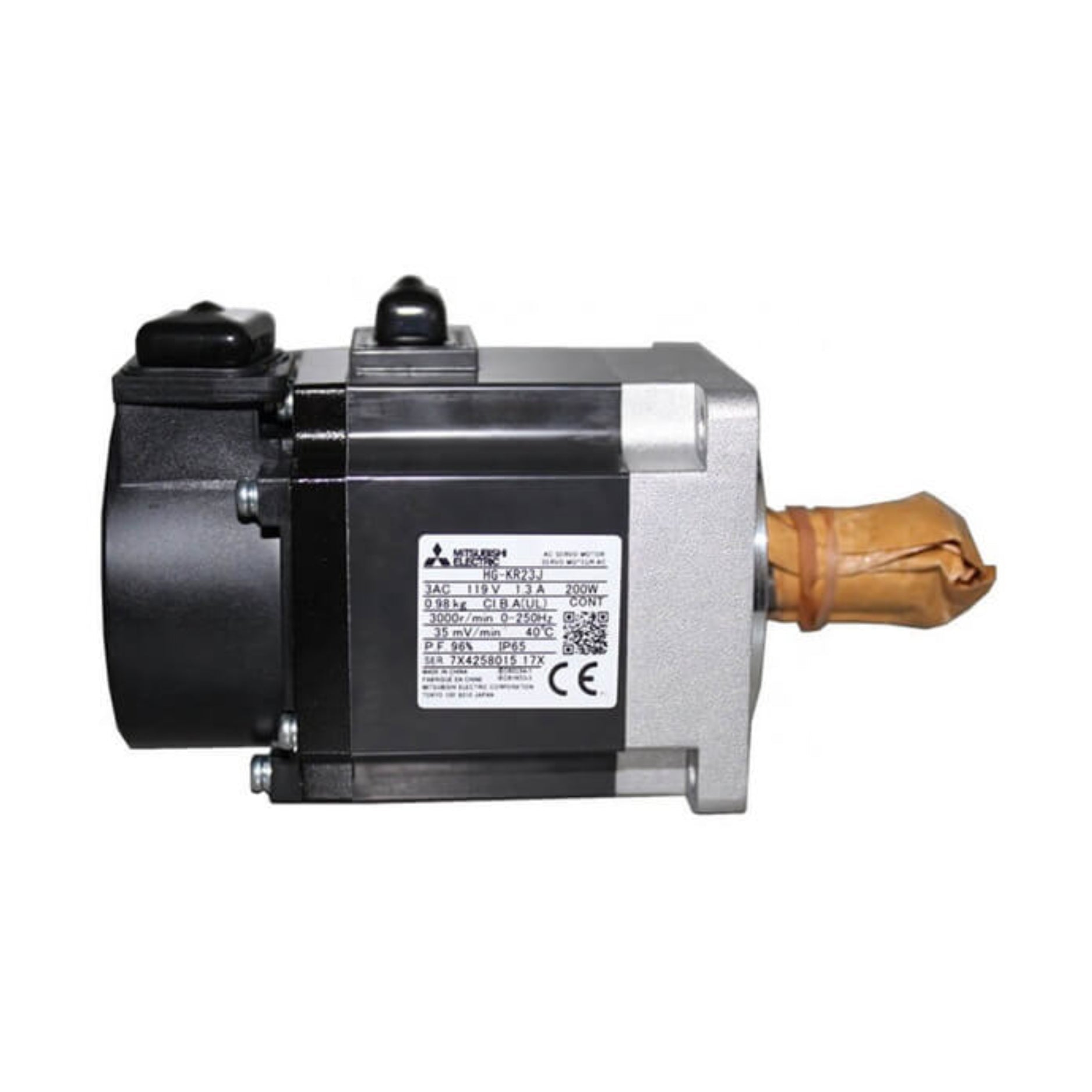

Mitsubishi HG‑KR23J

Mitsubishi HG‑KR23J

Overview

The Mitsubishi HG‑KR23J is a compact yet powerful 200 W AC servo motor from the HG‑KR series, engineered for precision motion control. Featuring a keyed shaft design and high-resolution incremental encoder, this motor provides fast response and reliable performance in tight automation setups.

Key Features

• Power Rating: 200 W

• Rated Speed: 3000 rpm (up to 6000 rpm max)

• Encoder Type: High-resolution incremental (22-bit)

• Shaft: Keyed, oil‑seal optional

• Low-inertia rotor for rapid acceleration

• Compact flange-mount design

• IP65-rated housing (shaft excluded)

• Compatible with MR‑J4 servo amplifiers

Technical Specifications

• Model Number: HG‑KR23J

• Rated Torque: Approx. 0.64 Nm

• Peak Torque: Approx. 1.9 Nm

• Rotor Inertia: ~0.046 × 10⁻⁴ kg·m²

• Rated Voltage: 200 V AC

• Encoder Resolution: 22‑bit incremental

• Cooling Method: Natural convection

• Mounting: Flange

• Protection: IP65 (shaft excluded)

• Ambient Temp: 0 °C to +40 °C

• Certifications: CE, UL, RoHS

Applications

• Small robotics and actuators

• Compact servo-driven conveyors

• Semiconductor and electronics assembly

• Packaging, labeling equipment

• Compact multi-axis motion systems

Why Choose the HG‑KR23J

• Excellent speed and torque response in a compact frame

• Keyed shaft ensures secure coupling

• Built-in encoder supports precise position control

• Easy integration with MR‑J4 amplifiers

• Ideal for space-constrained industrial environments

Order Now

The Mitsubishi HG‑KR23J servo motor is available and ships worldwide.
