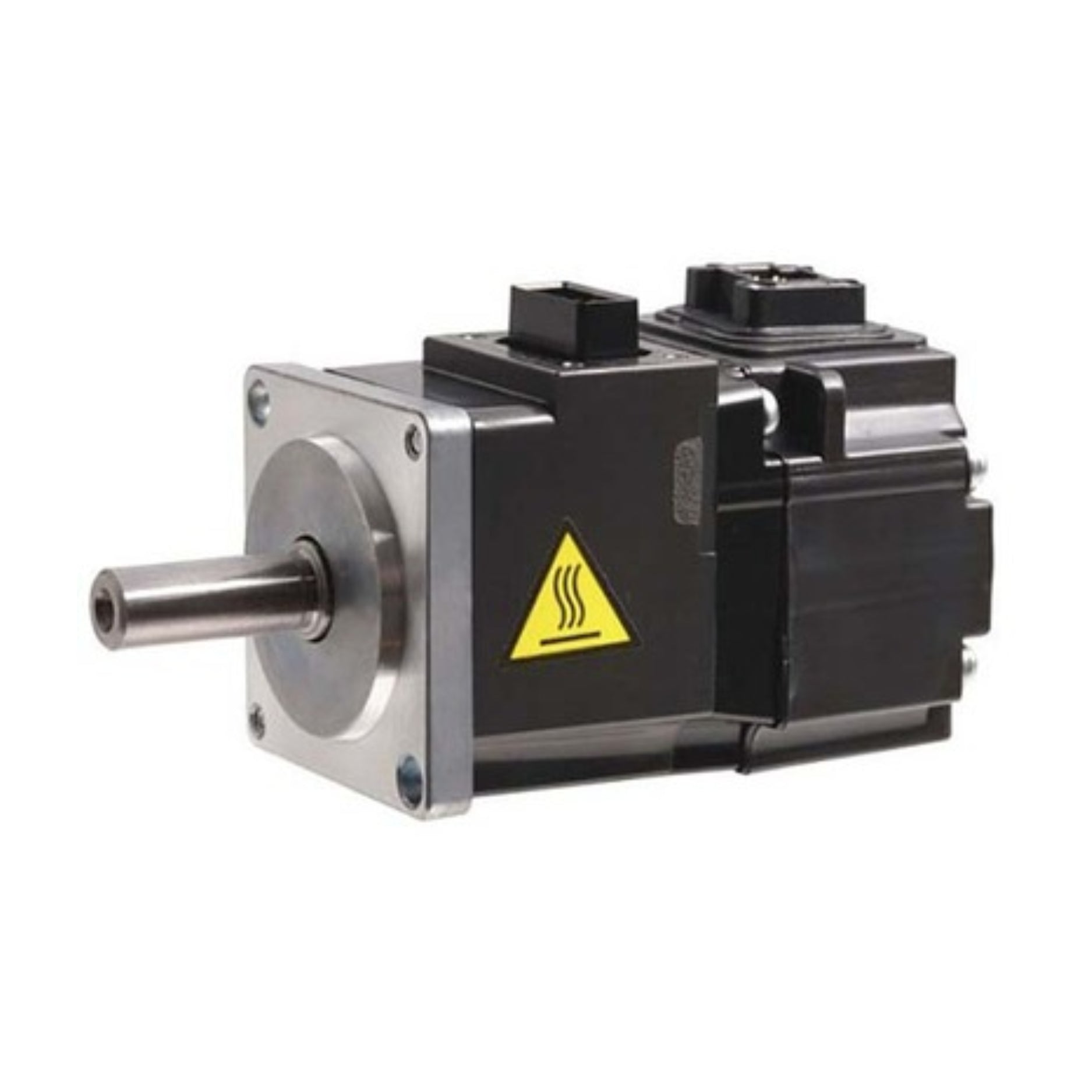

Mitsubishi HG-KR13B

Mitsubishi HG-KR13B | 100W AC Servo Motor with Brake – HG-KR Series

Overview

The Mitsubishi HG-KR13B is a compact 100W AC servo motor with a built-in brake, designed for precise motion control in tight spaces. Part of the HG-KR Series, this motor delivers 3000 RPM rated speed, excellent positioning accuracy, and high responsiveness for demanding automation applications.

Key Features

• Rated Power Output: 100W

• Rated Speed: 3000 RPM

• Maximum Speed: Up to 6000 RPM

• Built-in Brake: Provides holding torque during power-off conditions

• Encoder Type: Incremental, high-resolution (typically 4,194,304 pulses/rev)

• Compact Size: Ideal for limited-space applications

• Low Inertia: For fast acceleration/deceleration cycles

Technical Specifications

• Model: HG-KR13B

• Series: HG-KR

• Rated Torque: 0.32 Nm

• Peak Torque: Approx. 0.96 Nm

• Voltage Class: 200V AC

• Protection Rating: IP65 (excluding shaft)

• Cooling Method: Natural air cooling

• Insulation Class: F

• Mounting: Flange

• Weight: Approx. 0.6 kg

Applications

• Semiconductor machinery

• Laboratory automation

• Compact robotic arms

• Light conveyors and pick-and-place units

• High-precision motion equipment with holding requirements

Why Choose the HG-KR13B?

• Built-in Brake: Secures positioning during shutdowns

• Ultra-Compact Design: Perfect for space-sensitive machines

• High-Speed Capability: Up to 6000 RPM for fast applications

• Mitsubishi Reliability: Designed for long-term performance in automation

Order Now

The Mitsubishi HG-KR13B servo motor is available for global shipping.

Return to the Mitsubishi Servo Motor HG Series collection for more options in this family.

Explore our full range of Mitsubishi Servo Motors, delivering precision, high torque density, and advanced motion control solutions for industrial automation.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
