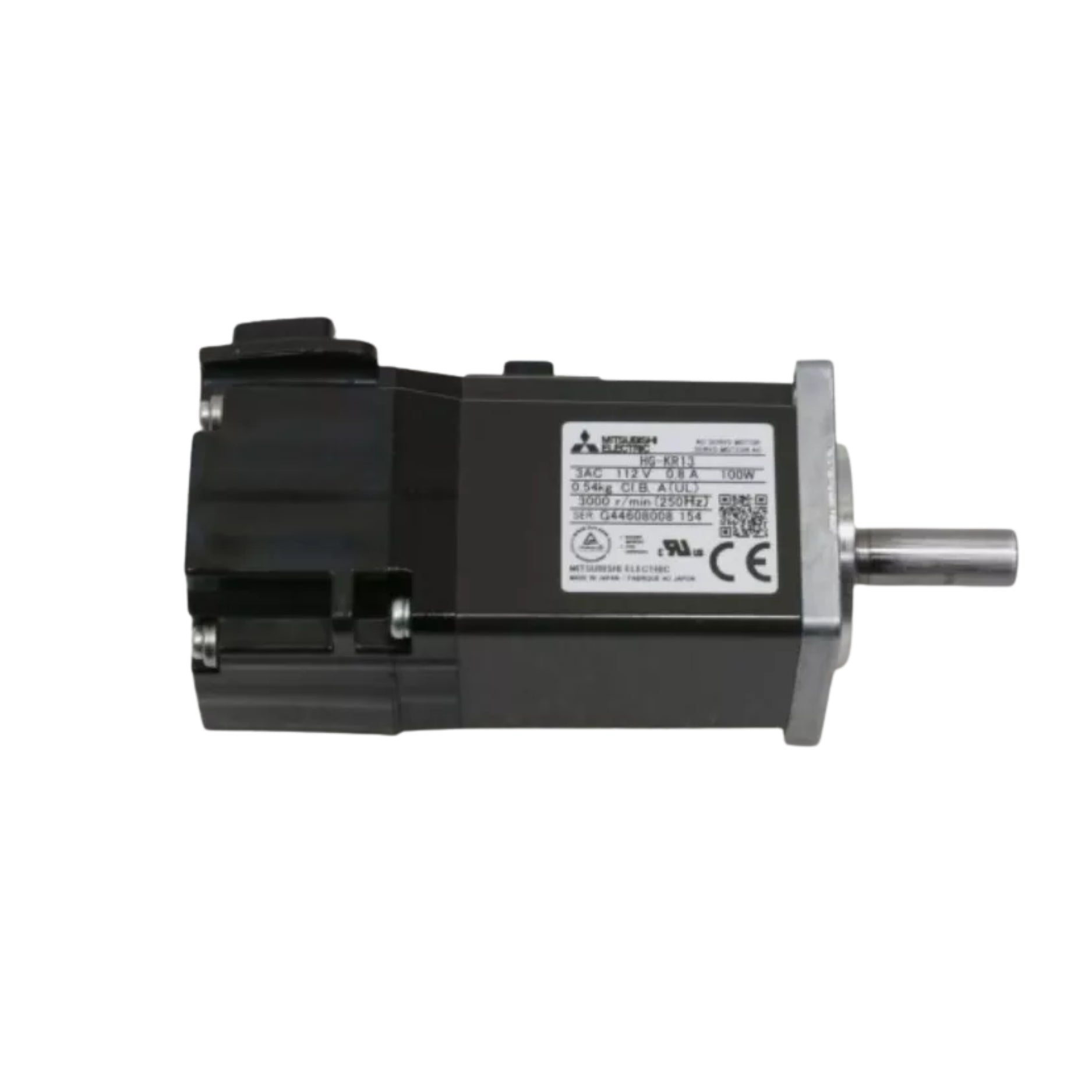

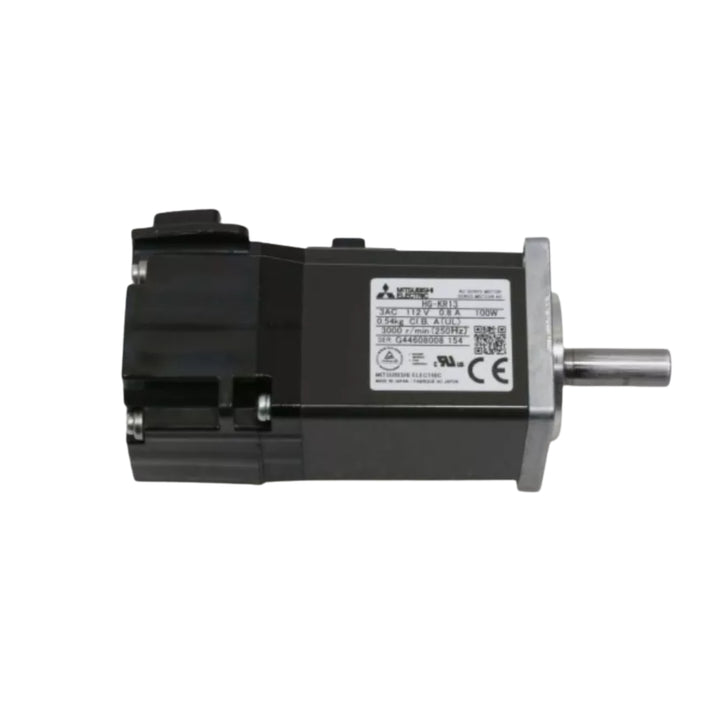

Mitsubishi HG-KR13

Mitsubishi HG-KR13 | 100W, 200V AC Servo Motor – HG-KR Series

Overview

The Mitsubishi HG-KR13 is a 100W AC servo motor from the HG-KR Series, built for precision and performance in compact spaces. Designed to operate with MR-J4 servo amplifiers, it delivers 3000 RPM rated speed and integrates a 22-bit incremental encoder, making it ideal for applications requiring accurate positioning and fast response.

Key Features

• Rated Output: 100W

• Rated Voltage: 200V AC

• Rated Speed: 3000 RPM

• Max Speed: 6000 RPM

• Encoder: 22-bit Incremental

• Frame Size: 40mm flange

• Brake Option: Available (check part variant)

• Compact Size: Suitable for space-constrained applications

Technical Specifications

• Model: HG-KR13

• Series: HG-KR

• Rated Torque: 0.32 Nm

• Peak Torque: Approx. 0.96 Nm

• Insulation Class: F

• Protection Class: IP65 (excluding shaft)

• Mounting Type: Flange mount

• Ambient Temperature: 0°C to 40°C

• Weight: Approx. 0.55 kg (1.21 lbs)

• Compatible Servo Drive: MR-J4-A/B/G series

Applications

• Precision positioning systems

• Pick-and-place robots

• Semiconductor and electronics assembly

• Compact conveyors

• Automated inspection machines

Why Choose the HG-KR13?

• High Precision: 22-bit resolution for fine control

• Compact Design: Fits in tight spaces

• Fast Acceleration: Supports dynamic applications

• Durable Build: IP65 protection for harsh environments

Order Now

The Mitsubishi HG-KR13 servo motor is available and ready to ship.

Return to the Mitsubishi Servo Motor HG Series collection for more options in this family.

Explore our full range of Mitsubishi Servo Motors, delivering precision, high torque density, and advanced motion control solutions for industrial automation.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
