Mitsubishi HG-KR053

Mitsubishi HG-KR053

Overview

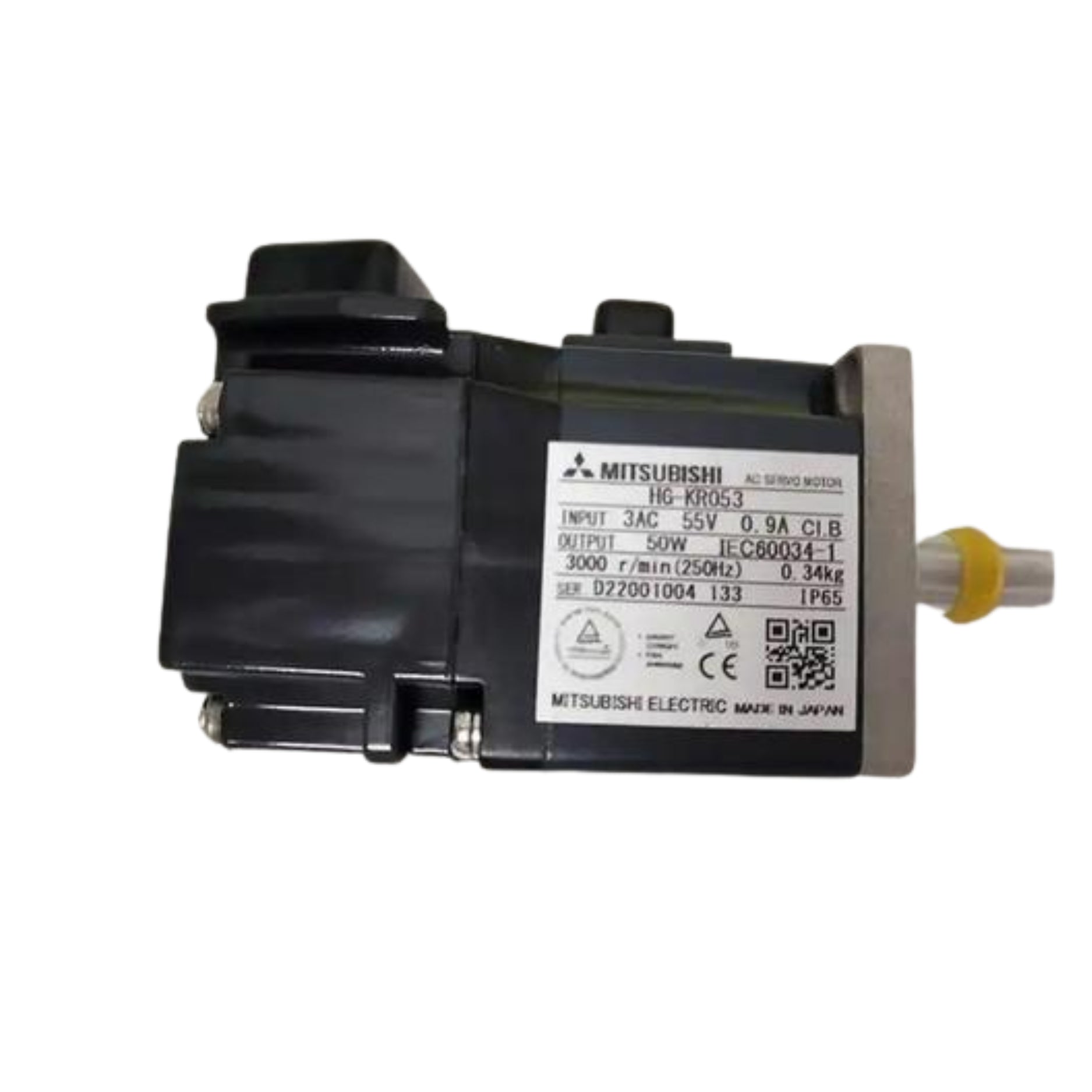

The Mitsubishi HG-KR053 is a 50W compact AC servo motor from the HG-KR series, designed for precision control in space-constrained environments. With a 3000 RPM rated speed, 200V input, and integrated 22-bit absolute encoder, it offers high positioning accuracy and smooth performance for dynamic industrial applications.

Key Features

• Series: HG-KR

• Rated Output: 50W

• Rated Speed: 3000 RPM

• Maximum Speed: Up to 6000 RPM

• Voltage Class: 3-phase 200V

• Encoder Type: 22-bit absolute encoder

• Shaft Type: Straight (no key, no oil seal)

• Protection Class: IP65 (excluding shaft and connectors)

• Mounting Style: Flange mount

• Cooling Method: Natural convection

Technical Specifications

• Catalog Number: HG-KR053

• Rated Output: 50W

• Rated Torque: 0.16 Nm

• Peak Torque: Approx. 0.48 Nm

• Rated Speed: 3000 RPM

• Input Voltage: 3-phase 200V

• Encoder Resolution: 22-bit (4,194,304 pulses/rev)

• Protection Rating: IP65

• Ambient Temperature: 0°C to 40°C

• Mounting Type: Flange

• Shaft Diameter: 6 mm

• Weight: ≈ 0.4 kg

• Certifications: CE, UL, RoHS

Applications

• Semiconductor and electronics assembly

• Laboratory automation equipment

• Compact robotics and actuators

• Precision dispensers and feeders

• Space-limited industrial machinery

Why Choose the HG-KR053

• Ultra-Compact Design: Fits tight control cabinet spaces

• High Accuracy: 22-bit encoder enables ultra-precise positioning

• Quiet and Smooth: Ideal for sensitive, noise-critical applications

• Reliable Build: IP65 protection for industrial-grade performance

• Seamless Integration: Fully compatible with Mitsubishi MR-J4 amplifiers

Order Now

The Mitsubishi HG-KR053 servo motor is available and ships worldwide.

Return to the Mitsubishi Servo Motor HG Series collection for more options in this family.

Explore our full range of Mitsubishi Servo Motors, delivering precision, high torque density, and advanced motion control solutions for industrial automation.
