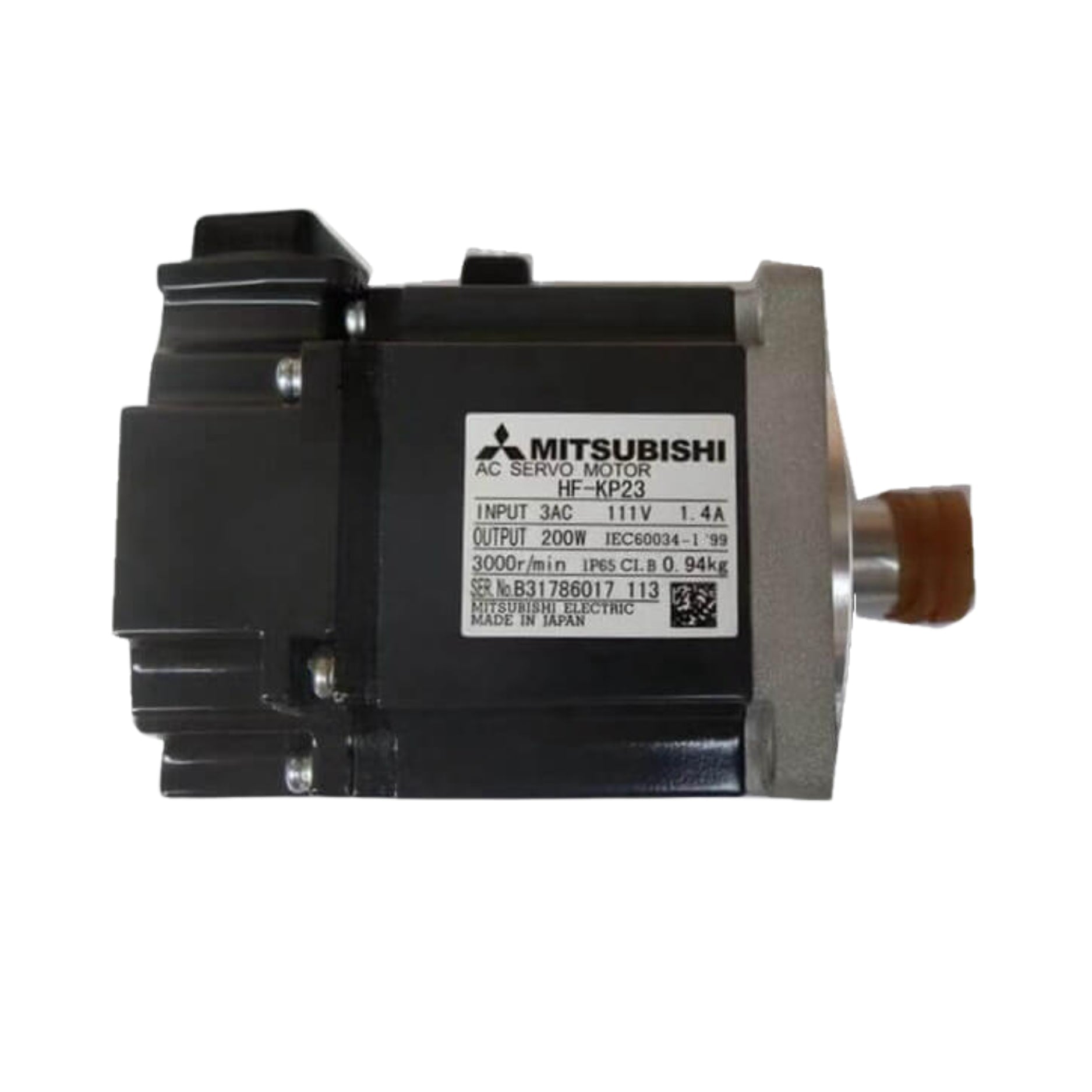

Mitsubishi HF-KP23

Mitsubishi HF-KP23

Overview

The Mitsubishi HF-KP23 is a 200W AC servo motor from the HF-KP series, known for its compact design, high-precision control, and reliable performance. It operates at 3000 RPM nominal speed, features a 131072 ppr incremental encoder, and is designed for use with Mitsubishi servo amplifiers, especially the MR-J3 and MR-J4 series.

Key Features

• Series: HF-KP

• Rated Output: 200W

• Rated Speed: 3000 RPM

• Max Speed: 6000 RPM

• Power Supply: 3-phase, 200V class

• Encoder Type: Incremental, 131072 pulses/rev

• Protection: IP65 (excluding shaft)

• Cooling Method: Natural convection

• Mounting Type: Flange mount

• Construction: Compact and lightweight

• Shaft: Straight with key

Technical Specifications

• Catalog Number: HF-KP23

• Rated Output Power: 200W

• Rated Torque: Approx. 0.64 Nm

• Peak Torque: Approx. 1.9 Nm

• Rated Speed: 3000 RPM

• Max Speed: 6000 RPM

• Rated Current: Approx. 1.6 A

• Voltage Class: 3-phase 200V

• Encoder Resolution: 131072 pulses/rev (incremental)

• Protection Rating: IP65 (except shaft)

• Ambient Temperature: 0°C to 40°C

• Weight: ≈ 1.2 kg

• Compatible Amplifiers: MR-J3/MR-J4 series

Applications

• Positioning systems

• Packaging machines

• Conveyors and feeders

• Semiconductor equipment

• Compact motion control machinery

Why Choose the HF-KP23

• Compact Power: 200W motor in a small form factor

• High Precision: 131072 ppr encoder for accurate positioning

• Energy Efficient: Low current consumption and natural cooling

• Versatile Integration: Ideal for space-constrained OEM applications

• Reliable Build: Mitsubishi quality for long-term operation

Order Now

The Mitsubishi HF-KP23 servo motor is available and ships worldwide.

Return to Mitsubishi HF Series Servo Motors for more options in this product line.

Explore our complete range of Mitsubishi Servo Motors, including HF, HC, and other high-performance AC servo models for motion control and automation.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
