Mitsubishi HF-KN23

Mitsubishi HF-KN23

Overview

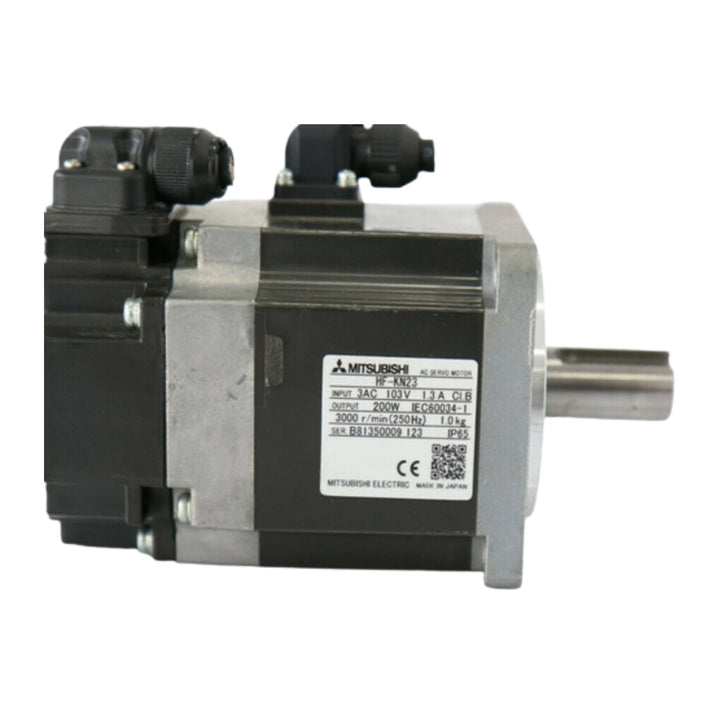

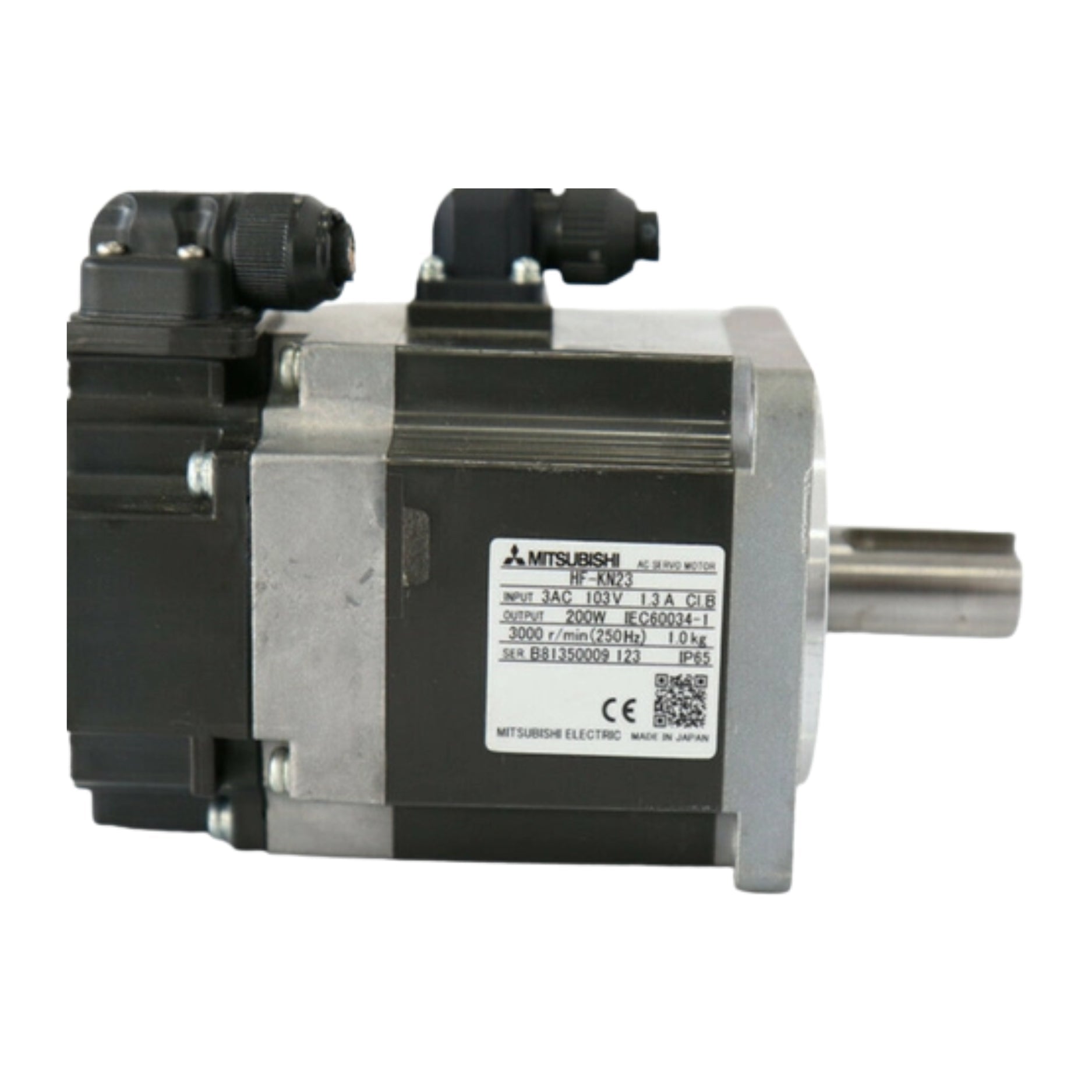

The Mitsubishi HF-KN23 is a 200 W AC servo motor from the HF-KN series, built for high-speed, high-response motion control in compact automation systems. With a rated speed of 3,000 rpm and incremental encoder feedback, it delivers accurate positioning and smooth operation for a wide range of industrial machinery.

Key Features

• Power Rating: 200 W

• Rated Speed: 3,000 rpm

• Encoder: Incremental (131,072 pulses/rev)

• Low-inertia rotor design

• Shaft with key and without oil seal

• Compact frame for space-saving installations

• Compatible with MR-J3/MR-J4 servo amplifiers

• High precision and fast acceleration response

Technical Specifications

• Model Number: HF-KN23

• Output Power: 200 W

• Voltage: 200 V AC

• Rated Torque: Approx. 0.64 Nm

• Maximum Torque: Approx. 1.9 Nm

• Rotor Inertia: 0.047 × 10⁻⁴ kg·m²

• Encoder Type: Incremental, 131,072 p/rev

• Protection: IP65 (excluding shaft)

• Cooling: Natural convection

• Mounting: Flange-mounted

• Ambient Temperature: 0 °C to +40 °C

• Certifications: CE, UL, RoHS

Applications

• Pick-and-place machines

• Small robotics and actuators

• Precision conveyors

• Electronic parts assembly

• Equipment needing compact servo motion

Why Choose the HF-KN23

• Optimized for compact, high-speed automation

• Precision feedback with high-resolution encoder

• Easy integration with Mitsubishi servo drives

• Ideal for OEMs and machine builders

• Proven reliability in demanding environments

Order Now

The Mitsubishi HF-KN23 servo motor is available and ships worldwide.
