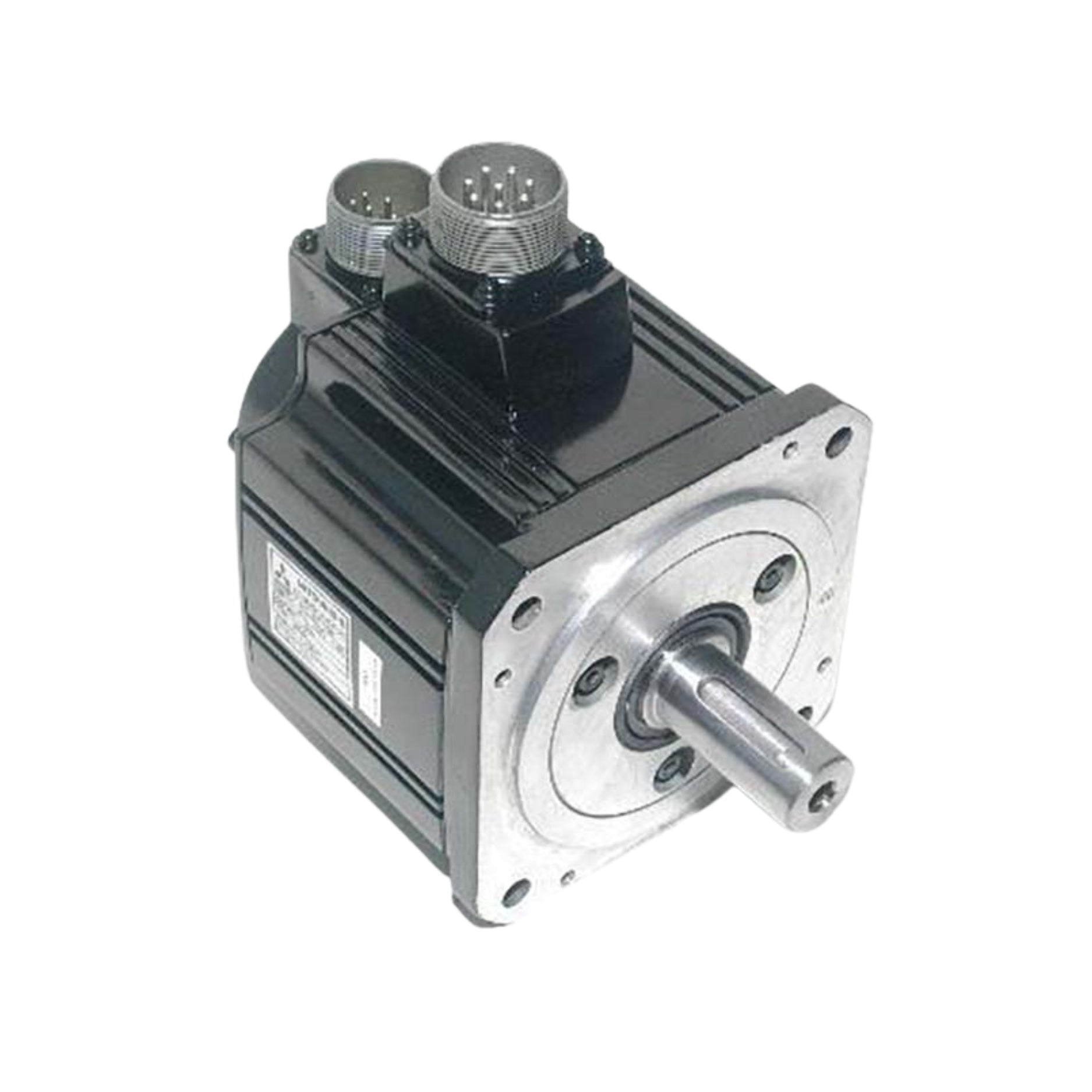

Mitsubishi HC-SFS102

Mitsubishi HC-SFS102 | 1kW Medium Inertia Servo Motor – HC-SFS Series

Overview

The Mitsubishi HC-SFS102 is a 1kW AC servo motor from the HC-SFS medium inertia series, engineered for robust, accurate motion control in industrial applications. Operating at 200V with a rated speed of 3000 RPM, it delivers the balance of speed, torque, and inertia required for stable and responsive performance in automation environments.

Key Features

• Rated Output: 1kW

• Rated Speed: 3000 RPM

• Voltage Class: 200V AC

• Medium Inertia: Provides smoother motion and better load matching

• Encoder Type: Incremental (standard)

• Compact & Rigid: Ideal for demanding industrial applications

• Mounting Style: Flange mount

Technical Specifications

• Model: HC-SFS102

• Series: HC-SFS

• Rated Torque: Approx. 3.2 Nm

• Peak Torque: Approx. 9.6 Nm

• Maximum Speed: Up to 5000 RPM

• Cooling Method: Natural cooling

• Protection Rating: IP65 (excluding shaft)

• Insulation Class: F

• Operating Temperature: 0°C to 40°C

• Weight: Approx. 4.4 kg

• Certifications: CE, UL

Applications

• Machine tools

• Press and forming machinery

• Robotics and gantry systems

• CNC machinery

• Conveyor and transport systems

Why Choose the HC-SFS102?

• Medium Inertia: Ideal for stable, smooth performance across various loads

• Proven Reliability: Mitsubishi engineering ensures industrial-grade operation

• Compact Power: High output in a manageable size

• Flexible Integration: Suited for a range of automated systems

Order Now

The Mitsubishi HC-SFS102 is available and ready for global delivery.

Discover more options in the Mitsubishi Servo Motor HC Series.

return to the full Mitsubishi Servo Motors collection for a complete range of motion control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
