Mitsubishi HC-SF152K

Mitsubishi HC-SF152K

Overview

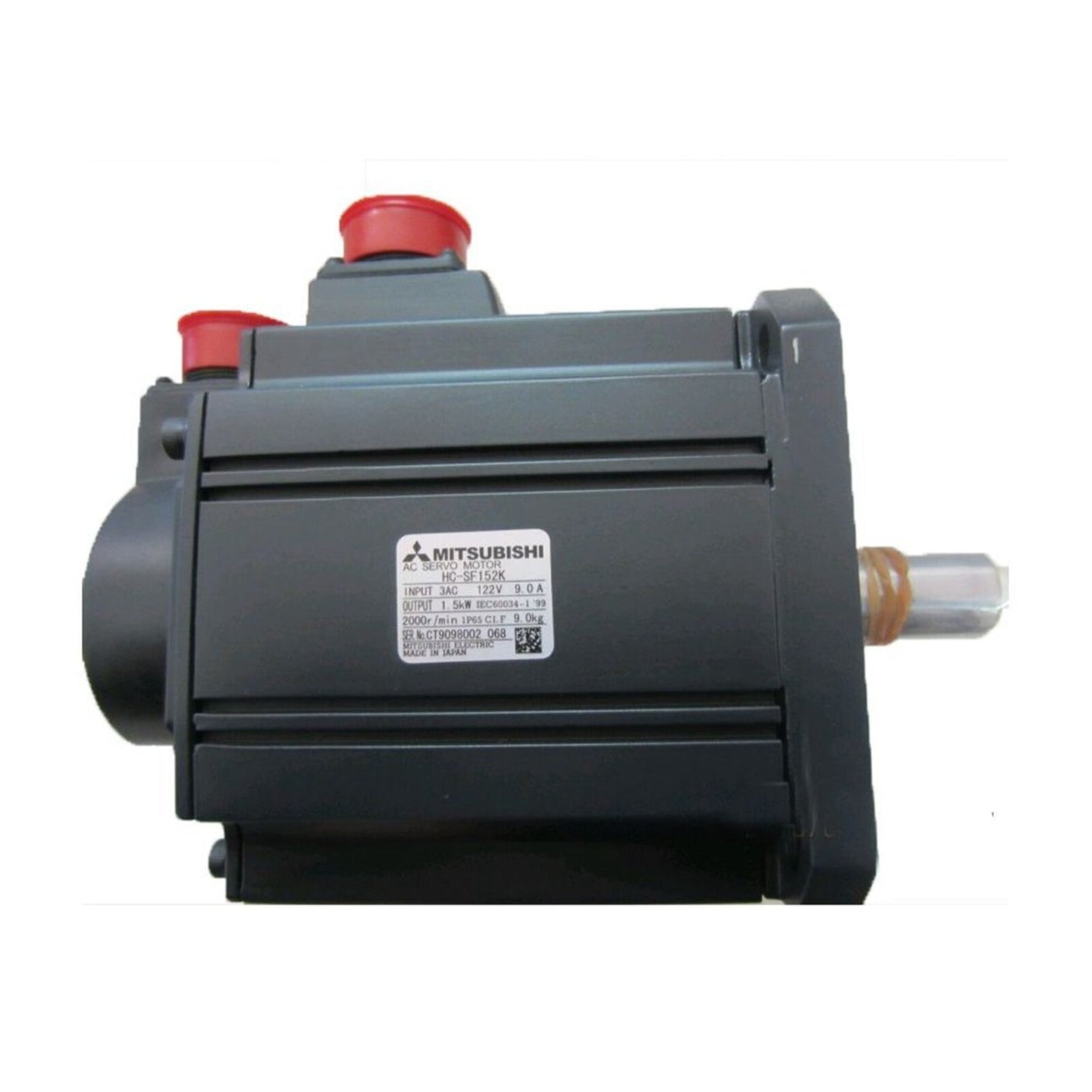

The Mitsubishi HC-SF152K is a 1.5kW AC servo motor from the HC-SF series, designed for high-performance motion control in industrial applications. With a rated speed of 3000 RPM, keyed shaft, and flange mount configuration, this 3-phase motor provides precision, reliability, and smooth operation when paired with Mitsubishi servo amplifiers.

Key Features

• Series: HC-SF

• Rated Output: 1.5kW

• Rated Speed: 3000 RPM

• Power Supply: 3-phase, 200V class

• Mounting: Flange mount

• Shaft Type: Keyed shaft

• Cooling Method: Natural convection

• Protection Class: IP65 (excluding shaft)

• Construction: Compact, enclosed design

• Compatible Amplifiers: MR-J2S, MR-J3 series

• Encoder Type: Incremental (typically 131072 ppr)

Technical Specifications

• Catalog Number: HC-SF152K

• Rated Output Power: 1.5kW

• Rated Torque: Approx. 4.8 Nm

• Peak Torque: Approx. 14.3 Nm

• Rated Speed: 3000 RPM

• Max Speed: 5000–6000 RPM (motor dependent)

• Voltage Class: 3-phase 200V

• Insulation Class: Class F

• Protection Rating: IP65 (excluding shaft)

• Ambient Temperature: 0°C to 40°C

• Mounting Type: Flange mount

• Weight: ≈ 8.5 kg

Applications

• CNC machines and machining centers

• Packaging and labeling systems

• Industrial automation lines

• Robotic arms and pick-and-place systems

• High-speed conveyor and feed drives

Why Choose the HC-SF152K

• Reliable 1.5kW Output: Powerful yet compact

• Durable Construction: Built to withstand harsh industrial environments

• Precision Control: Smooth motion with high-resolution encoder feedback

• Versatile Integration: Compatible with Mitsubishi MR-J2S and MR-J3 amplifiers

• Flange Mount + Keyed Shaft: Ideal for secure mechanical coupling

Order Now

The Mitsubishi HC-SF152K servo motor is available and ships worldwide.

Discover more options in the Mitsubishi Servo Motor HC Series.

return to the full Mitsubishi Servo Motors collection for a complete range of motion control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
