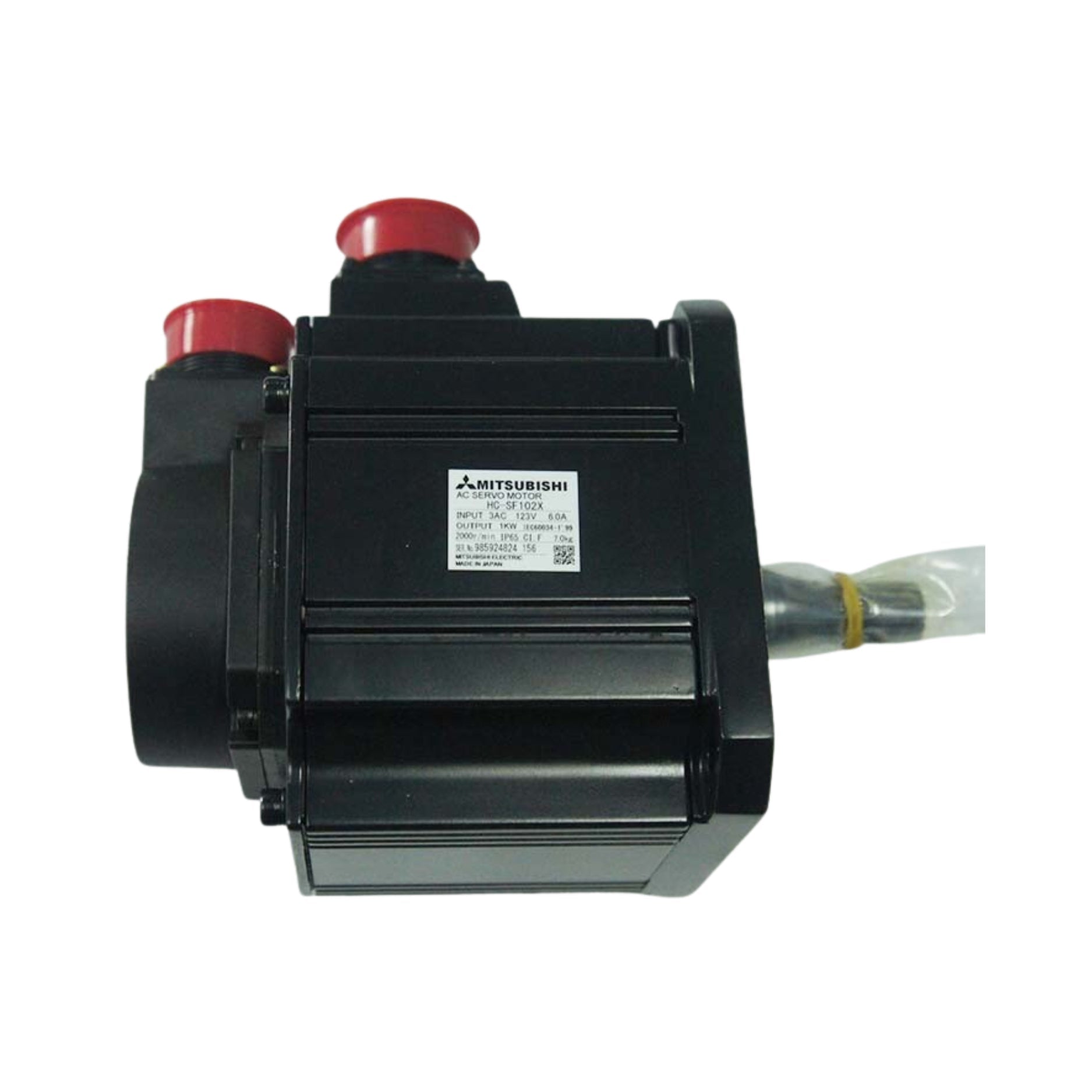

Mitsubishi HC-SF102X

Mitsubishi HC-SF102X

Overview

The Mitsubishi HC-SF102X is a high-performance 1 kW AC servo motor from the HC series, engineered for precision and dynamic motion control. Operating at 200 V and up to 3000 rpm, it offers excellent torque response, compact size, and compatibility with Mitsubishi servo amplifiers such as the MR-J2 series.

Key Features

• Rated Power: 1 kW

• Rated Voltage: 200 V AC

• Rated Speed: 3000 rpm

• High-response AC servo technology

• Compact and efficient frame design

• Equipped with precision encoder

• Ideal for high-speed, high-accuracy positioning

• Compatible with Mitsubishi servo drives (MR-J2, MR-J3)

Technical Specifications

• Catalog Number: HC-SF102X

• Rated Output: 1 kW

• Rated Torque: Approx. 3.18 Nm

• Peak Torque: Approx. 9.55 Nm

• Rated Current: Approx. 6.2 A

• Rated Speed: 3000 rpm

• Max Speed: 5000 rpm

• Power Supply: 3-phase 200 V AC

• Encoder: Incremental, 131,072 ppr

• Insulation Class: F

• Protection Class: IP65 (excluding shaft)

• Shaft: Keyed

Applications

• CNC machines and tool changers

• Packaging and labeling equipment

• Precision pick-and-place robots

• High-speed assembly lines

• Advanced positioning systems

Why Choose the HC-SF102X

• Fast, accurate motion with high torque response

• Compact design for flexible installation

• Reliable and robust Mitsubishi construction

• Seamless integration with MR-J2 and MR-J3 drives

• Designed for demanding industrial environments

Order Now

The Mitsubishi HC-SF102X servo motor is available and ships worldwide.

Discover more options in the Mitsubishi Servo Motor HC Series.

return to the full Mitsubishi Servo Motors collection for a complete range of motion control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
