Mitsubishi HC-MFS73

Mitsubishi HC-MFS73

Overview

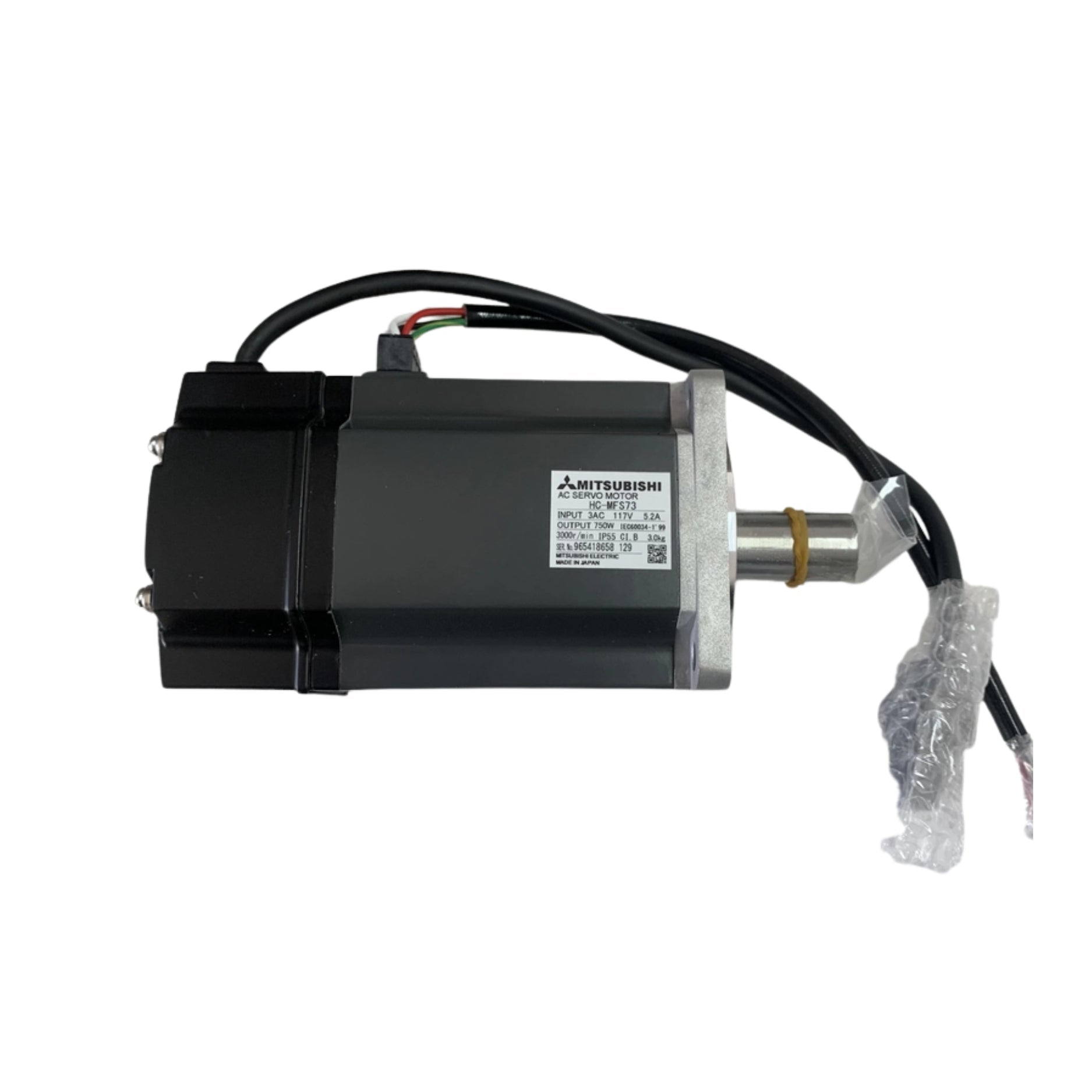

The Mitsubishi HC-MFS73 is a 750W AC servo motor designed for high-speed and high-precision motion applications. Operating at 3000 RPM and equipped with a shaft with key, this motor is part of the MELSERVO family, and is fully compatible with MR-J3 servo amplifiers. Its IP65 rating ensures protection in demanding industrial environments.

Key Features

• Rated Output: 750W

• Rated Speed: 3000 RPM

• Max Speed: 5000 RPM

• Voltage Class: 3-phase 200V

• Shaft Type: Straight shaft with key

• Protection Rating: IP65

• Compatible Drives: MR-J3 series servo amplifiers

• Encoder: 131,072 pulses/rev incremental

• Mounting: Flange mount

• Cooling Method: Natural cooling

Technical Specifications

• Model Number: HC-MFS73

• Rated Power: 750W

• Rated Torque: Approx. 2.39 Nm

• Max Torque: Approx. 7.2 Nm

• Rated Current: Approx. 4.5A

• Inertia: Low-inertia rotor design

• Encoder Type: Incremental 17-bit encoder

• Protection Class: IP65 (excluding shaft)

• Ambient Temperature: 0°C to 40°C

• Weight: ≈ 2.5 kg

• Certifications: CE, UL, RoHS

Applications

• Industrial robots

• CNC machinery

• Pick-and-place systems

• Precision conveyors

• Automated assembly lines

Why Choose the HC-MFS73

• High-Speed Performance: Up to 3000 RPM rated speed

• Reliable Compatibility: Optimized for MR-J3 drives

• Robust Design: IP65-rated for demanding environments

• Compact & Lightweight: Ideal for space-constrained applications

• Accurate Feedback: High-resolution encoder for precise control

Order Now

The Mitsubishi HC-MFS73 servo motor is available and ships worldwide.

Discover more options in the Mitsubishi Servo Motor HC Series.

return to the full Mitsubishi Servo Motors collection for a complete range of motion control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
