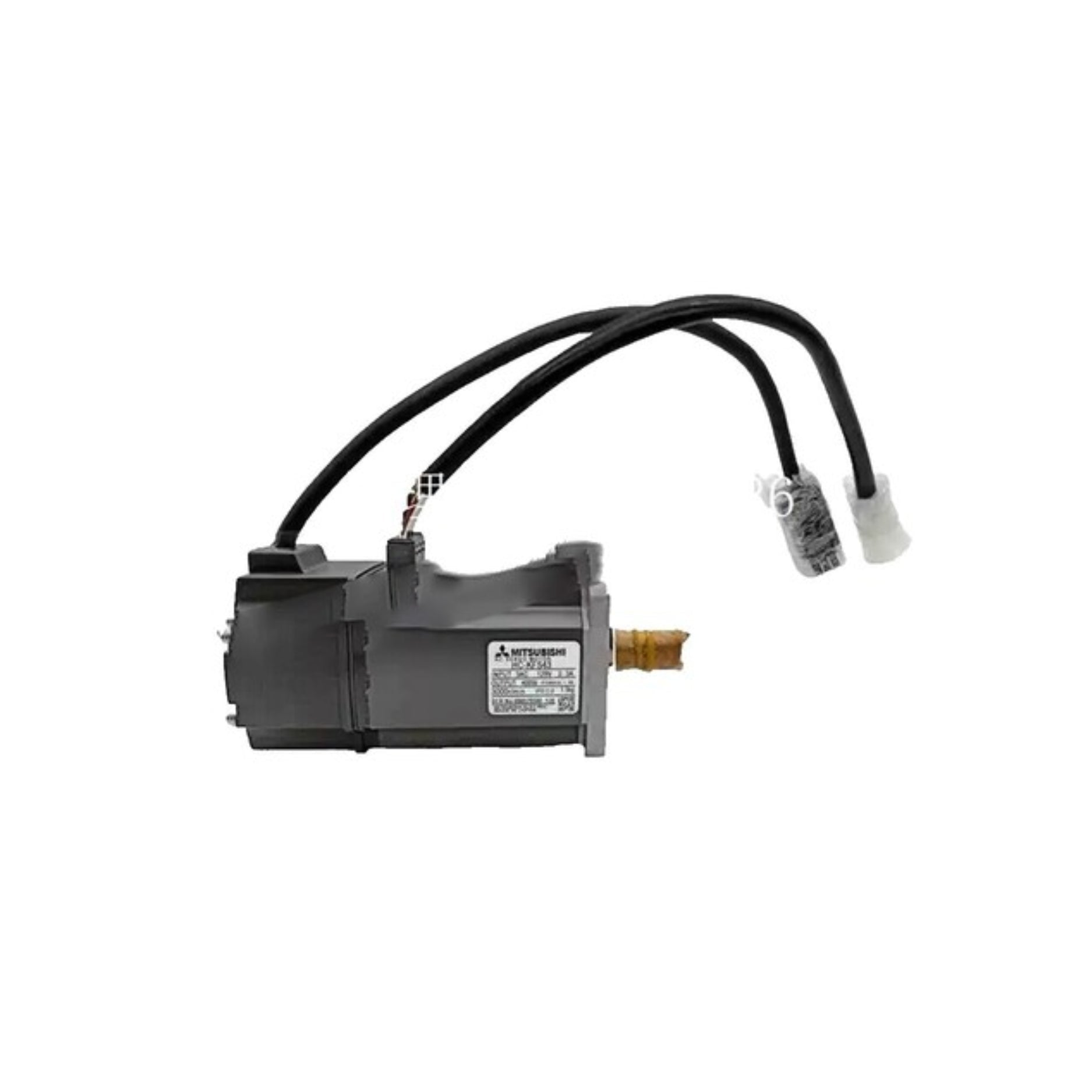

Mitsubishi HC-MF73K-S15

Mitsubishi HC-MF73K-S15

Overview

The Mitsubishi HC-MF73K-S15 is a 750 W AC servo motor from the HC‑MF series, offering high torque and responsiveness in a compact package. Featuring a high-resolution incremental encoder, it is well-suited for precision automation applications in industrial machines, robotics, and material handling.

Key Features

• Rated Power: 750 W

• Rated Speed: 3000 rpm (max 6000 rpm)

• Encoder: Incremental (131,072 pulses/rev)

• Keyed shaft for secure coupling

• Compact flange-mount design

• Low rotor inertia ensures fast response

• IP65-rated housing (excluding shaft)

• Compatible with Mitsubishi MR-J3 and MR-J4 servo amplifiers

Technical Specifications

• Model Number: HC-MF73K-S15

• Rated Torque: Approx. 3.5 Nm

• Peak Torque: Approx. 10.5 Nm

• Rated Voltage: 200 V AC

• Rotor Inertia: ~0.30 × 10⁻⁴ kg·m²

• Encoder Type: Incremental, 131,072 p/rev

• Mounting: Flange

• Cooling: Natural convection

• Operating Temp: 0 °C to +40 °C

• Certifications: CE, UL, RoHS

Applications

• Packaging and labeling machinery

• Small robotics and articulated arms

• Precision conveyors and indexing systems

• Lab automation and test equipment

• Electronic parts assembly

Why Choose the HC-MF73K-S15

• Combines high torque with compact dimensions

• Precision feedback enables accurate motion control

• Fast dynamic response for complex applications

• Seamless integration with Mitsubishi servo systems

• Engineered for dependable industrial performance

Order Now

The Mitsubishi HC-MF73K-S15 servo motor is available and ships worldwide.

Discover more options in the Mitsubishi Servo Motor HC Series.

return to the full Mitsubishi Servo Motors collection for a complete range of motion control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
