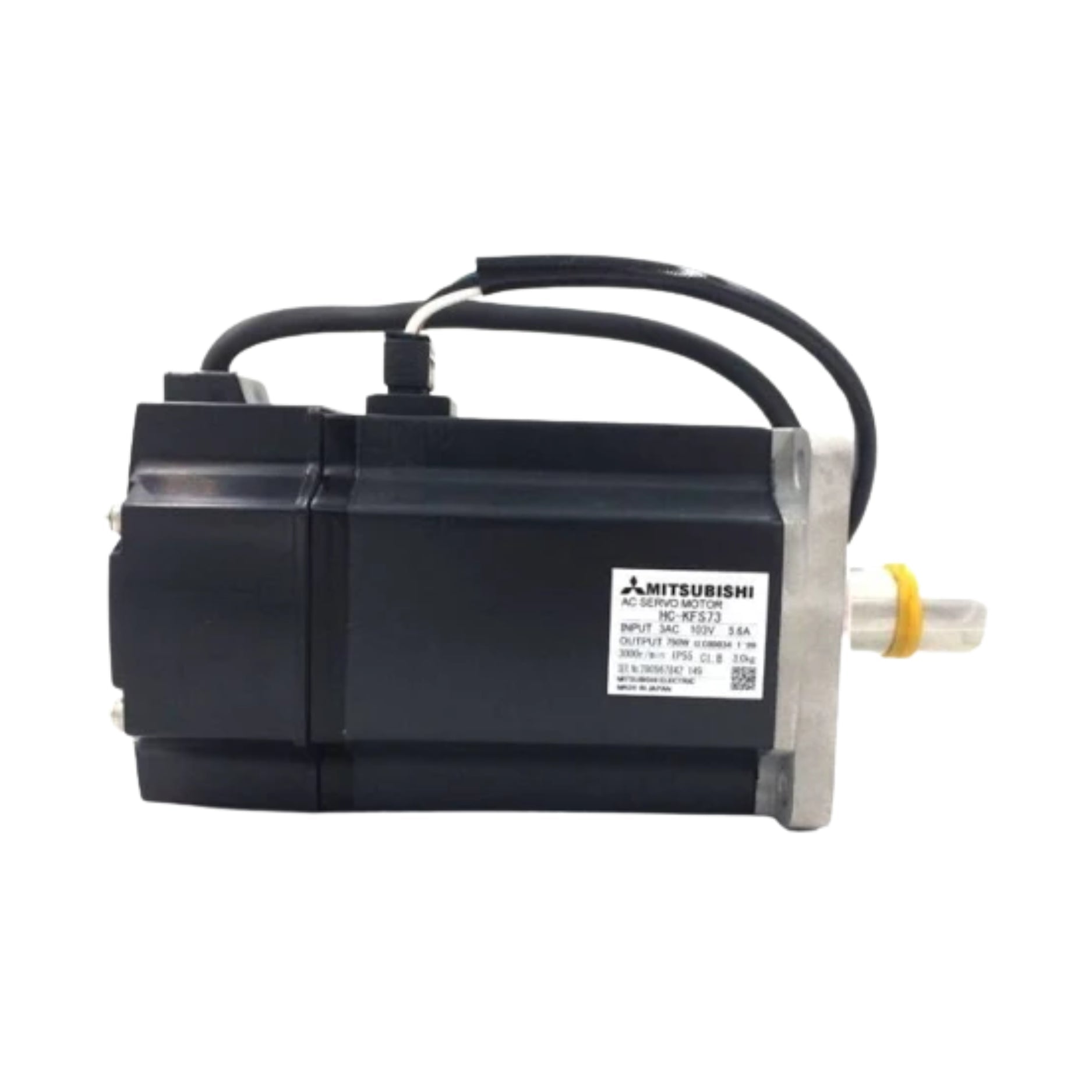

Mitsubishi HC-KFS73 | 750W AC Servo Motor – Low Inertia Series

Overview

The Mitsubishi HC-KFS73 is a 750W low-inertia AC servo motor engineered for precision and high-speed performance in automation systems. Designed for use with MR-J2 series servo amplifiers, it offers a compact footprint with excellent torque and responsiveness, making it ideal for fast-cycle industrial machinery.

Key Features

• Rated Output Power: 750W (0.75 kW)

• Rated Voltage: 200V AC

• Rated Speed: 3000 RPM

• Maximum Speed: 5000 RPM

• Low Inertia Design: Quick acceleration and deceleration

• Encoder Type: Incremental encoder (131,072 pulses/rev)

• Compact and Lightweight: Easy to integrate into tight spaces

• Precision Motion: Ideal for fast, repetitive tasks

Technical Specifications

• Model: HC-KFS73

• Series: HC-KFS

• Rated Torque: Approx. 2.4 Nm

• Peak Torque: Approx. 7.1 Nm

• Frame Size: 90 mm

• Mounting: Flange

• Protection Class: IP65 (excluding shaft and connectors)

• Insulation Class: F

• Ambient Temperature: 0°C to 40°C

• Weight: Approx. 3.4 kg (7.5 lbs)

• Compatible Drives: Mitsubishi MR-J2 series

Applications

• Pick-and-place machinery

• Semiconductor equipment

• Packaging systems

• Positioning tables

• High-speed conveyors

Why Choose the HC-KFS73?

• Fast Response: Low inertia for high-speed cycles

• Reliable Construction: Durable and resistant to harsh environments

• Precise Control: High-resolution encoder ensures accurate feedback

• Flexible Use: Perfect fit for MR-J2 servo systems

Order Now

The Mitsubishi HC-KFS73 servo motor is available and ready for immediate shipment.

Discover more options in the Mitsubishi Servo Motor HC Series.

return to the full Mitsubishi Servo Motors collection for a complete range of motion control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
