Mitsubishi HC-KFS23

Mitsubishi HC-KFS23

Overview

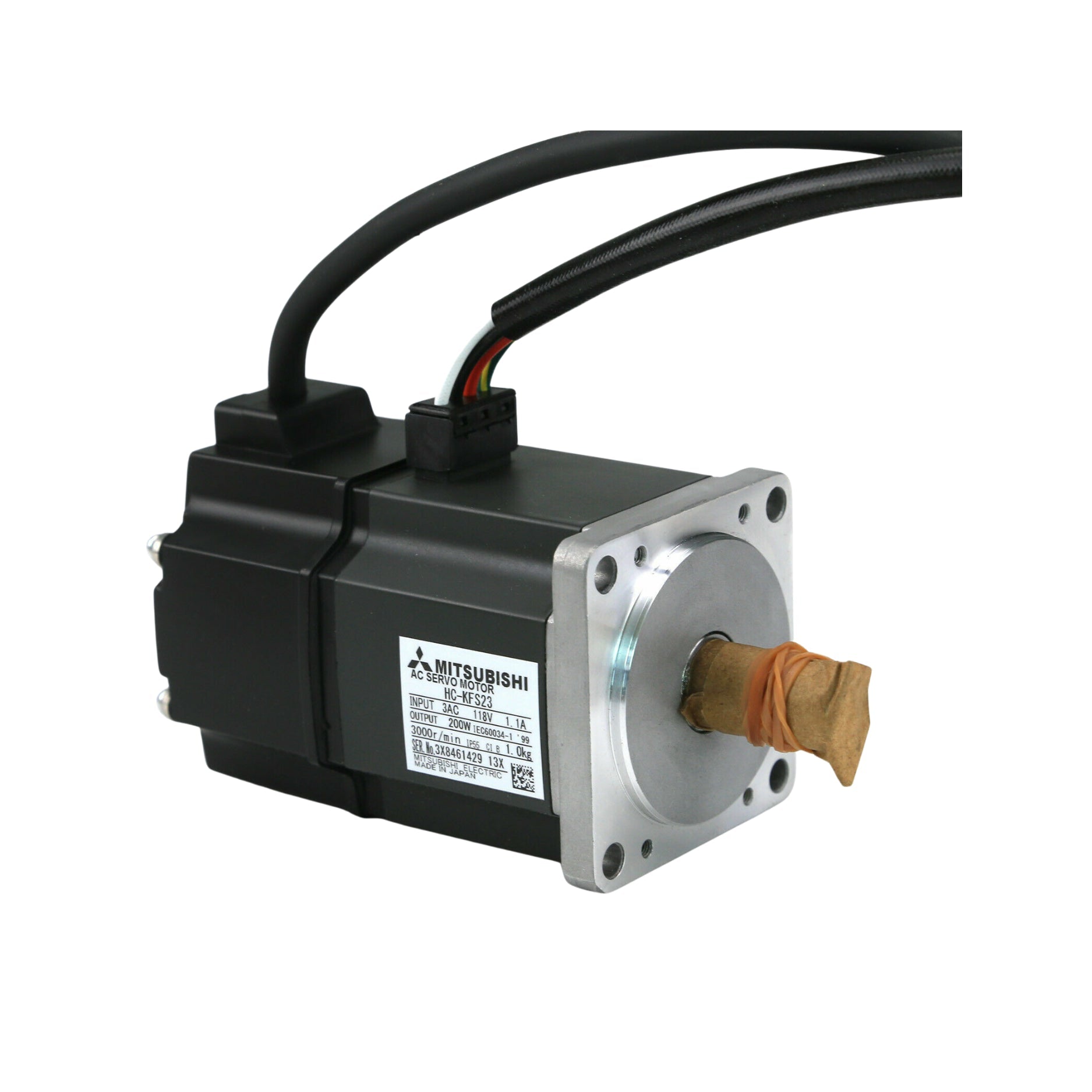

The Mitsubishi HC-KFS23 is a 200W low-inertia AC servo motor designed for precision motion control in compact machinery. It delivers 3000 RPM nominal speed and features a keyed shaft, robust IP65 protection, and seamless compatibility with MR-J2S servo amplifiers, making it ideal for responsive, space-constrained applications.

Key Features

• Power Rating: 200W

• Rated Speed: 3000 RPM

• Max Speed: 5000 RPM

• Voltage Class: 3-phase 200V

• Shaft Type: Straight shaft with key

• Protection Rating: IP65 (excluding shaft portion)

• Motor Type: Low-inertia

• Encoder: 131,072 pulses/rev incremental

• Mounting: Flange mount

• Cooling Method: Natural convection

Technical Specifications

• Model Number: HC-KFS23

• Rated Power: 200W

• Rated Torque: Approx. 0.64 Nm

• Max Torque: Approx. 1.91 Nm

• Rated Current: Approx. 1.7 A

• Rotor Inertia: 0.072 J (kg·cm²)

• Encoder Type: 17-bit incremental

• Ambient Temperature: 0°C to 40°C

• Protection Class: IP65

• Insulation Class: F

• Weight: ≈ 1.1 kg

• Certifications: CE, UL, RoHS

Applications

• Compact robotic systems

• Pick-and-place units

• Small conveyors and actuators

• Medical and packaging machines

• Semiconductor and inspection equipment

Why Choose the HC-KFS23

• Compact & Lightweight: Fits into tight machine spaces

• Fast Response: Low-inertia for rapid acceleration

• Durable Design: IP65 rating ensures reliable performance

• Precision Feedback: High-resolution encoder

• Plug-and-Play: Fully compatible with MR-J2S amplifiers

Order Now

The Mitsubishi HC-KFS23 servo motor is available and ships worldwide.

Discover more options in the Mitsubishi Servo Motor HC Series.

return to the full Mitsubishi Servo Motors collection for a complete range of motion control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
