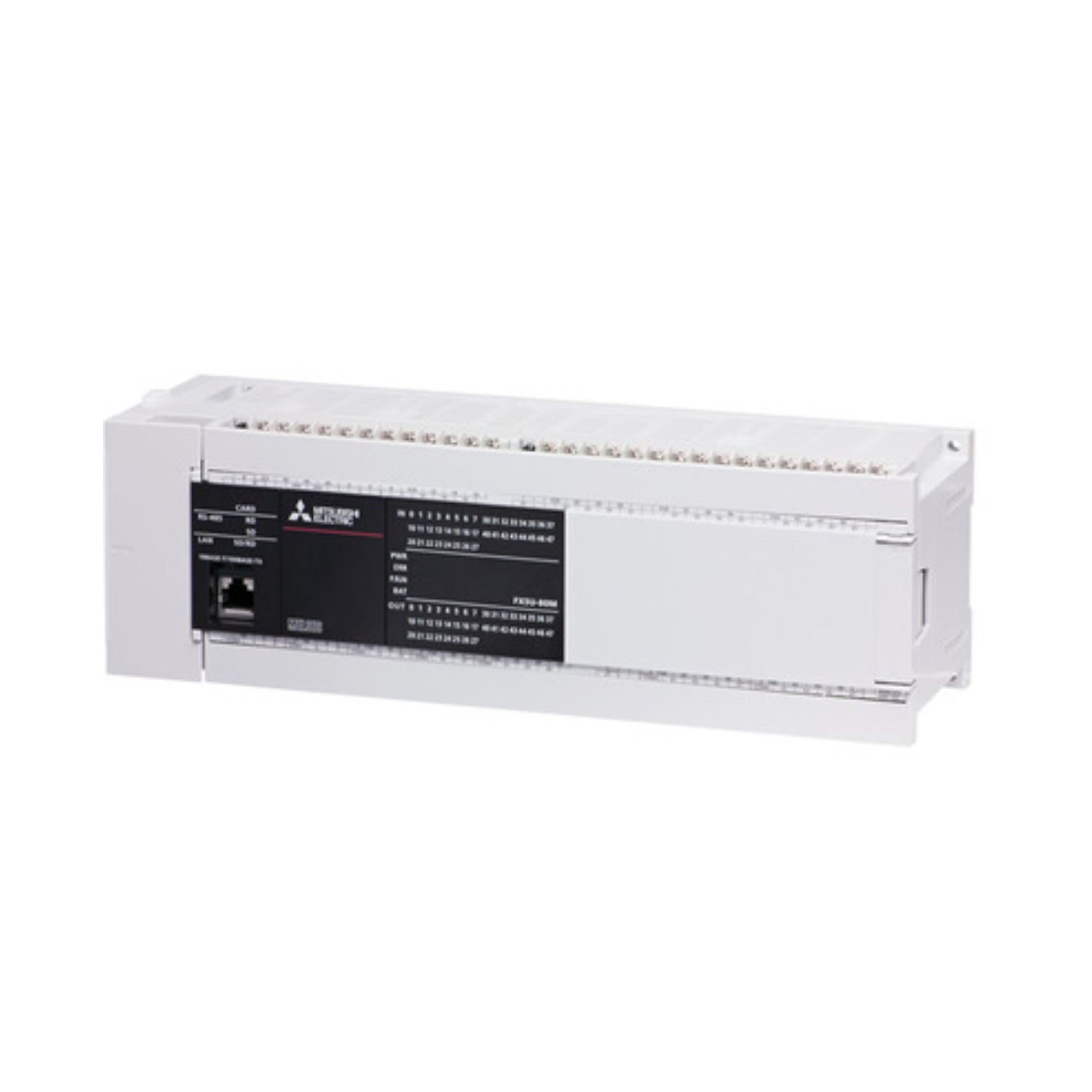

Mitsubishi FX5U-80MT-ES

Mitsubishi FX5U-80MT-ES

Overview

The Mitsubishi FX5U-80MT-ES is a high-performance PLC main unit from the FX5U series, part of the iQ-F platform. It features 80 total I/O points (40 inputs and 40 transistor sink outputs), a 100–240 V AC power supply, and advanced capabilities such as high-speed processing, built-in Ethernet, data logging, and motion control.

Key Features

• Total I/O: 80 points (40 inputs, 40 transistor sink outputs)

• Power Supply: 100–240 V AC

• Output Type: Transistor (Sink)

• Built-in Ethernet, USB, and SD card slot

• High-speed pulse output and counter inputs

• Data logging and web server functionality

• Expandable with FX5 expansion modules

• Compatible with GX Works3 programming software

Technical Specifications

• Catalog Number: FX5U-80MT-ES

• Inputs: 40 digital (sink/source selectable)

• Outputs: 40 transistor sink (0.5 A max per point)

• Program Capacity: 128,000 steps

• Data Registers: 64,000 words

• Input Voltage: 100–240 V AC, 50/60 Hz

• Communication: Ethernet, USB Device, RS-485 (via adapter)

• Mounting: DIN rail or panel

• Protection Class: IP10 (open type)

• Operating Temperature: 0 °C to +55 °C

• Certifications: CE, UL, cUL, RoHS

Applications

• Advanced factory automation

• Multi-axis machine control

• Packaging, assembly, and labeling systems

• OEM and scalable control panels

• Real-time monitoring and IoT-ready installations

Why Choose the FX5U-80MT-ES

• Fast and flexible PLC for modern automation

• Built-in communication and motion features

• Large program capacity with future-proof design

• Reliable Mitsubishi performance and support

• Ideal for high-speed, high-I/O industrial systems

Order Now

The Mitsubishi FX5U-80MT-ES PLC is available and ships worldwide.

Return to the Mitsubishi FX5 Series PLC collection for more options in this family.

Explore our full range of Mitsubishi MELSEC Programmable Controllers (PLC) to discover scalable automation solutions, from legacy systems to next-generation PLCs designed for high performance, connectivity, and flexibility.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
