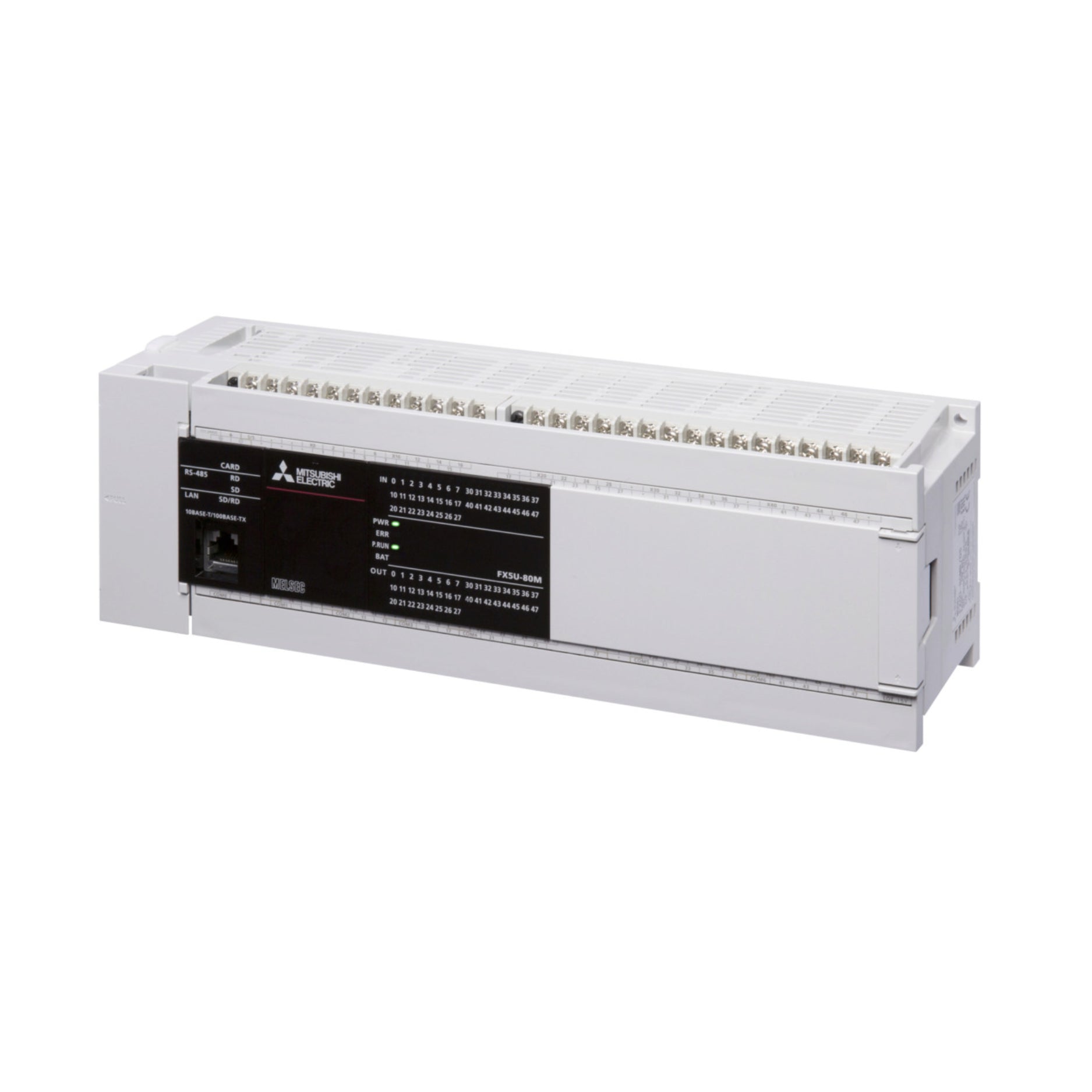

Mitsubishi FX5U-80MR/DS

Mitsubishi FX5U-80MR/DS | 80 I/O Relay Output PLC for MELSEC iQ-F Series

Overview

The Mitsubishi FX5U-80MR/DS is a high-performance Programmable Logic Controller (PLC) from the MELSEC iQ-F Series, designed for scalable and efficient automation systems. With 40 digital inputs and 40 relay outputs, it offers versatile control capabilities. Its 24V DC power supply and 64K steps of program memory make it suitable for complex control tasks. Built-in Ethernet and RS-485 ports facilitate seamless integration and communication within modern automation environments.

Key Features

• Integrated I/O: 40 digital inputs (24V DC sink/source), 40 relay outputs (2A at 30V DC or 240V AC)

• Power Supply: 24V DC

• Program Memory: 64K steps (battery-backed RAM)

• Processing Speed: 0.065 μs per basic instruction

• Expansion Capability: Up to 512 I/O points with additional modules

• Communication Ports: Built-in Ethernet, RS-485

• Mounting: DIN rail or panel mount

• Real-Time Clock: Integrated

• Protection Rating: IP10 (open type)

Technical Specifications

• Model: FX5U-80MR/DS

• Series: MELSEC iQ-F

• Input Voltage Range: 20.4–28.8V DC

• Power Consumption: 45W

• Dimensions (W × H × D): 285 × 90 × 83 mm

• Weight: Approximately 1.2 kg

• Operating Temperature: 0°C to 55°C

• Storage Temperature: -25°C to 75°C

• Certifications: CE, UL, cUL, UKCA

• Environmental Compliance: RoHS compliant

Applications

• Manufacturing automation

• Process control systems

• Building management systems

• Material handling and logistics

• Energy management systems

Why Choose the FX5U-80MR/DS?

• High-Speed Processing: 0.065 μs per basic instruction ensures rapid response times.

• Flexible Expansion: Supports a wide range of expansion modules for I/O, analog, and communication.

• Integrated Features: Real-time clock and battery-backed memory enhance reliability.

• Global Compliance: Meets international standards for safety and environmental regulations.

Order Now

The Mitsubishi FX5U-80MR/DS PLC is available for global shipping.

Return to the Mitsubishi FX5 Series PLC collection for more options in this family.

Explore our full range of Mitsubishi MELSEC Programmable Controllers (PLC) to discover scalable automation solutions, from legacy systems to next-generation PLCs designed for high performance, connectivity, and flexibility.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
