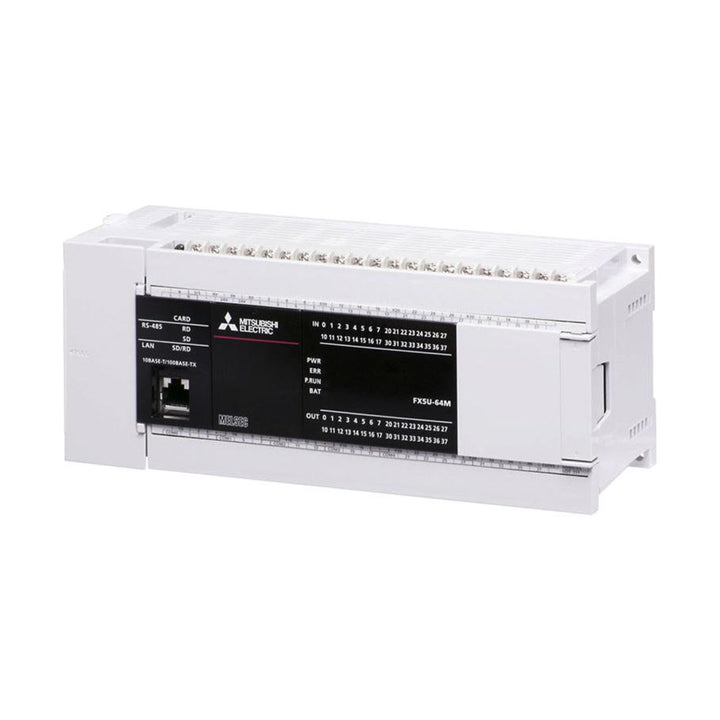

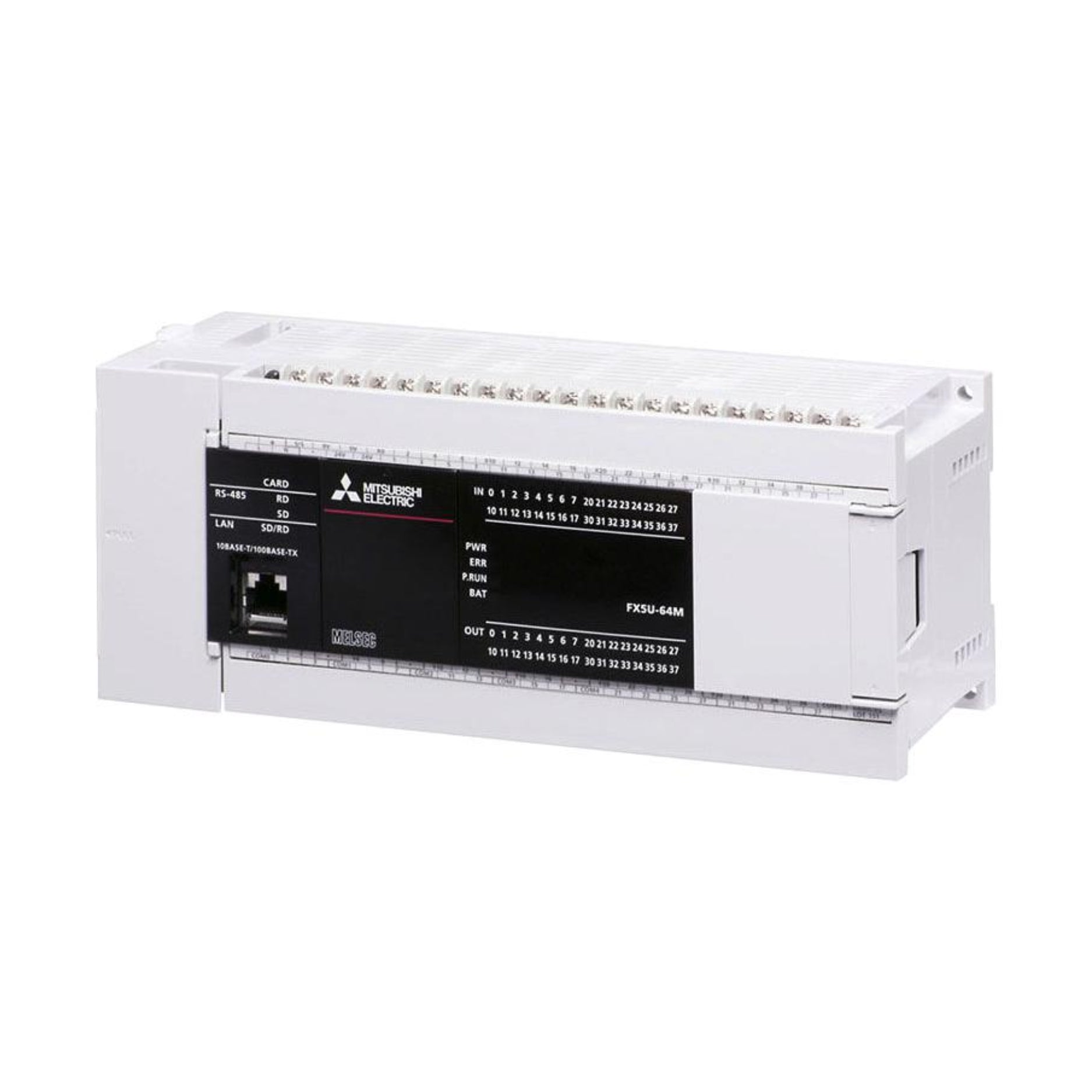

Mitsubishi FX5U‑64MT‑ESS

Mitsubishi FX5U‑64MT‑ESS

Overview

The Mitsubishi FX5U‑64MT‑ESS is a robust PLC main unit in the advanced FX5U (iQ‑F) platform. With 64 I/O points (32 inputs and 32 transistor sink outputs) and a 24 V DC supply, it features high-speed processing, versatile communication options, data logging, and motion support, all packed into a compact design.

Key Features

• 64 I/O points (32 inputs, 32 transistor sink outputs)

• Output Type: Transistor (sink)

• Power Supply: 24 V DC

• Integrated Ethernet, USB, and SD card slot

• High-speed pulse outputs and counters

• Expandable with FX5 modules

• Real-time clock and web server functionality

• Compatible with GX Works3 programming software

Technical Specifications

• Catalog Number: FX5U‑64MT‑ESS

• Inputs: 32 digital (sink/source selectable)

• Outputs: 32 transistor sink (0.5 A per point max)

• Program Capacity: 128,000 steps

• Data Registers: 64,000 words

• Input Voltage: 24 V DC ±10%

• Communication: Ethernet, USB Device, RS‑485 (via adapter)

• Mounting: DIN rail or panel

• Dimensions: Approx. 285 × 90 × 83 mm (W×H×D)

• Protection Class: IP10 (open type)

• Operating Temp: 0 °C to +55 °C

• Certifications: CE, UL, cUL, RoHS

Applications

• Multi-axis motion control

• Packaging and assembly systems

• OEM control panels

• Real-time monitoring and data logging

• IIoT-enabled and scalable factory automation

Why Choose the FX5U‑64MT‑ESS

• Massive I/O capacity in a compact footprint

• Advanced integrated communication and motion capabilities

• Flexible expansion for growing automation needs

• Trusted Mitsubishi FX5U reliability and support

• Ideal for mid‑size systems requiring high I/O and speed

Order Now

The Mitsubishi FX5U‑64MT‑ESS PLC is available and ships worldwide.
