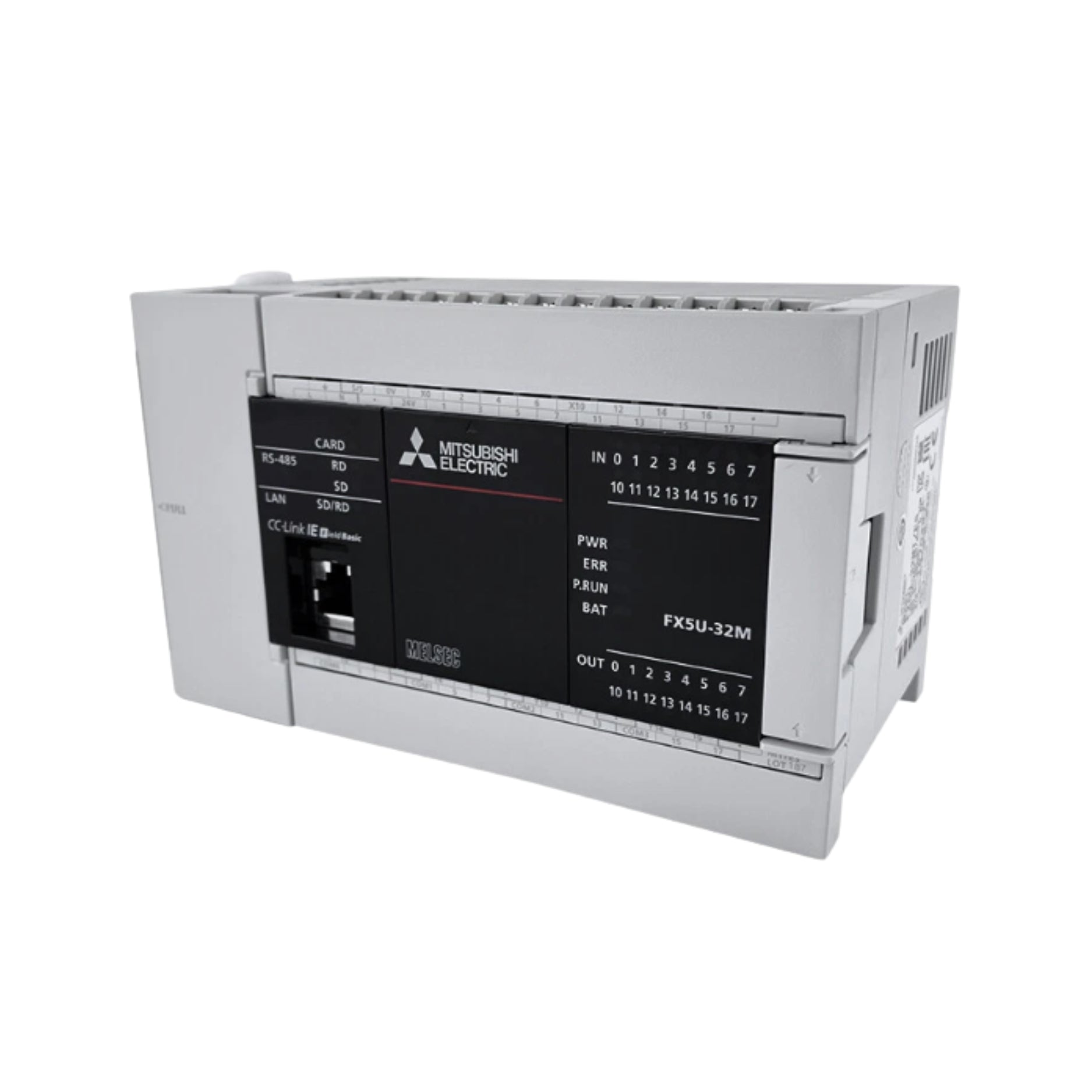

Mitsubishi FX5U-32MT-DS

Mitsubishi FX5U-32MT-DS

Overview

The Mitsubishi FX5U-32MT-DS is a compact and powerful PLC CPU module from the FX5U Series, featuring 32 digital I/O points (16 inputs and 16 transistor outputs). Operating at 24V DC, it offers high-speed processing, built-in Ethernet, USB, analog, and pulse output functions, making it a versatile controller for a wide range of automation tasks.

Key Features

• Series: FX5U (iQ-F Series)

• Power Supply: 24V DC

• I/O Points: 32 total (16 inputs, 16 transistor outputs)

• Output Type: Sink transistor

• Integrated Functions: Ethernet, USB, high-speed counters, analog I/O

• Program Memory: 64,000 steps

• Data Memory: 128,000 words

• Communication Ports: Ethernet, USB Device

• Mounting: DIN rail or panel mount

Technical Specifications

• Model Number: FX5U-32MT-DS

• Power Supply Voltage: 24V DC

• Digital Inputs: 16 (sink/source selectable)

• Digital Outputs: 16 (sink transistor)

• Rated Output Current: 0.5A per point, 4A per common

• High-Speed Counters: 8 channels (200 kHz)

• Pulse Outputs: 4 channels (200 kHz)

• Program Capacity: 64k steps

• Ambient Temperature: 0°C to 55°C

• Protection Rating: IP10 (installed in panel)

• Certifications: CE, UL, cUL, RoHS

• Dimensions: Approx. 90 x 150 x 83 mm

• Weight: ≈ 0.55 kg

Applications

• Small to mid-sized machine automation

• Pick-and-place and packaging systems

• Conveyor line control

• Intelligent lighting and energy management

• Advanced positioning with stepper/servo motors

Why Choose the FX5U-32MT-DS

• All-in-One Design: Integrated comms and I/O for flexibility

• High-Speed Performance: Fast control response for demanding tasks

• Expandable: Supports expansion modules for additional I/O or features

• Cost-Effective: Combines multiple control functions in one compact module

• Easy Programming: Compatible with GX Works3 software

Order Now

The Mitsubishi FX5U-32MT-DS PLC is available and ships worldwide.

Return to the Mitsubishi FX5 Series PLC collection for more options in this family.

Explore our full range of Mitsubishi MELSEC Programmable Controllers (PLC) to discover scalable automation solutions, from legacy systems to next-generation PLCs designed for high performance, connectivity, and flexibility.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
