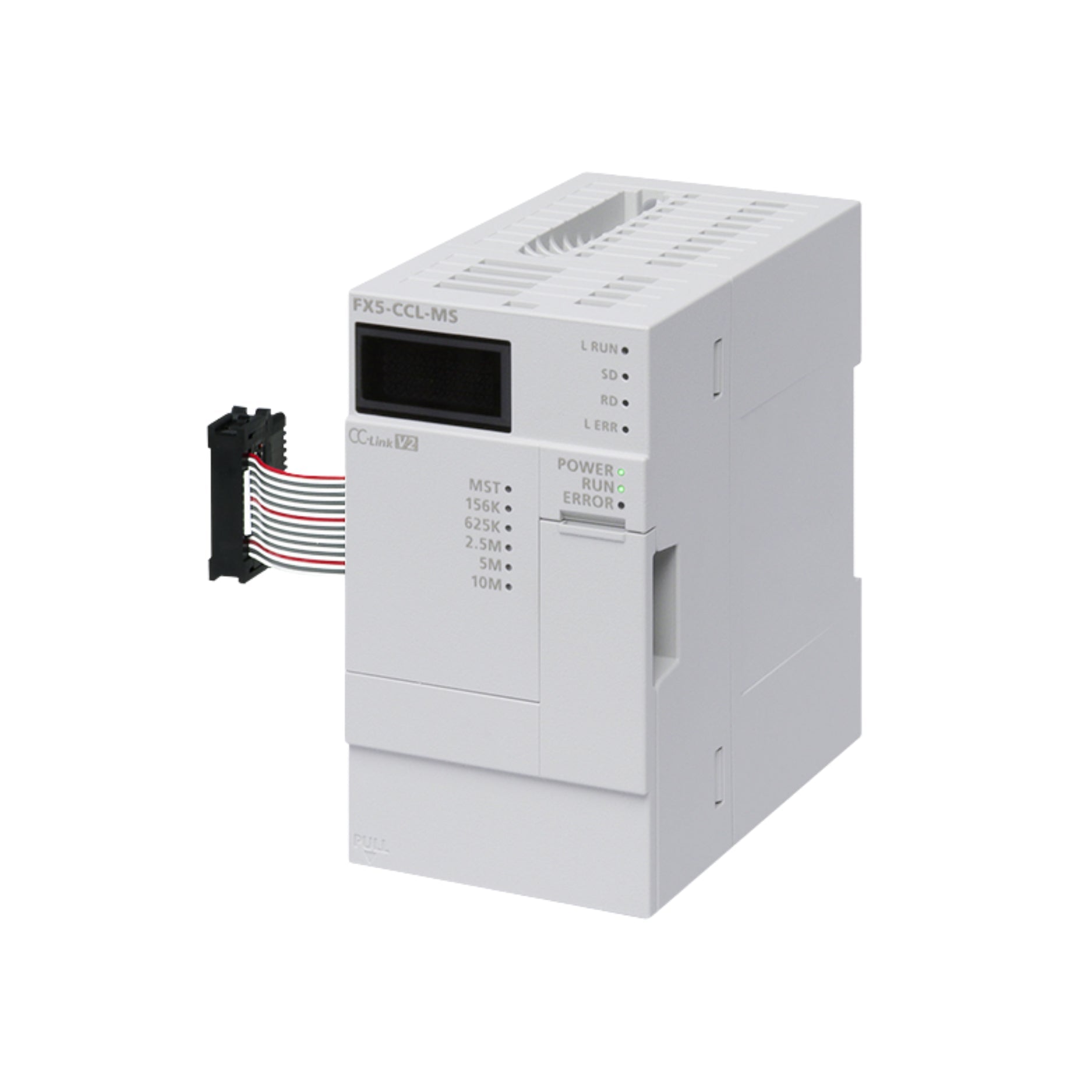

Mitsubishi FX5-CCL-MS

Mitsubishi FX5-CCL-MS | CC-Link Master Communication Module – FX5U/FX5UC Series

Overview

The Mitsubishi FX5-CCL-MS is a CC-Link master communication module designed for use with FX5U and FX5UC Series PLCs. It enables high-speed, deterministic communication with multiple CC-Link slave devices, allowing seamless integration into distributed control systems.

Key Features

• Communication Protocol: CC-Link (Master Station)

• Compatible PLCs: FX5U, FX5UC

• Transmission Speed: Up to 10 Mbps

• Max Connected Devices: Up to 64 slave stations

• Mounting Style: DIN rail or base unit mount

• Diagnostic LEDs: Status monitoring and troubleshooting

Technical Specifications

• Model: FX5-CCL-MS

• Series: MELSEC iQ-F (FX5U/FX5UC)

• Interface Type: CC-Link Master

• Transmission Distance: Up to 1200m (depending on speed and cable)

• Operating Temperature: 0°C to 55°C

• Power Supply: From main unit

• Dimensions: Compact module size

• Weight: Approx. 0.15 kg (0.33 lbs)

• Certifications: CE, UL

Applications

• Distributed I/O systems

• Industrial sensors and actuators

• Packaging and conveyor systems

• Networked automation control

• Manufacturing lines with multiple subsystems

Why Choose the FX5-CCL-MS?

• High-Speed Communication: Supports fast data exchange across CC-Link networks

• Flexible Integration: Easily connects with up to 64 slave devices

• Reliable Mitsubishi Performance: Ensures stable operation in industrial environments

• Compact & Scalable: Ideal for both small and complex automation systems

Order Now

The Mitsubishi FX5-CCL-MS communication module is in stock and available for fast global shipping.
