Mitsubishi FX5-C32EX/D

Mitsubishi FX5-C32EX/D

Overview

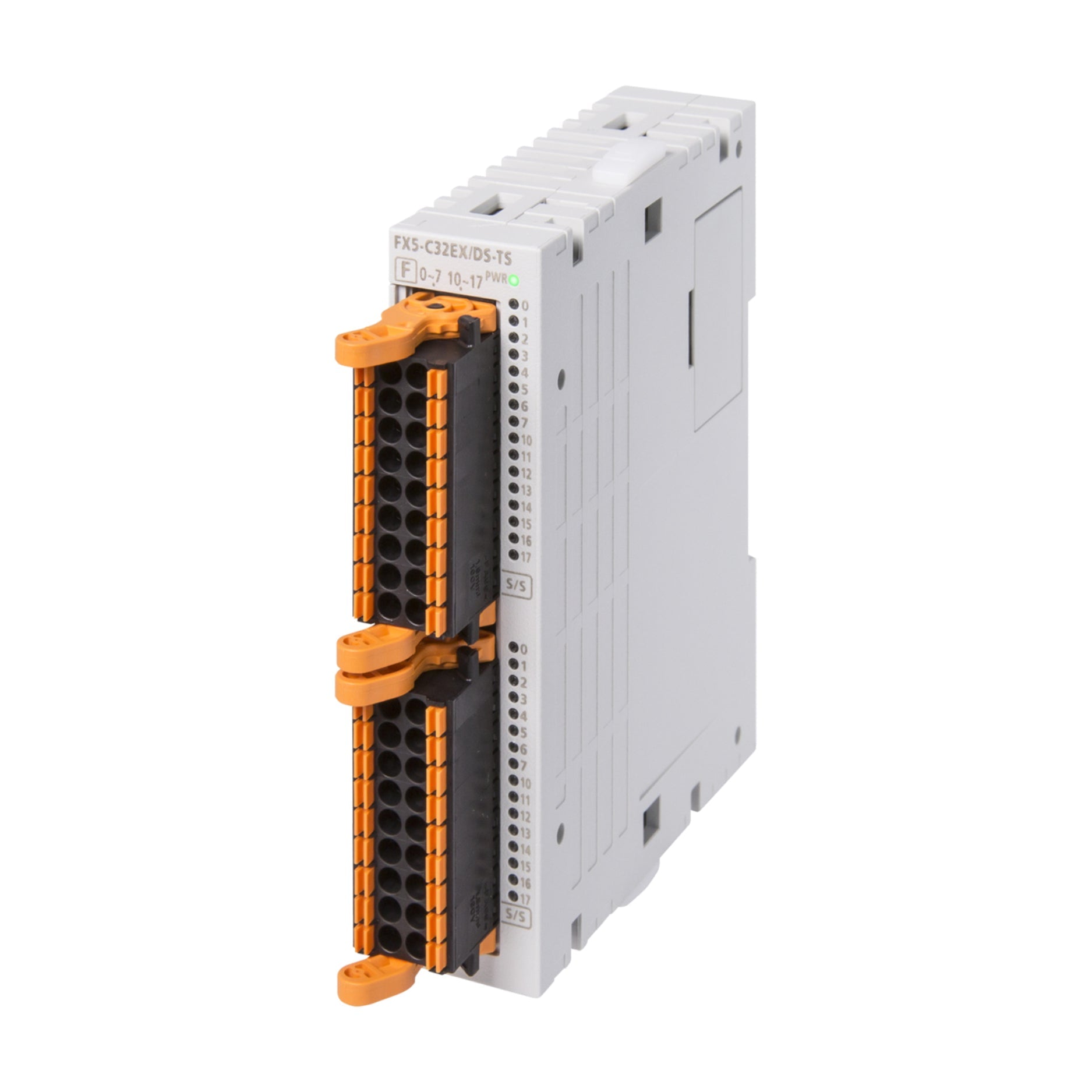

The Mitsubishi FX5-C32EX/D is a 32-point digital input module designed for the MELSEC FX5 series PLC. It supports 24V DC sink/source inputs and features DIN rail mounting, LED indicators, and compact design, making it ideal for monitoring multiple digital signals in industrial automation systems.

Key Features

• Series: FX5

• Input Points: 32 digital inputs

• Input Type: Sink/Source

• Rated Input Voltage: 24V DC

• Terminal Type: Screw terminal block

• Mounting Type: DIN rail or panel mount

• Status Indicators: Individual LED per input

• Isolation: Photocoupler isolation

• Wiring Compatibility: Standard industrial I/O

Technical Specifications

• Catalog Number: FX5-C32EX/D

• Rated Voltage: 24V DC

• Input Current: 7 mA (at 24V DC)

• Response Time: OFF → ON: ≤ 10 ms / ON → OFF: ≤ 10 ms

• Input Type: Sink or source selectable

• Input Resistance: Approx. 3.3 kΩ

• Insulation Resistance: ≥ 50 MΩ

• Ambient Temperature: 0°C to 55°C

• Storage Temperature: -25°C to 75°C

• Protection Rating: IP20

• Dimensions: Approx. 90 x 65 x 83 mm

• Weight: ≈ 0.25 kg

• Certifications: CE, UL, RoHS

Applications

• Digital sensor signal monitoring

• Switch and pushbutton inputs

• Control panel input expansion

• OEM machine automation

• General-purpose PLC input tasks

Why Choose the FX5-C32EX/D

• High-Density Inputs: 32 points in a single module

• Flexible Input Type: Supports sink and source configurations

• Compact Design: Saves space in control panels

• Reliable Performance: Fast response and LED status feedback

• Easy Installation: DIN rail or panel mounting options

Order Now

The Mitsubishi FX5-C32EX/D digital input module is available and ships worldwide.

Return to the Mitsubishi FX5 Series PLC collection for more options in this family.

Explore our full range of Mitsubishi MELSEC Programmable Controllers (PLC) to discover scalable automation solutions, from legacy systems to next-generation PLCs designed for high performance, connectivity, and flexibility.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
