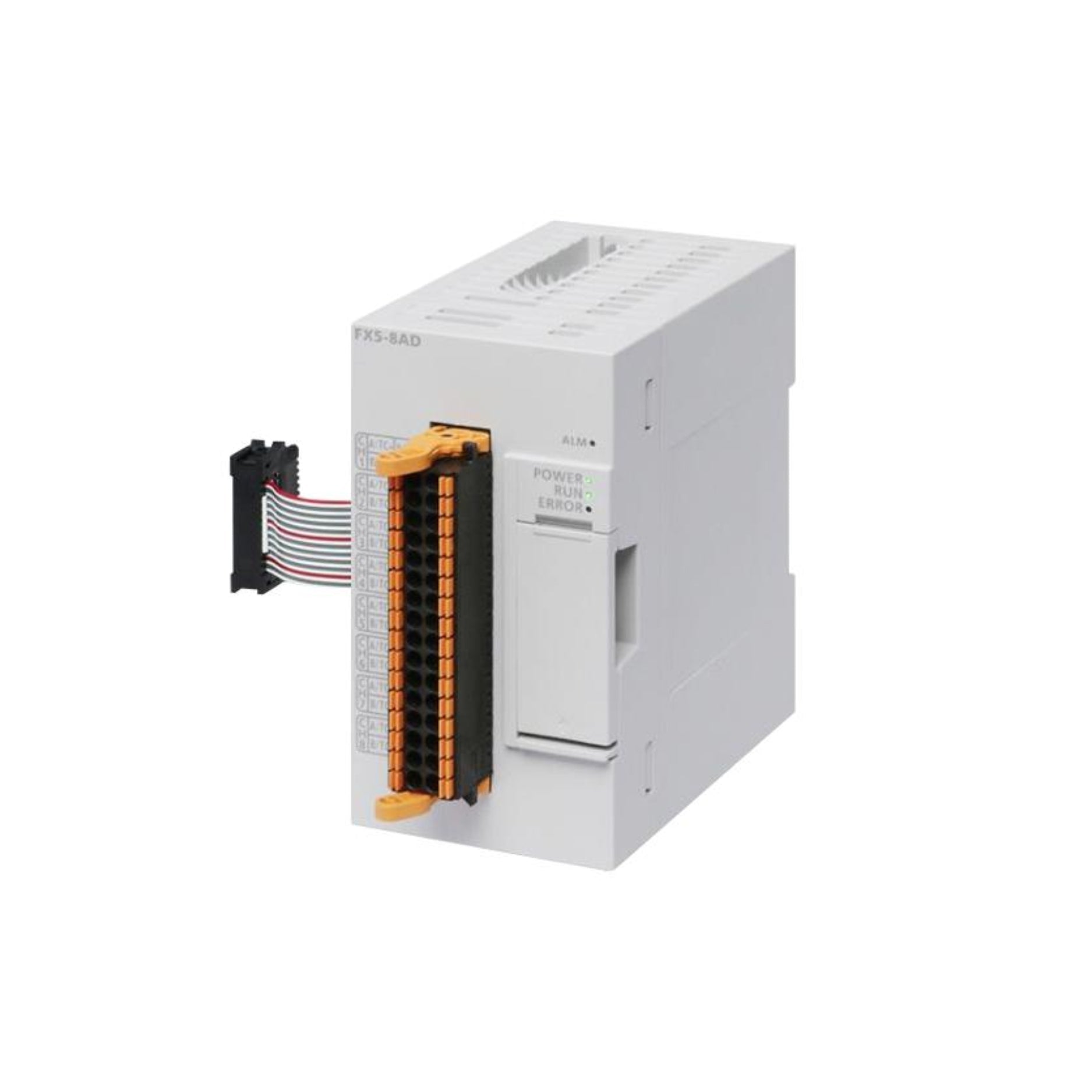

Mitsubishi FX5-8AD | 8-Channel Analog Input Module for FX5U/FX5UC PLC Systems

Overview

The Mitsubishi FX5-8AD is an 8-channel analog input module for MELSEC iQ-F FX5U and FX5UC PLCs, providing high-resolution analog signal acquisition with 16-bit accuracy. It supports both voltage (0–10V) and current (4–20mA) input types, making it ideal for advanced industrial measurement and control applications.

Key Features

• Number of Channels: 8 analog inputs

• Input Types: 0–10V DC, 4–20mA DC

• High Resolution: 16-bit analog-to-digital conversion

• Flexible Configuration: Selectable input mode per channel

• Compact DIN Rail Design: Easy installation

• LED Indicators: For real-time input status

• Fast Response: Reliable signal acquisition for dynamic systems

Technical Specifications

• Model: FX5-8AD

• Series Compatibility: FX5U, FX5UC

• Voltage Input Range: 0–10V DC (Input impedance: ≥ 200 kΩ)

• Current Input Range: 4–20mA DC (Input impedance: approx. 250 Ω)

• Conversion Speed: Approx. 0.7 ms per channel

• Operating Temperature: 0°C to 55°C

• Weight: Approx. 0.25 kg (0.55 lbs)

• Mounting: DIN rail

• Certifications: CE, UL

Applications

• Industrial process monitoring

• Analog sensor input (pressure, flow, level, temperature)

• Factory automation systems

• Equipment diagnostics

• Data acquisition and logging

Why Choose the FX5-8AD?

• Precision Measurement: 16-bit resolution ensures high accuracy

• Versatile Input Support: Works with both voltage and current signals

• Scalable Integration: Expands input capabilities of FX5U/FX5UC systems

• Compact and Reliable: Designed for modern industrial control environments

Order Now

The Mitsubishi FX5-8AD analog input module is in stock and ready to ship.

Return to the Mitsubishi FX5 Series PLC collection for more options in this family.

Explore our full range of Mitsubishi MELSEC Programmable Controllers (PLC) to discover scalable automation solutions, from legacy systems to next-generation PLCs designed for high performance, connectivity, and flexibility.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
