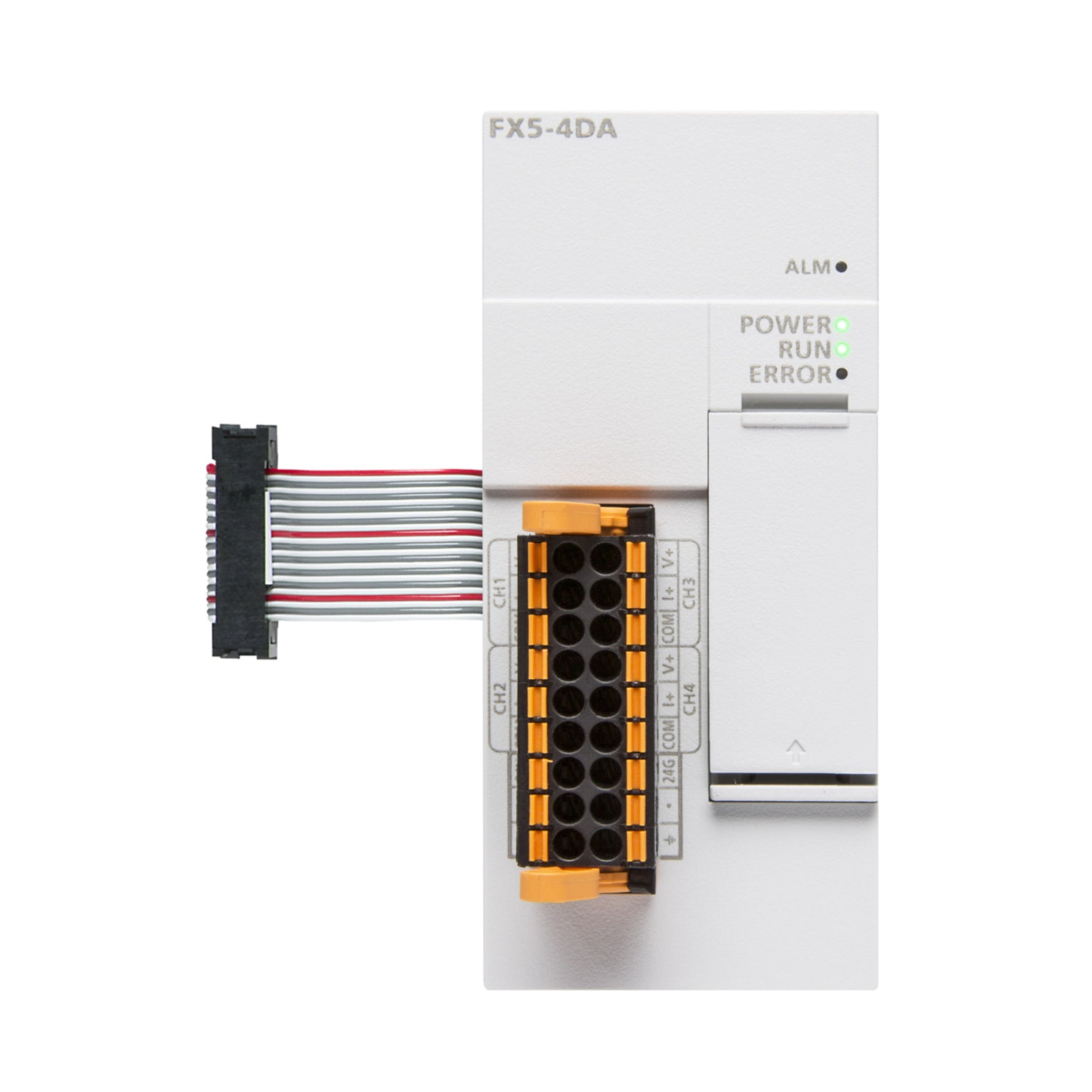

Mitsubishi FX5-4DA

Mitsubishi FX5-4DA | 4-Channel Analog Output Module for FX5U PLC Systems

Overview

The Mitsubishi FX5-4DA is a 4-channel analog output module designed for the MELSEC iQ-F FX5U Series PLCs. It provides precise analog voltage and current outputs for controlling actuators, drives, and other field devices. With 12-bit resolution, it enables smooth and accurate analog control in industrial automation applications.

Key Features

• Number of Channels: 4 analog outputs

• Output Signal Types: 0–10V DC, 4–20mA DC

• Resolution: 12-bit D/A conversion

• Channel Configuration: Voltage or current selectable per channel

• DIN Rail Mountable: For easy installation

• Status Indicators: Diagnostics for each channel

• Reliable Output Stability: Ensures consistent signal transmission

Technical Specifications

• Model: FX5-4DA

• Series: MELSEC iQ-F (FX5U)

• Voltage Output Range: 0–10V DC (Load ≥ 2kΩ)

• Current Output Range: 4–20mA DC (Load ≤ 500Ω)

• Conversion Time: Approx. 1 ms per channel

• Operating Temperature: 0°C to 55°C

• Power Supply: Provided by the PLC main unit

• Weight: Approx. 0.15 kg (0.33 lbs)

• Certifications: CE, UL

Applications

• Analog drive and VFD control

• Actuator positioning

• Industrial instrumentation output

• Process automation (temperature, pressure, flow control)

• Machine feedback systems

Why Choose the FX5-4DA?

• Precision Analog Control: Accurate 12-bit signal output

• Flexible Channel Selection: Each channel independently selectable

• Compact and Easy to Use: Seamless integration with FX5U Series

• Industrial Grade: Built for performance and durability

Order Now

The Mitsubishi FX5-4DA analog output module is available and ready for dispatch.
