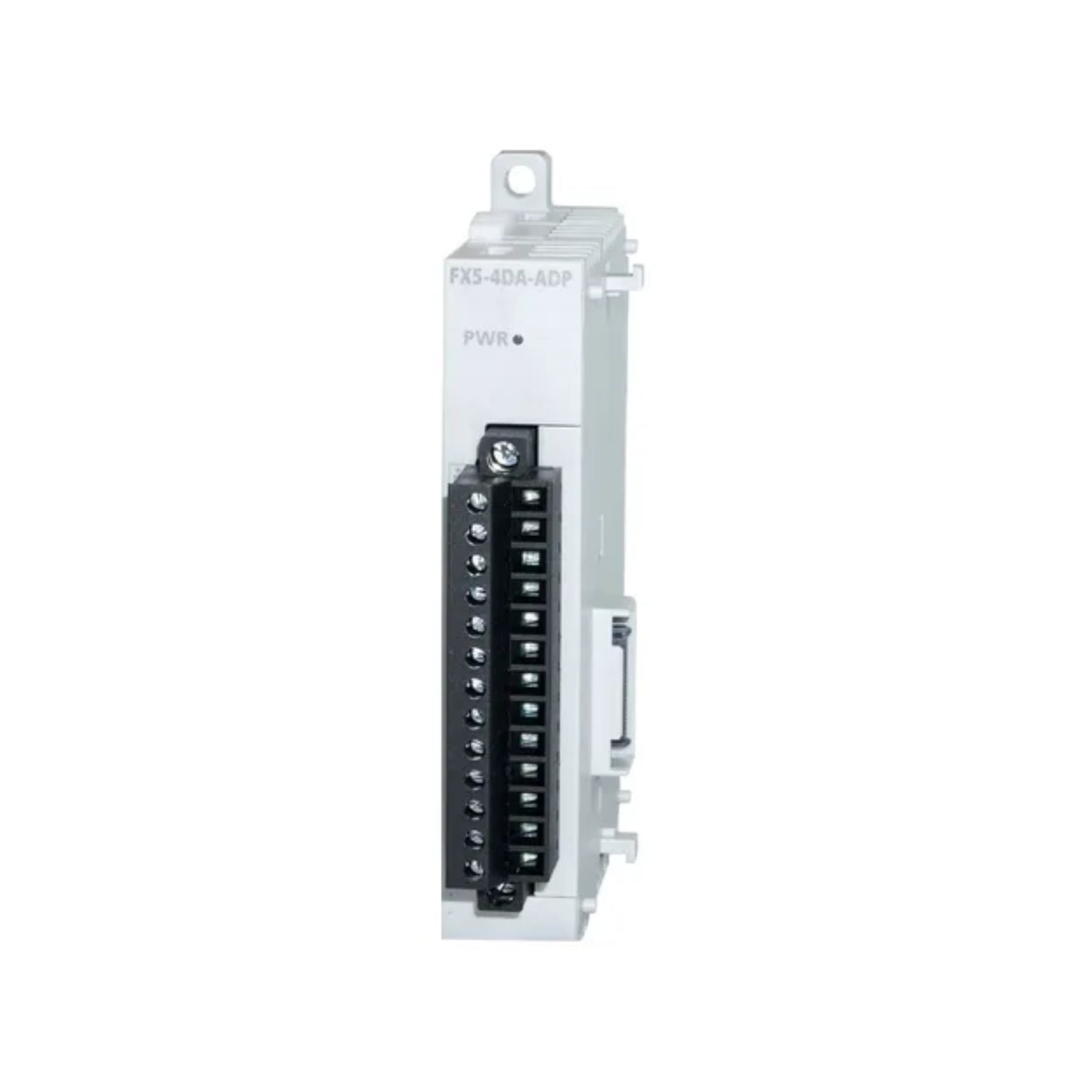

Mitsubishi FX5-4DA-ADP

Mitsubishi FX5-4DA-ADP

Overview

The Mitsubishi FX5-4DA-ADP is a 4-channel analog output adapter module designed for the MELSEC iQ-F FX5U and FX5UC series. It provides precise analog signal output in both voltage (0–10V) and current (4–20mA) formats, ideal for controlling actuators, drives, and other analog devices in industrial automation systems.

Key Features

• Number of Channels: 4 analog outputs

• Output Signal Types: 0–10V DC, 4–20mA DC

• Resolution: 12-bit digital-to-analog conversion

• Installation Type: ADP-type extension, DIN rail mount

• Per-Channel Configuration: Voltage or current selectable

• Compact Design: Saves panel space and integrates seamlessly

• Reliable Output: Stable signal generation for critical applications

Technical Specifications

• Model: FX5-4DA-ADP

• Series Compatibility: FX5U, FX5UC

• Voltage Output Range: 0–10V DC (Load ≥ 2kΩ)

• Current Output Range: 4–20mA DC (Load ≤ 500Ω)

• Conversion Time: Approx. 2 ms per channel

• Operating Temperature: 0°C to 55°C

• Mounting: DIN rail

• Weight: Approx. 0.2 kg (0.44 lbs)

• Certifications: CE, UL

Applications

• Variable speed drive control

• Valve and actuator modulation

• Process control systems

• Temperature and pressure regulation

• Analog signal transmission in automation

Why Choose the FX5-4DA-ADP?

• Flexible Signal Support: Each channel can output voltage or current

• Compact and Expandable: Designed specifically for FX5U/FX5UC PLCs

• Precision Output: 12-bit resolution ensures accurate analog control

• Cost-Effective Expansion: Add analog functionality without large hardware upgrades

Order Now

The Mitsubishi FX5-4DA-ADP analog output module is available and ready to ship.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
