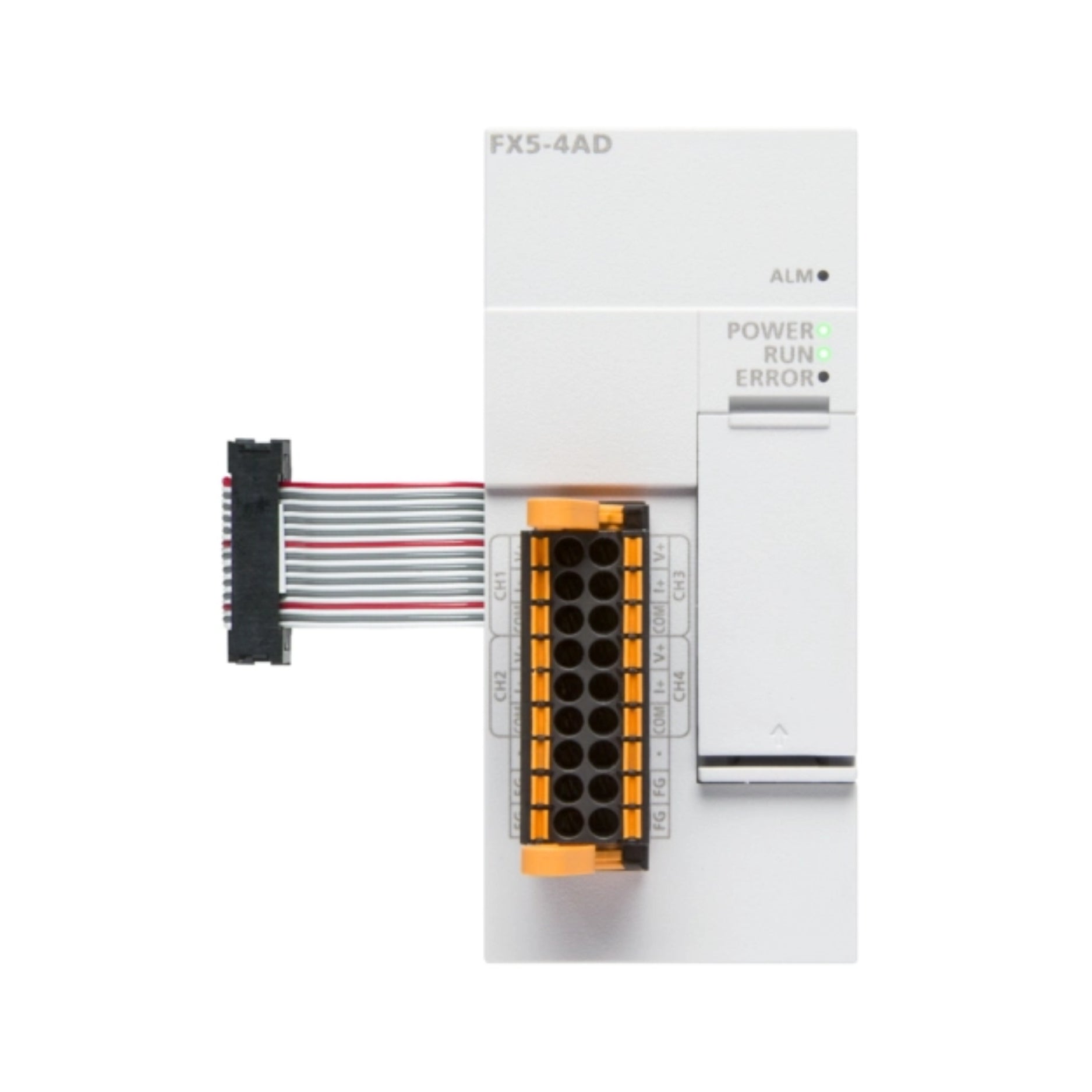

Mitsubishi FX5-4AD

Mitsubishi FX5-4AD | 4-Channel Analog Input Module for FX5U PLC Systems

Overview

The Mitsubishi FX5-4AD is a 4-channel analog input module for the MELSEC iQ-F FX5U Series, providing high-precision voltage and current input signals. Designed for flexible and accurate data acquisition, it enables seamless analog signal integration into your automation system.

Key Features

• Number of Channels: 4 analog inputs

• Input Ranges Supported:

  • Voltage: 0–10V, ±10V

  • Current: 4–20mA

• Resolution: 12-bit analog-to-digital conversion

• Selectable Input Type: Each channel can be configured independently

• DIN Rail Mountable: Easy integration into existing panels

• Diagnostic LED Indicators: For easy troubleshooting

• Stable Signal Acquisition: Reliable performance in industrial environments

Technical Specifications

• Model: FX5-4AD

• Series: MELSEC iQ-F (FX5U)

• Conversion Time: Approx. 1 ms per channel

• Power Supply: Via PLC main unit

• Operating Temperature: 0°C to 55°C

• Mounting Type: DIN rail

• Weight: Approx. 0.15 kg (0.33 lbs)

• Certifications: CE, UL

Applications

• Temperature and pressure monitoring

• Flow and level measurement

• Analog sensor integration

• Process automation

• Environmental control systems

Why Choose the FX5-4AD?

• Flexible Input Configuration: Supports a wide range of analog signals

• Compact and Easy to Install: Saves panel space

• Industrial Reliability: Consistent and accurate performance

• Perfect for FX5U PLCs: Seamless integration with iQ-F Series architecture

Order Now

The Mitsubishi FX5-4AD analog input module is in stock and ready to ship.

Return to the Mitsubishi FX5 Series PLC collection for more options in this family.

Explore our full range of Mitsubishi MELSEC Programmable Controllers (PLC) to discover scalable automation solutions, from legacy systems to next-generation PLCs designed for high performance, connectivity, and flexibility.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
