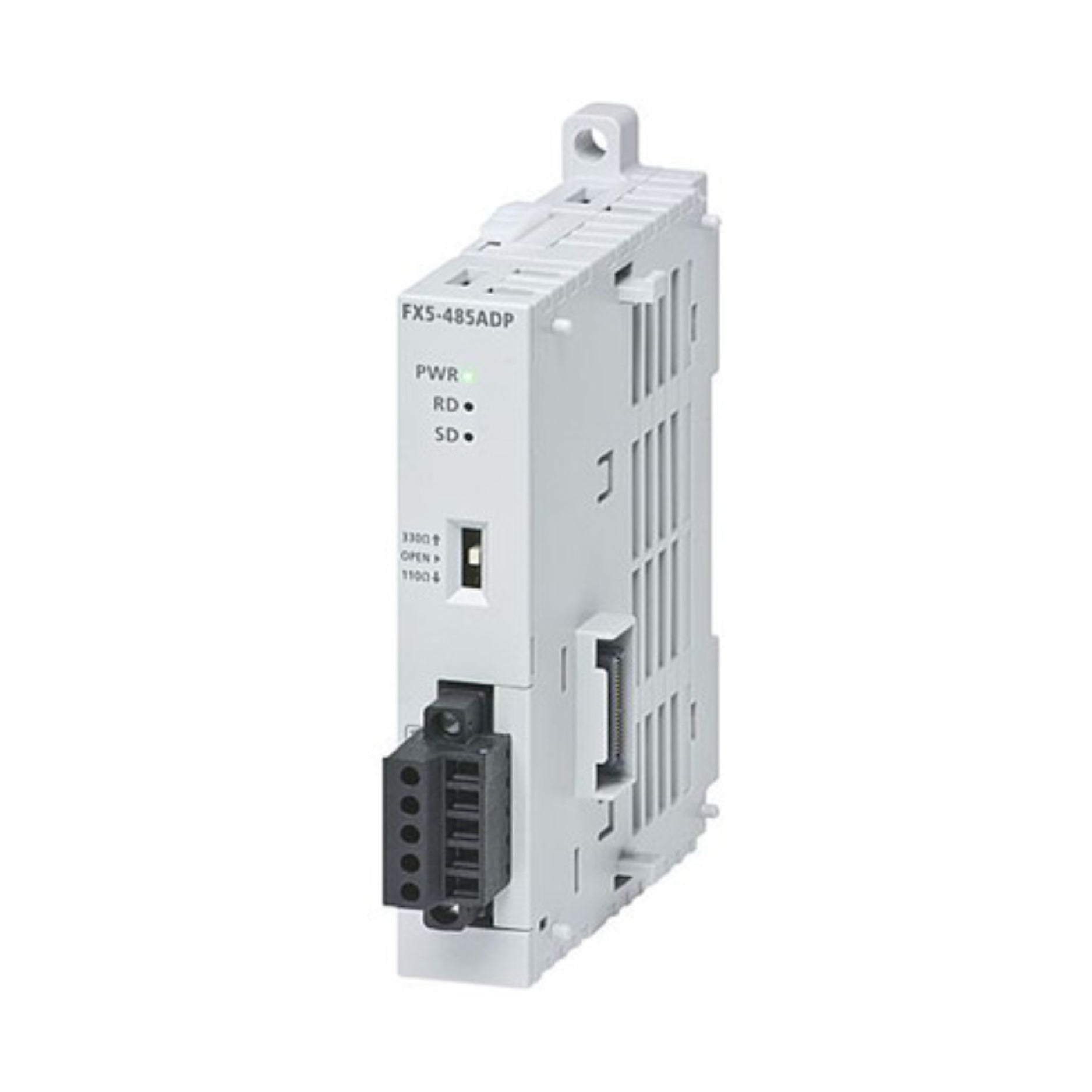

Mitsubishi FX5‑485ADP

mitsubishi FX5‑485ADP

Overview

The Mitsubishi FX5‑485ADP is a serial communication adapter designed for the MELSEC iQ‑F FX5 Series PLCs. This DIN-rail mounted unit provides RS‑485 communication capability, enabling the PLC to communicate with a variety of serial devices using Modbus RTU or non‑protocol communication. It’s ideal for connecting to HMI panels, frequency inverters, temperature controllers, and other industrial automation equipment.

Key Features

• RS‑485 Communication: Supports half-duplex serial data transmission

• Modbus RTU Support: Master or slave mode

• Non‑protocol Communication: For direct data exchange

• DIN Rail Mounting: Easy integration into control panels

• Multi‑Drop Capability: Connect multiple devices on a single bus

• Compact Design: Saves space in control cabinets

• Integrated into GX Works3 Software: Seamless configuration

Technical Specifications

• Model Number: FX5‑485ADP

• Compatible Series: MELSEC iQ‑F FX5

• Interface: RS‑485

• Protocols Supported: Modbus RTU (Master/Slave), Non‑protocol

• Connector Type: 5‑pin terminal block

• Communication Speed: Up to 115.2 kbps

• Max. Connected Slaves: Up to 32 devices (depending on topology)

• Power Supply: Supplied from base unit

• Mounting: DIN rail

• Dimensions: Approx. 50 x 90 x 70 mm

• Weight: Approx. 150 g

• Operating Temperature: 0 °C to 55 °C

• Storage Temperature: –25 °C to 75 °C

• Certifications: CE, UL, RoHS

Applications

• Modbus communication with inverters and drives

• RS‑485 interfacing with temperature controllers

• Data acquisition from industrial sensors

• Communication with HMIs and third-party PLCs

• Serial networking of distributed devices

Why Choose the FX5‑485ADP

• Simple Integration: Installs easily to FX5 base units

• Versatile Connectivity: Supports multiple serial protocols

• Reliable Communication: Ideal for industrial serial bus networks

• Compact & Efficient: Saves space while expanding communication

• Engineered by Mitsubishi: Designed for long-term automation needs

Order Now

The Mitsubishi FX5‑485ADP RS‑485 communication adapter is available and ships worldwide.
