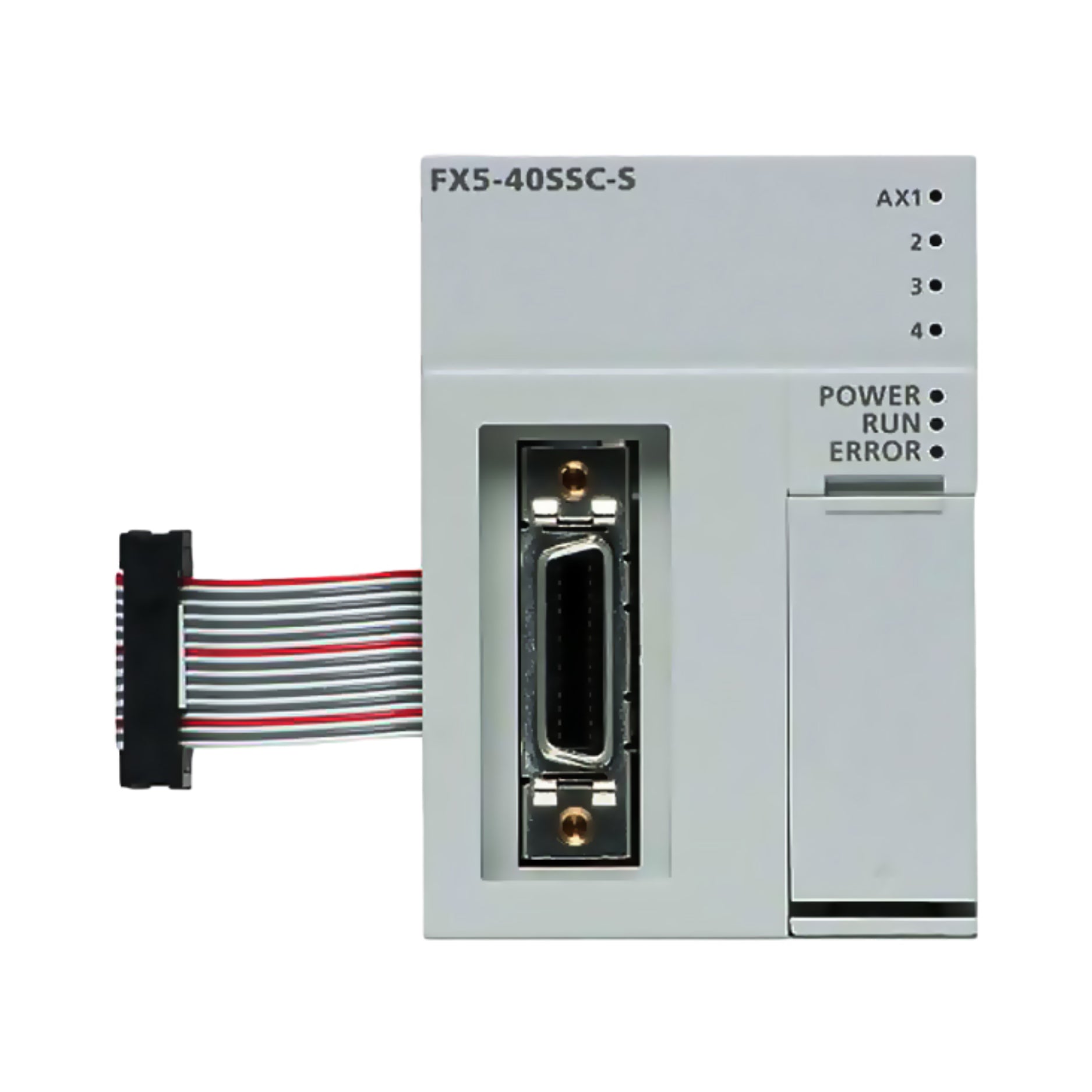

Mitsubishi FX5-40SSC-S | 4-Axis Simple Motion Module for MELSEC iQ-F Series

Overview

The Mitsubishi FX5-40SSC-S is a 4-axis Simple Motion Module designed for the MELSEC iQ-F Series PLCs. It enables high-speed, precise motion control through SSCNET III/H communication, supporting advanced functions like interpolation, cam control, and mark detection. Ideal for applications requiring synchronized multi-axis control, such as packaging, material handling, and cutting machines.

Key Features

• Control Axes: Up to 4 axes

• Communication: SSCNET III/H (150 Mbps full-duplex)

• Interpolation Functions:

  • Linear interpolation (up to 4 axes)

  • 2-axis circular interpolation

  • Continuous trajectory control

• Control Modes:

  • Positioning control

  • Speed control

  • Speed-torque control

  • Speed-position switching control

  • Fixed-pitch feed

  • Advanced synchronous control

  • Cam control

• Acceleration/Deceleration Processing:

  • Trapezoidal

  • S-curve

• Compensation Functions:

  • Backlash compensation

  • Electronic gear

  • Near pass function

• Mark Detection Function: Supports high-speed registration mark detection for precise cutting and positioning

• Cam Auto-Generation: Automatically generates cam data based on parameters set via GOT screen

• Memory: 600 positioning data per axis; parameters and data saved on flash ROM (batteryless backup)

• Home Position Return Methods: Multiple methods including proximity dog, count, data set, and scale home position signal detection

Technical Specifications

• Model: FX5-40SSC-S

• Series: MELSEC iQ-F

• Power Supply: 24V DC

• External Current Consumption: 0.25 A

• Dimensions (W × H × D): 50 × 90 × 83 mm

• Weight: Approximately 0.3 kg

• Operating Temperature: 0°C to 55°C

• Storage Temperature: -25°C to 75°C

• Certifications: UL, cUL, CE

• Environmental Compliance: RoHS compliant

Applications

• Packaging machines with rotary knife control

• Material handling systems requiring synchronized motion

• High-speed labeling and printing machines

• Cutting machines utilizing mark detection

• General industrial automation requiring precise multi-axis control

Why Choose the FX5-40SSC-S?

• High-Speed Communication: SSCNET III/H ensures rapid and reliable data transfer

• Advanced Motion Control: Supports complex motion profiles and synchronization

• User-Friendly Programming: Cam auto-generation and intuitive parameter settings via GX Works3

• Compact Design: Space-saving module suitable for various installation environments

• Reliable Performance: Built-in diagnostics and real-time monitoring enhance system reliability

Order Now

The Mitsubishi FX5-40SSC-S Simple Motion Module is available for global shipping.

Return to the Mitsubishi FX5 Series PLC collection for more options in this family.

Explore our full range of Mitsubishi MELSEC Programmable Controllers (PLC) to discover scalable automation solutions, from legacy systems to next-generation PLCs designed for high performance, connectivity, and flexibility.
