Mitsubishi FX5-232ADP

Mitsubishi FX5-232ADP

Overview

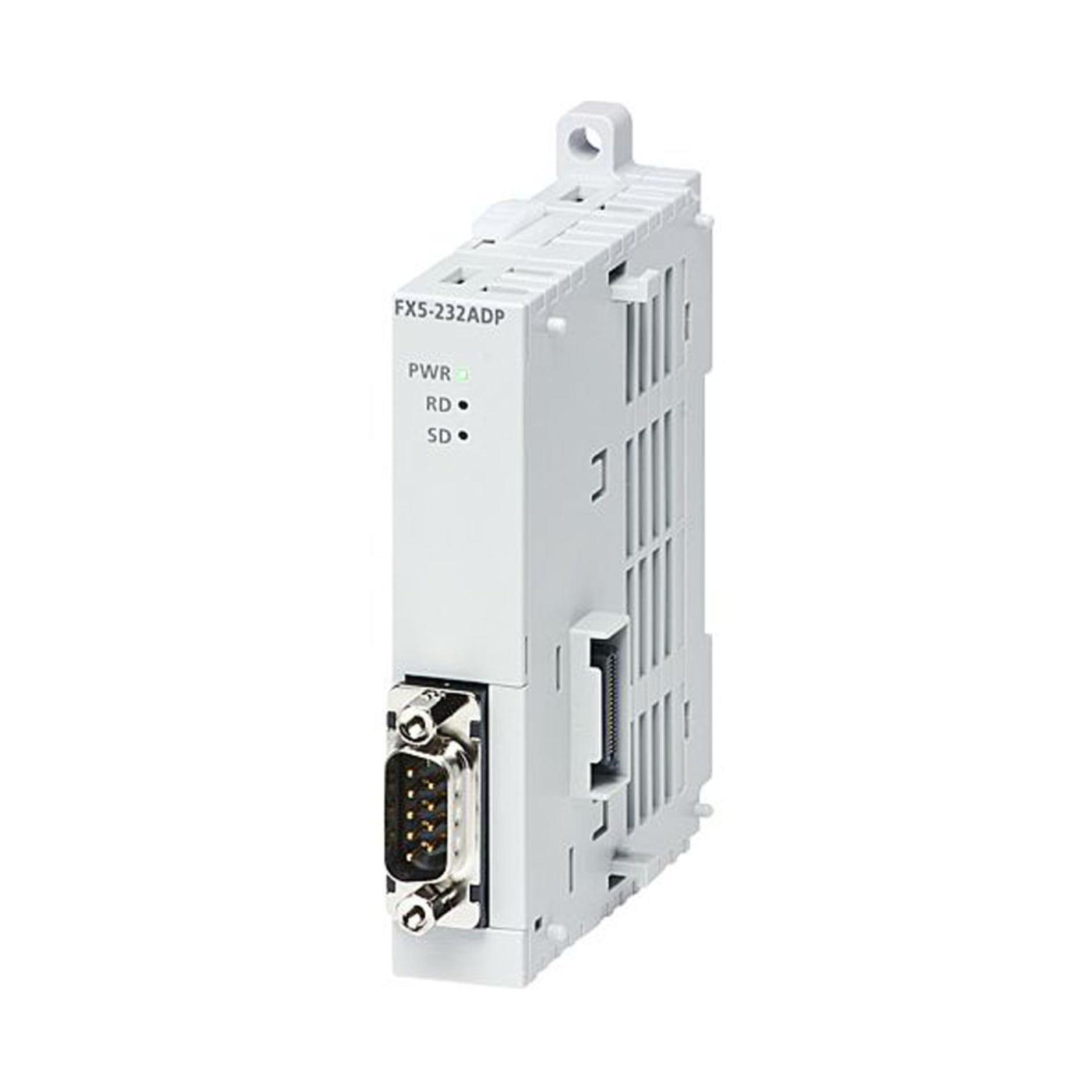

The Mitsubishi FX5-232ADP is an RS-232C communication adapter designed for the FX5U and FX5UC PLCs in the MELSEC iQ-F series. It enables reliable serial communication with HMIs, barcode readers, printers, and other RS-232C-compatible devices, expanding the connectivity of your automation system.

Key Features

• RS-232C serial communication port

• Supports FX5U and FX5UC PLC series

• Compact side-mountable module

• Baud rates up to 115.2 kbps

• Uses dedicated instructions for easy configuration

• One channel, full-duplex communication

• LED indicators for transmission and reception

• DIN-rail or panel-mounted as part of PLC assembly

Technical Specifications

• Model Number: FX5-232ADP

• Interface: RS-232C (D-sub 9-pin)

• Transmission Speed: 300–115,200 bps

• Communication Method: Full-duplex asynchronous

• Power Supply: Supplied from main unit

• Mounting: Direct side-mount on FX5U/FX5UC

• Dimensions: 20 mm × 90 mm × 83 mm (approx.)

• Operating Temp: 0 °C to +55 °C

• Compatibility: MELSEC iQ‑F series

• Certifications: CE, UL, cUL, RoHS

Applications

• Connecting HMI panels and barcode scanners

• Serial printing or data logging solutions

• Interfacing with legacy RS-232C devices

• Machine tool communication

• PLC-to-PLC serial data exchange

Why Choose the FX5-232ADP

• Expands serial connectivity for FX5U/FX5UC PLCs

• Easy to configure using built-in software tools

• Compact and seamless integration with iQ‑F systems

• Ideal for legacy device communication

• Built with Mitsubishi’s industrial-grade reliability

Order Now

The Mitsubishi FX5-232ADP communication adapter is available and ships worldwide.

Return to the Mitsubishi FX5 Series PLC collection for more options in this family.

Explore our full range of Mitsubishi MELSEC Programmable Controllers (PLC) to discover scalable automation solutions, from legacy systems to next-generation PLCs designed for high performance, connectivity, and flexibility.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
