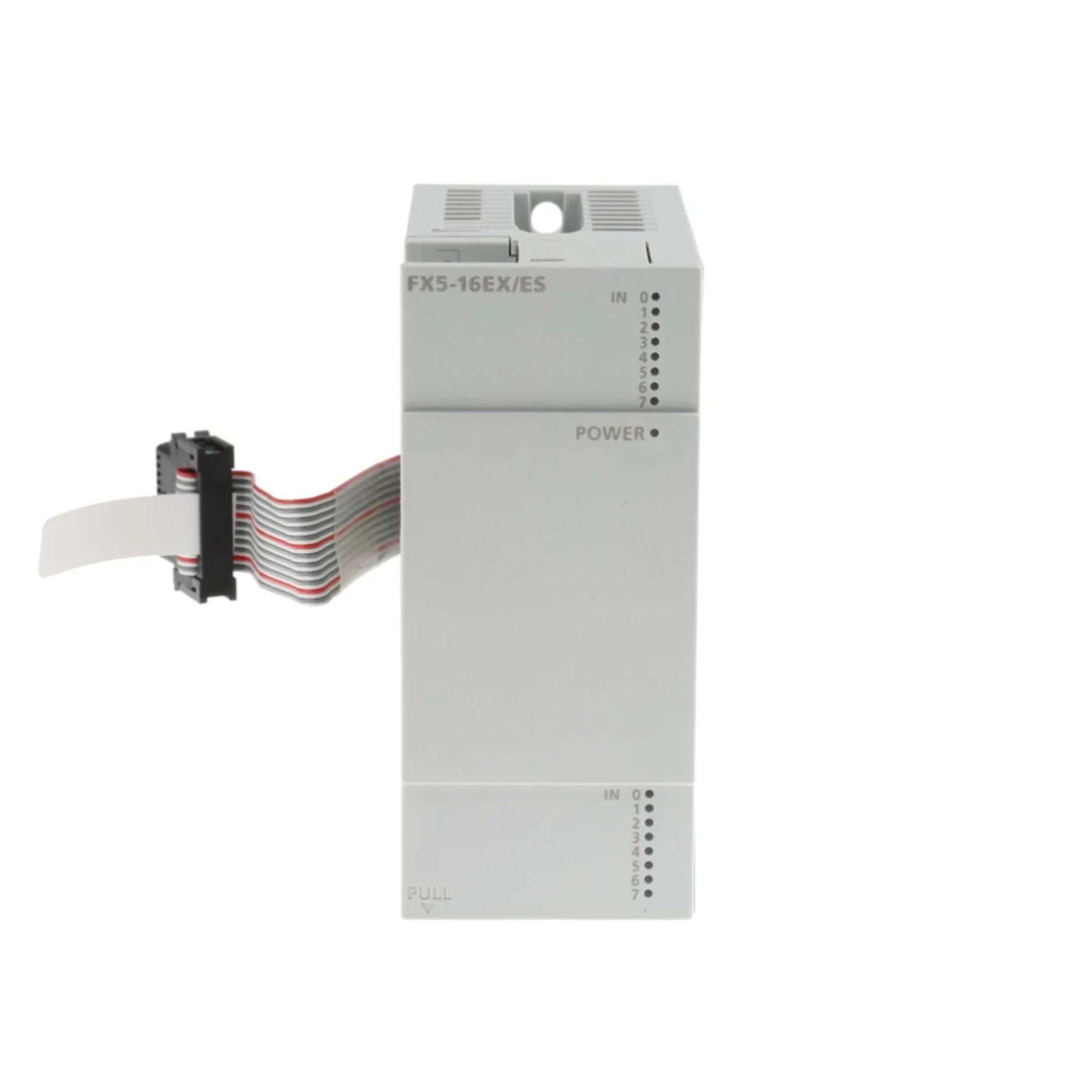

Mitsubishi FX5-16EX/ES

Mitsubishi FX5-16EX/ES | 16-Point Digital Input Module for FX5U/FX5UC PLCs

Overview

The Mitsubishi FX5-16EX/ES is a 16-point digital input expansion module designed for use with MELSEC iQ-F FX5U and FX5UC PLC series. Operating on 24V DC, it supports both sink and source input types, offering flexible integration for various industrial input devices. Its compact, easy-to-install design includes a built-in terminal block for quick wiring.

Key Features

• Number of Inputs: 16 digital inputs

• Input Voltage: 24V DC

• Input Type: Sink/Source selectable

• Terminal Type: Screw terminal block

• LED Indicators: For input signal status

• DIN Rail Mountable: Quick and secure installation

• Fast Response Time: Ensures accurate real-time data collection

Technical Specifications

• Model: FX5-16EX/ES

• Series Compatibility: FX5U, FX5UC

• Input Signal Voltage Range: 20.4–26.4V DC

• Input Current: Approx. 5 mA per point

• Common Terminal: 4 points per common

• Operating Temperature: 0°C to 55°C

• Weight: Approx. 0.25 kg (0.55 lbs)

• Mounting Method: DIN rail

• Certifications: CE, UL

Applications

• Sensor input monitoring

• Machine status feedback

• Switch and pushbutton detection

• Factory automation systems

• Process and safety interlocks

Why Choose the FX5-16EX/ES?

• Flexible I/O Options: Sink/source capability suits a variety of devices

• High Compatibility: Seamless integration with FX5 PLC platforms

• Compact and Efficient: Ideal for expanding input capacity in tight spaces

• Built-In Indicators: Simplify diagnostics and maintenance

Order Now

The Mitsubishi FX5-16EX/ES input module is ready for fast shipping.
