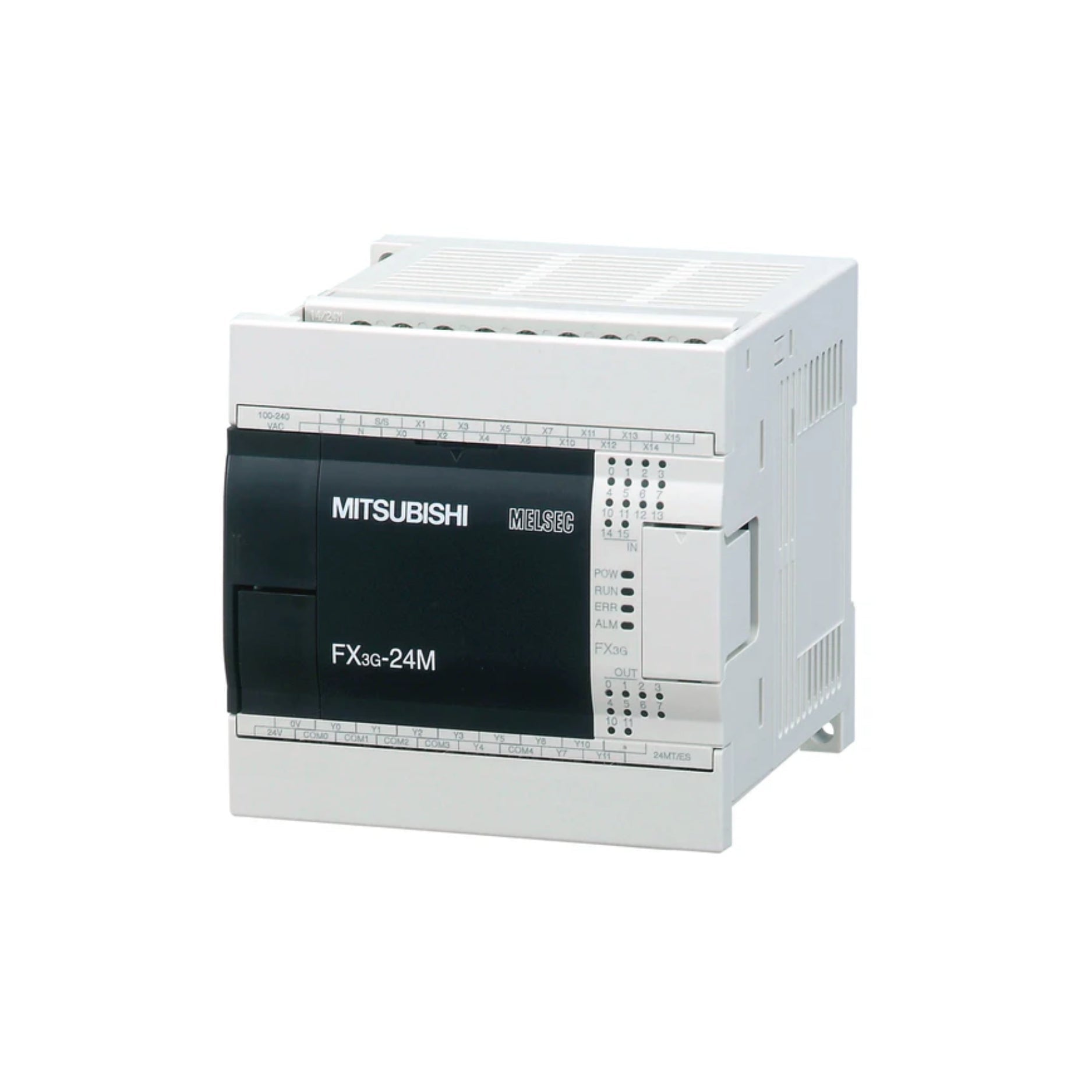

Mitsubishi FX3G‑24MR‑DS

Mitsubishi FX3G-24MR‑DS

Overview

The Mitsubishi FX3G-24MR‑DS is a versatile PLC main unit from the FX3G series (iQ-F family), offering 24 I/O points (12 inputs and 12 relay outputs) powered by 24 V DC. It supports small- to mid-sized automation systems with enhanced processing speed, built-in high-speed counters, and expandability via FX3G modules.

Key Features

• Total I/O: 24 points (12 inputs, 12 relay outputs)

• Output Type: Relay (2 A per point max)

• Power Supply: 24 V DC

• High-speed instruction execution and counters

• Expandable with FX3G/FX3U I/O and special function modules

• Built-in real-time clock

• Compact design with front USB port

• Compatible with GX Works3 and GX Developer

Technical Specifications

• Catalog Number: FX3G‑24MR‑DS

• Inputs: 12 digital (sink/source selectable)

• Outputs: 12 relay contacts (2 A per point max)

• Input Voltage: 24 V DC ±10%

• Program Capacity: 32,000 steps

• Data Registers: 32,000 words

• Communication Interfaces: USB Device, RS-485 (via adapter), Ethernet (module)

• Mounting: DIN rail or panel

• Dimensions: 150 × 90 × 86 mm (W×H×D)

• Protection Class: IP10 (open type)

• Operating Temperature: 0 °C to +55 °C

• Certifications: CE, UL, cUL, RoHS

Applications

• Machine automation and control panels

• Conveyor systems and sensor integration

• Packaging, labeling, and assembly machinery

• OEM systems and small manufacturing lines

• Flexible expansion in modular control setups

Why Choose the FX3G‑24MR‑DS

• Combines compact design with robust relay output performance

• Fast execution with high-speed timers and counters

• Flexible expansion and network integration

• USB and optional Ethernet support for modern connectivity

• Mitsubishi reliability in iQ‑F performance class

Order Now

The Mitsubishi FX3G-24MR‑DS PLC is available and ships worldwide.

Return to the Mitsubishi FX3 Series PLC for more high-performance compact controllers, including FX3U, FX3UC, FX3G, and FX3S models.

Explore the full range of Mitsubishi MELSEC Programmable Controllers (PLC) to discover scalable automation solutions designed for machine control, motion, networking, and industrial applications.
