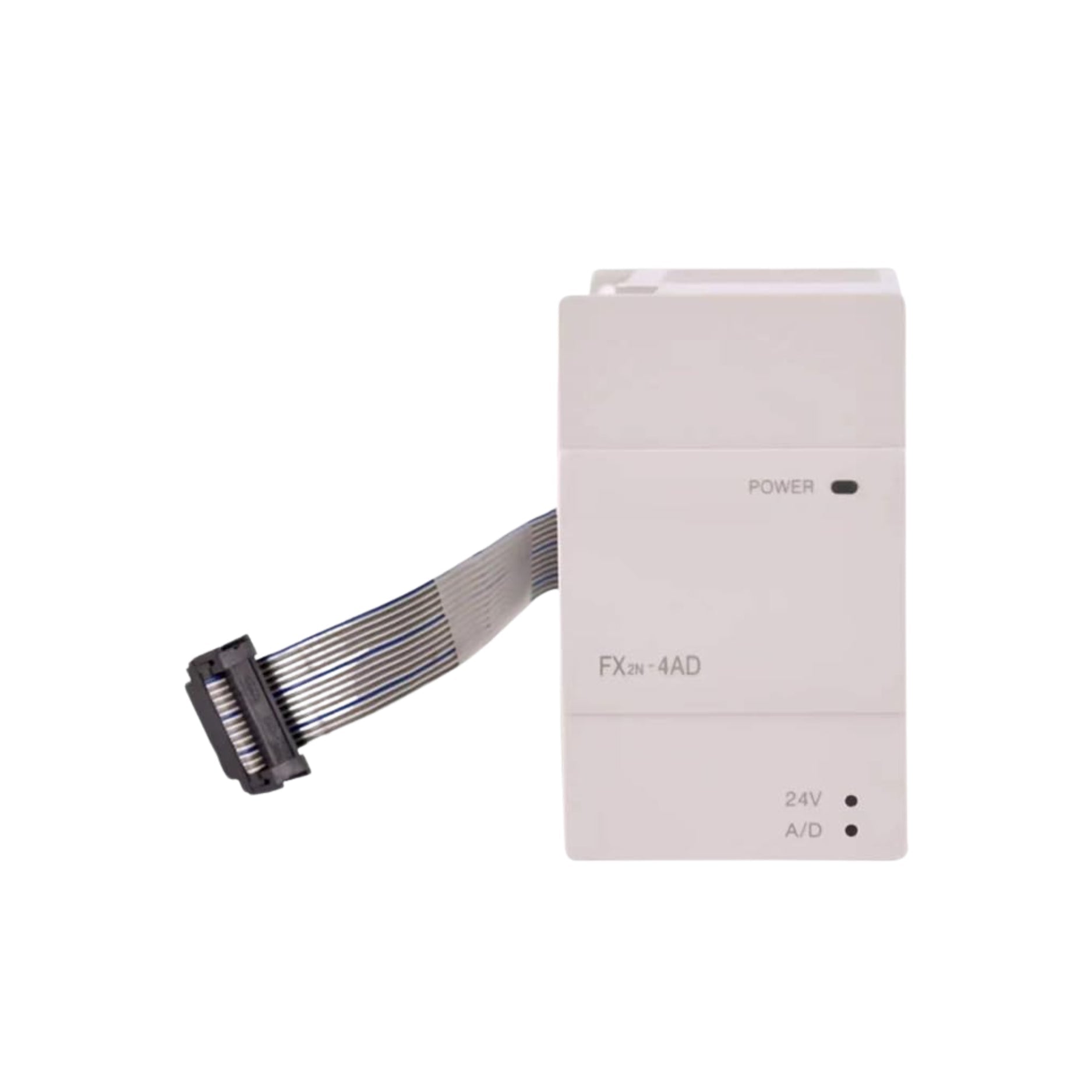

Mitsubishi FX2N-4AD

Mitsubishi FX2N-4AD | 4-Channel Analog Input Module for FX2N PLC Systems

Overview

The Mitsubishi FX2N-4AD is a 4-channel analog input module designed for FX2N Series PLCs, offering precise data acquisition with 12-bit resolution. It supports both voltage and current inputs, making it suitable for monitoring a wide range of analog devices in industrial control systems.

Key Features

• Number of Channels: 4 analog inputs

• Input Signal Types: 0–10V DC, 4–20mA DC

• Resolution: 12-bit analog-to-digital conversion

• Flexible Input Modes: Voltage or current selectable per channel

• Connection Type: Screw terminals

• Status Indicators: LED indicators for channel status

• Compact DIN Rail Mounting: Easy integration into control panels

Technical Specifications

• Model: FX2N-4AD

• Series Compatibility: FX2N

• Input Voltage Range: 0–10V DC (Input impedance: 200kΩ)

• Input Current Range: 4–20mA DC (Input impedance: 250Ω)

• Conversion Speed: Approx. 2 ms per channel

• Operating Temperature: 0°C to 55°C

• Weight: Approx. 0.2 kg (0.44 lbs)

• Certifications: CE, UL

• Power Supply: Supplied via base unit

Applications

• Temperature sensor input

• Flow meter data logging

• Pressure and level measurement

• Analog process monitoring

• Environmental control systems

Why Choose the FX2N-4AD?

• Accurate Signal Capture: High-resolution analog-to-digital conversion

• Versatile Input Range: Accepts voltage and current signals

• Reliable and Compact: Designed for industrial use in tight spaces

• Seamless FX2N Integration: Fully compatible with Mitsubishi FX2N PLC platforms

Order Now

The Mitsubishi FX2N-4AD analog input module is available and ready to ship.

Return to the Mitsubishi FX2N / FX2NC Series PLC for more options in this family.

Explore the complete range of Mitsubishi MELSEC Programmable Controllers (PLC) to discover advanced automation solutions designed for reliability, flexibility, and scalability.
