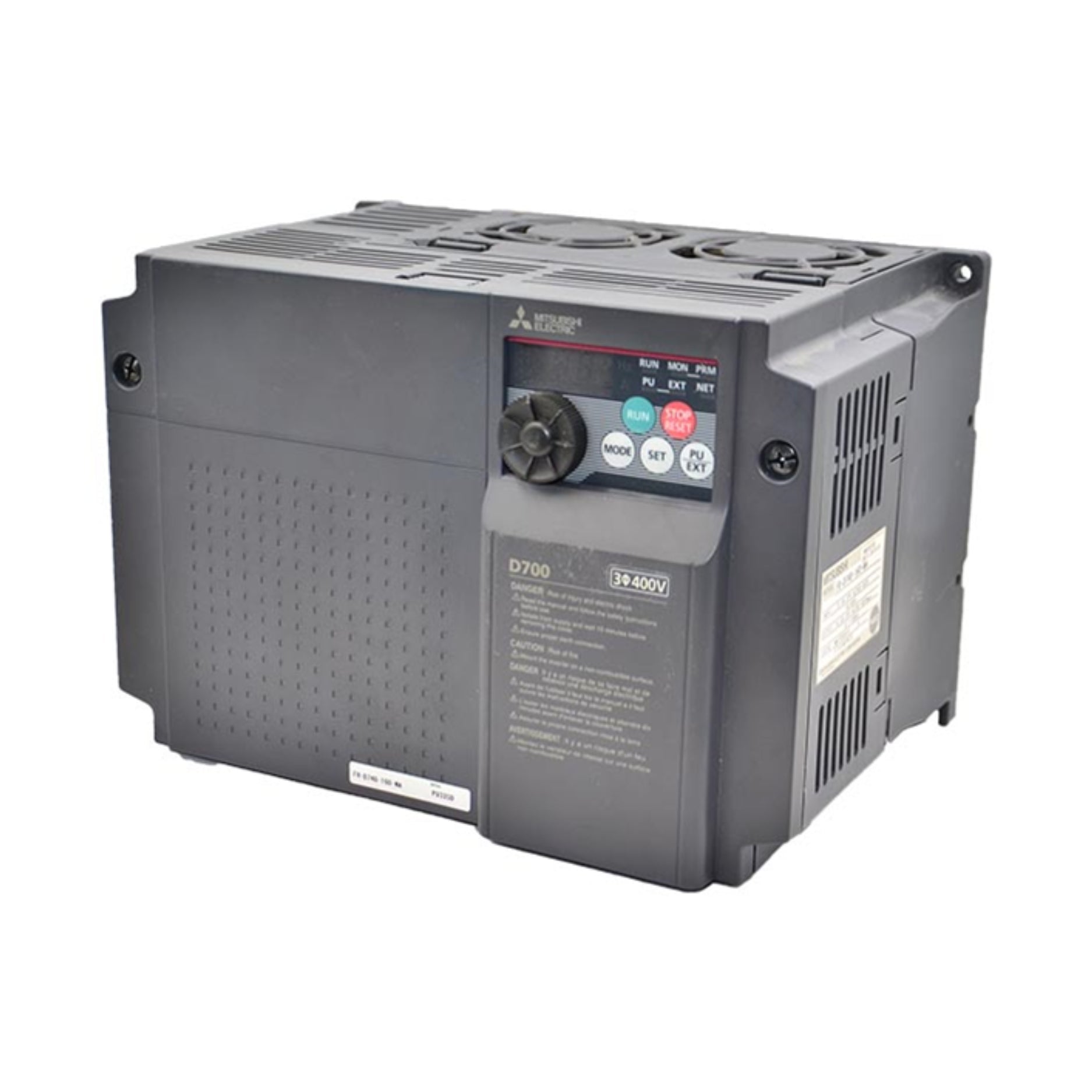

Mitsubishi FR-D740-160-NA

Mitsubishi FR-D740-160-NA

Overview

The Mitsubishi FR-D740-160-NA is a compact variable frequency drive (VFD) from the FR-D700 series, designed to deliver precise and energy-efficient motor control in general-purpose applications. With a 20 HP capacity and 240 V 3-phase input, it offers user-friendly setup, robust performance, and dependable operation.

Key Features

• Rated Power: 20 HP (15 kW)

• Input Voltage: 3-phase 240 V

• Output Frequency: 0.2–400 Hz

• Compact size for control panels

• Integrated braking transistor

• Built-in RS-485 (Modbus RTU) communication

• Soft-PWM for low-noise motor operation

• Built-in PID control and energy-saving functions

• Easy setup with digital dial and display panel

Technical Specifications

• Part Number: FR-D740-160-NA

• Manufacturer: Mitsubishi Electric

• Series: FR-D700

• Rated Capacity: 20 HP (15 kW)

• Input Voltage: 3-phase 200–240 V ±10%

• Output Voltage: 3-phase 200–240 V

• Output Current: 66 A

• Frequency Range: 0.2–400 Hz

• Control Method: V/F and slip compensation

• Overload Capacity: 150% for 60 seconds

• Protection: IP20

• Operating Temp: –10 °C to +50 °C

• Cooling Method: Fan cooled

• Certifications: UL, cUL, CE

Applications

• Fans and blowers

• Pumps and compressors

• Conveyor systems

• General industrial machinery

• HVAC and small automation systems

Why Choose the FR-D740-160-NA

• Efficient and compact motor control solution

• Built-in features reduce external component needs

• Reliable Mitsubishi quality with global support

• Simple installation and easy parameter setting

• Proven performance across diverse industries

Order Now

The Mitsubishi FR-D740-160-NA VFD inverter is available and ships worldwide.

Discover more options in the Mitsubishi FR Series Frequency Inverters (FREQROL category, designed for precision motor control, energy efficiency, and industrial automation.

For additional solutions, explore the full range of Mitsubishi products.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
